| Specim IQ User Manual | 20
4.
Press the WHITE REFERENCE button
button to select the white reference method.
5.
Select Simultaneous.

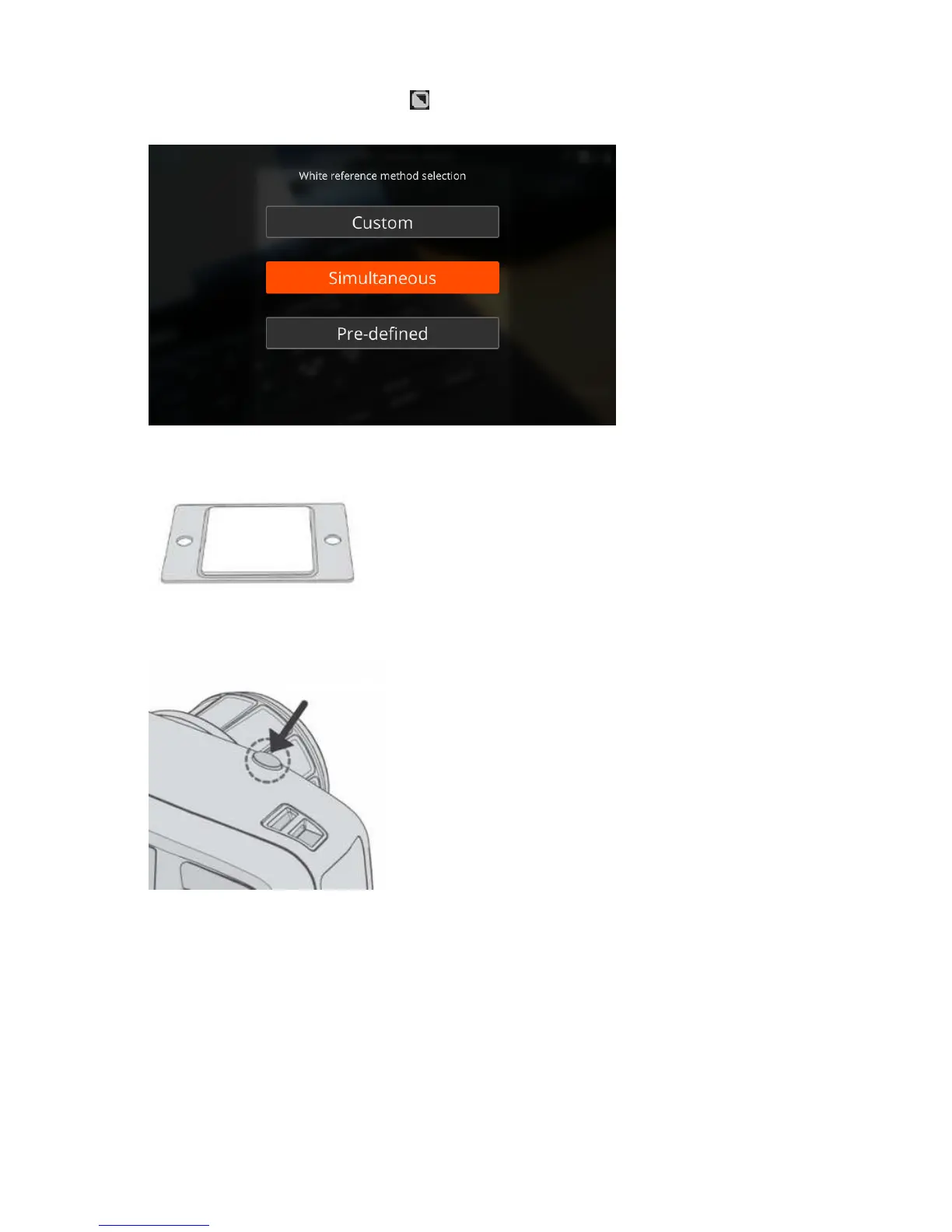

Figure 19: Selecting the White Reference Method
6.
Place the white reference panel next to the target.
Figure 20: White Reference Panel
7.
Press the SHUTTER button halfway.
Figure 21: Shutter Button
8.
Make the data recording settings.
See
Making Data Recording Settings on page 32.
9.
When done, press the SHUTTER button completely.
The camera starts the spectral camera, measures a dark frame, and begins scanning. A progress bar is shown on
the screen.
