SP7-10, SP7-11, SP7-12 and SP7-20, SP7-21, SP7-22 Parameterization

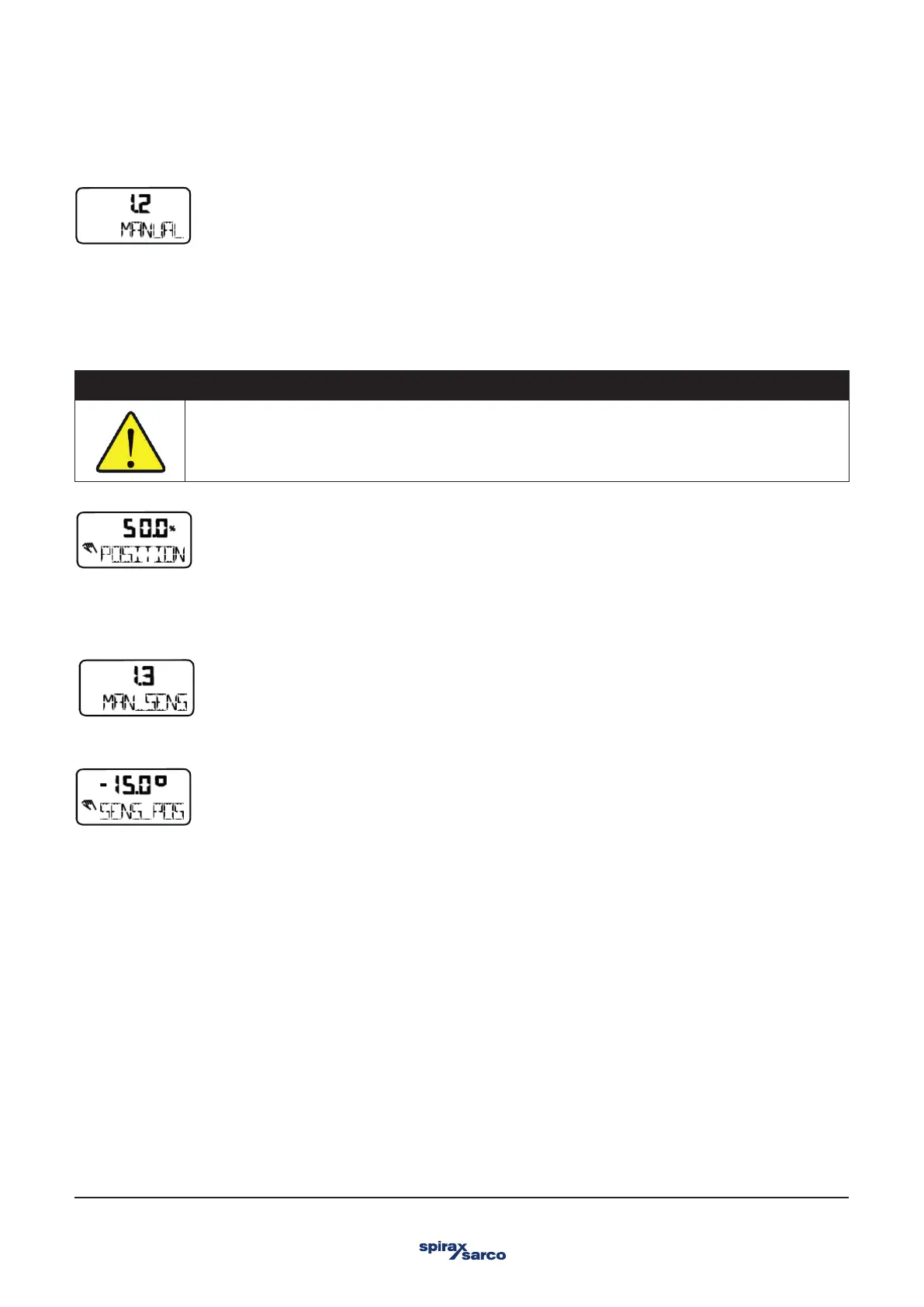

2.6.3 Operating mode 1.2: Manual adjustment in the stroke range
The valve is adjusted manually using the direction buttons ARROW UP and ARROW DOWN within the stroke range.
1. Press and hold the button for the desired direction.
2. To activate the high speed mode in the manual mode, press the second arrow button.
CAUTION
If air escapes due to a leakage, the position will not be readjusted.
Configured stroke limit positions and stroke times are not effective in manual mode.
In this operating mode the valve position is indicated as a percentage (%) of the stroke range.
2.6.4 Operating mode 1.3: Manual adjustment in the sensor range
See operating mode 1.2
