4.3. Overview
Figure 2.
1
11
10
10.1; 10.2
9
20
20.1; 20.2
2
3
5; 22
14
16
12
1.2
2
15
13
18
2
3
17
1.1
19
11

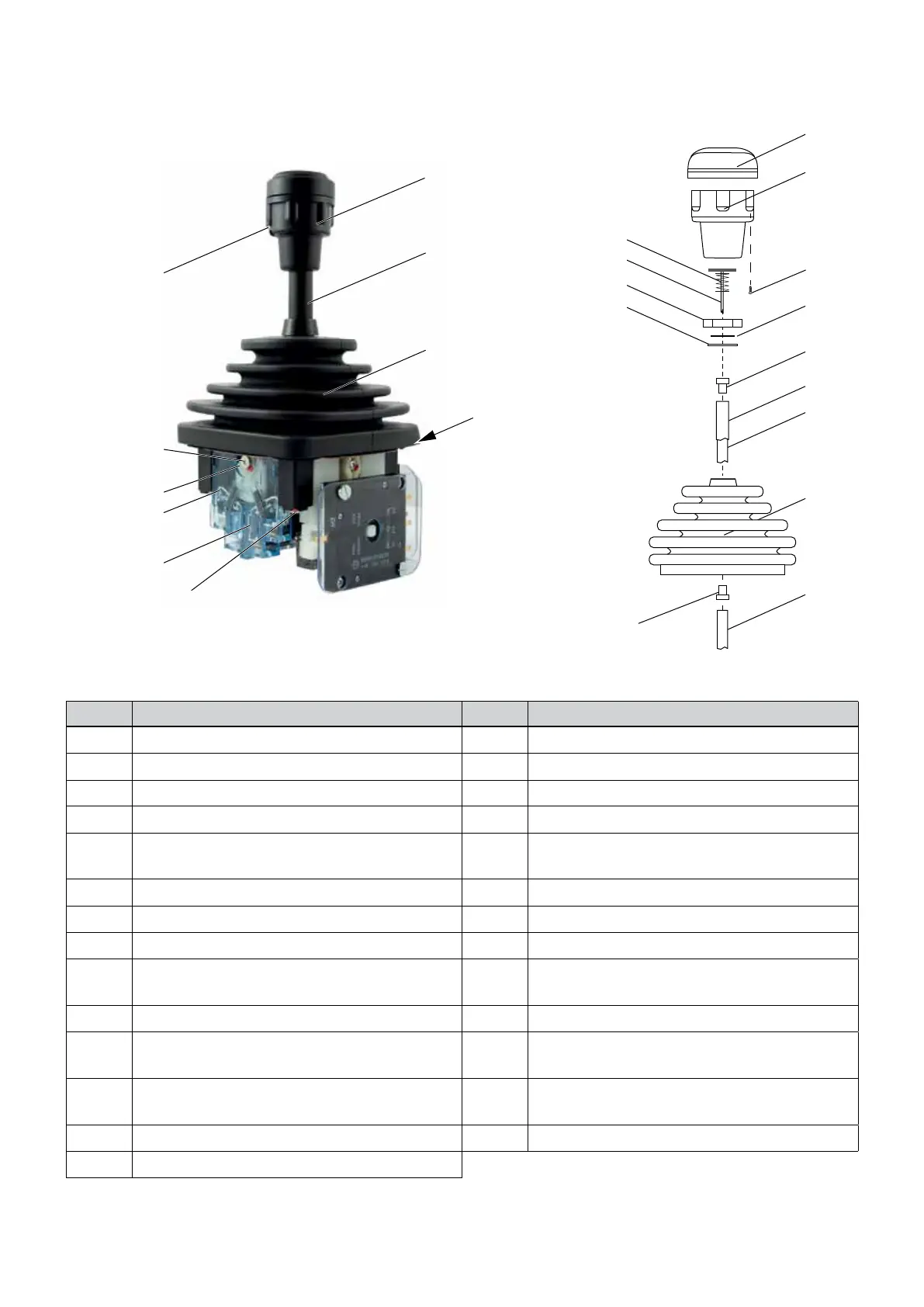

Joystick VCS0 – overview
Item Name Item Name
1 Knob* ; top part 12 Insulating sleeve
1.1 Knob* ; bottom part 13 Bush
2 Stick 14 Nut
3 Rubber boot 15 Locking washer
4 Front plate (not shown, only for variants
with front plate)
16 Perforated washer
5 Seal 17 Bush
6 Escutcheon holder 18 Flexible shaft
7 Film (not shown, only for variants with lm) 19 Spring**
8 Escutcheon (not shown, only for variants
with escutcheon)
20 Cam disk
9 Drive block 20.1 Cam disk screw
10 Double contact element 20.2 Cam disk washer
(not shown)
10.1 Contact element fastening screws 21 Boot holder escutcheon (not shown, only
for variants with boot holder escutcheon)
10.2 Contact element clip (not shown) 22 Boot holder
11 Knob locking screw*; top part
* Standard knob G41
** On devices with deadman's function
