Spohn & Burkhardt VCS0 - Dimensional Drawings

61
Spohn + Burkhardt
4.5. Dimension drawings
For other variants, see Appendix A. "Examples for variants and available ttings", page 89.
4.5.1. Joystick VCS0 – basic version

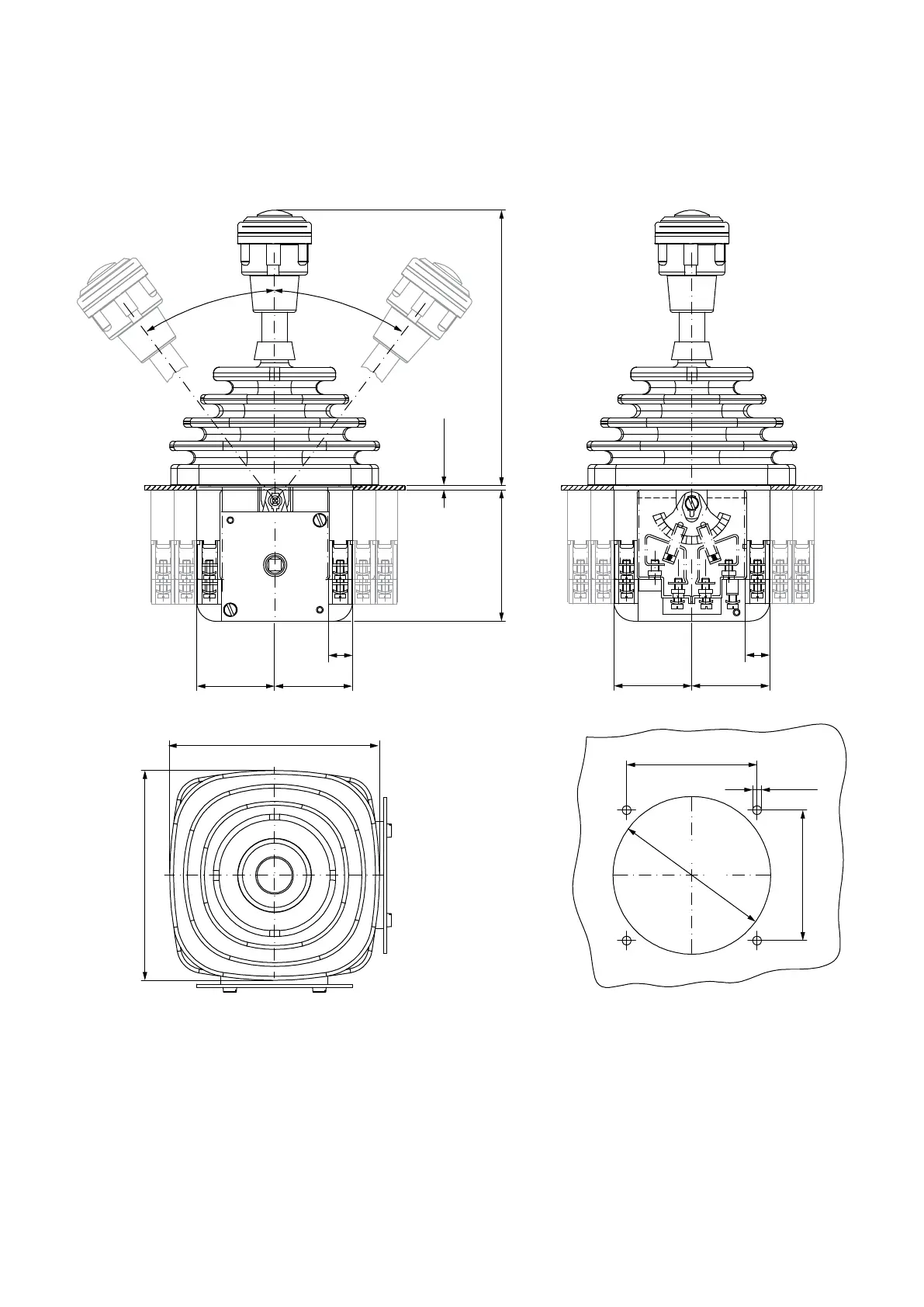

Figure 5.
105 140
64
107,76
max. 37°
max. 37°
107,76
40 40
12
67
Ø 81
4,5
67
40 40
12
max. 5
Joystick VCS0 basic version with standard knob G41 and rubber boot-holder combination S3 – dimen-
sion drawing (dimensions in mm)
