12. Spare parts

Note

This document describes only the standard version of the joystick VCS0.

In the following table you will nd the spare parts for all versions.

For further information on installing and removing the spare parts for the related version,

refer to the related documentation.

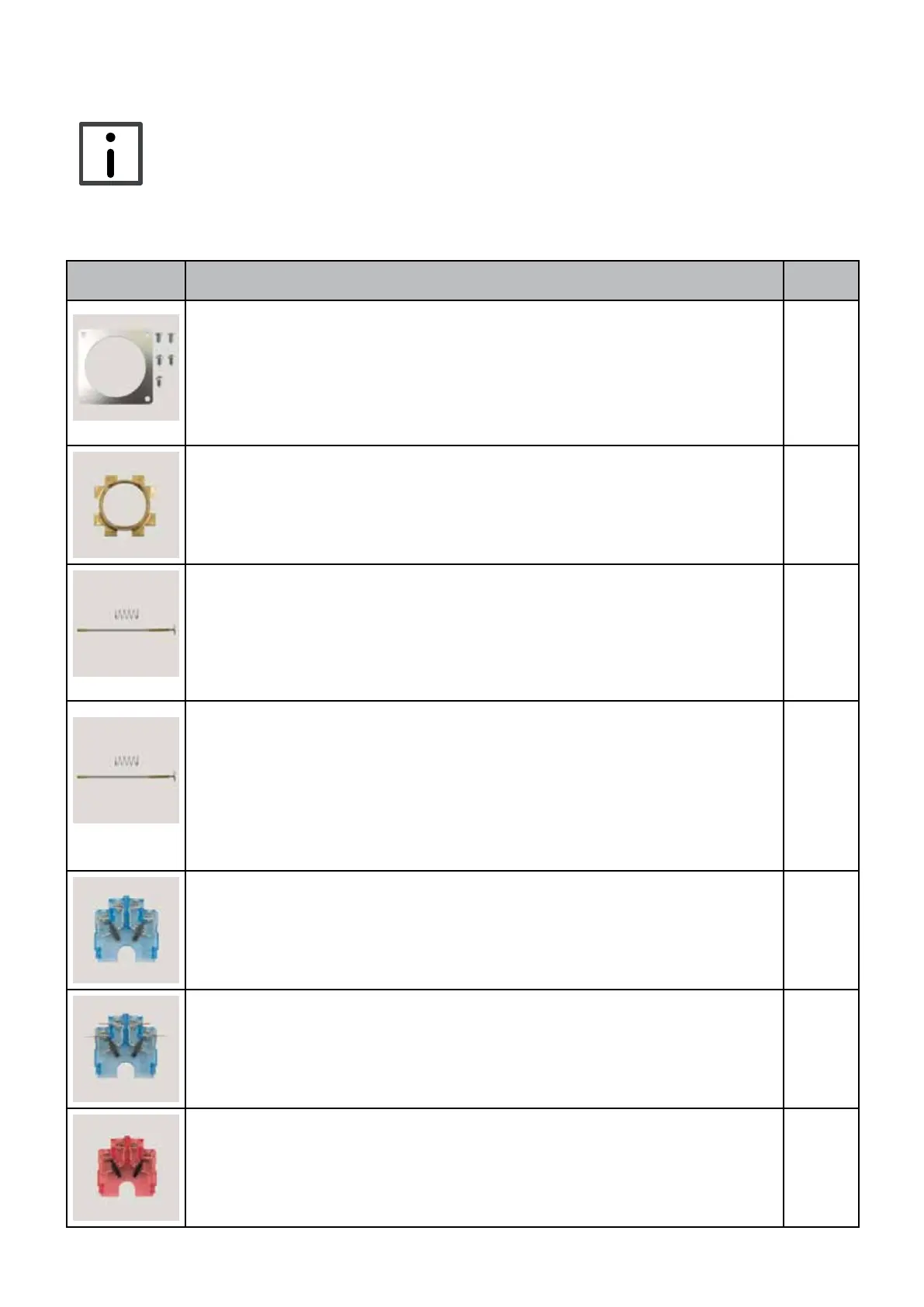

Spare part Name/items supplied No.

Cover

for boot holder escutcheon for VNS0 & VCS0

1x escutcheon for boot holder V048-100-A1

5x ISO 7380-1 M6x10 steel 10.9 galvanized, blue passivated (A2K) screw attened

domed head and hex socket

47178

Stop gate

37° for VCS0

1x stop gate 37°

51896

Flexible shaft, adjustable

for lever lengths 110 mm for VCS0

1x CS0 ES46VJ-110 exible shaft compl. with disk (without spring) and crimped

sleeve

lever length 110mm 1x deadman's spring

51898

Flexible shaft, adjustable

for lever lengths 140 mm for VCS0

1x CS0 ES46VJ-140 exible shaft compl. with disk (without spring) and crimped

sleeve

lever length 140mm

1x deadman's spring

51899

Double contact element blue

for VCS0

1x double contact element unlabeled

51900

Double contact element blue

with solder tags for VCS0 1x double contact element unlabeled

5x CS082-1 solder connection

51901

Double contact element pink

for VCS0

1x double contact element pink

51941
