Section 4—Installation Power-Style™ QED-2 Switchboards
35© 1988–2018 Schneider Electric All Rights Reserved80043-055-13
ENGLISH
3. Wrap the rope several times until the space between the cables (Figure 28) is
completely filled.
a. Weave the final rope loop underneath the previous rope loop (D).
b. Pull the rope taut.
4. Tie the rope ends (1) and (2) together (Figure 29) until they are taut. Cut off
excess rope, and tape ends to prevent fraying.
5. Recheck torques of wire binding screws after securing the cables.
NOTE: Refer to the torque label supplied with the switchboard for torque
values.

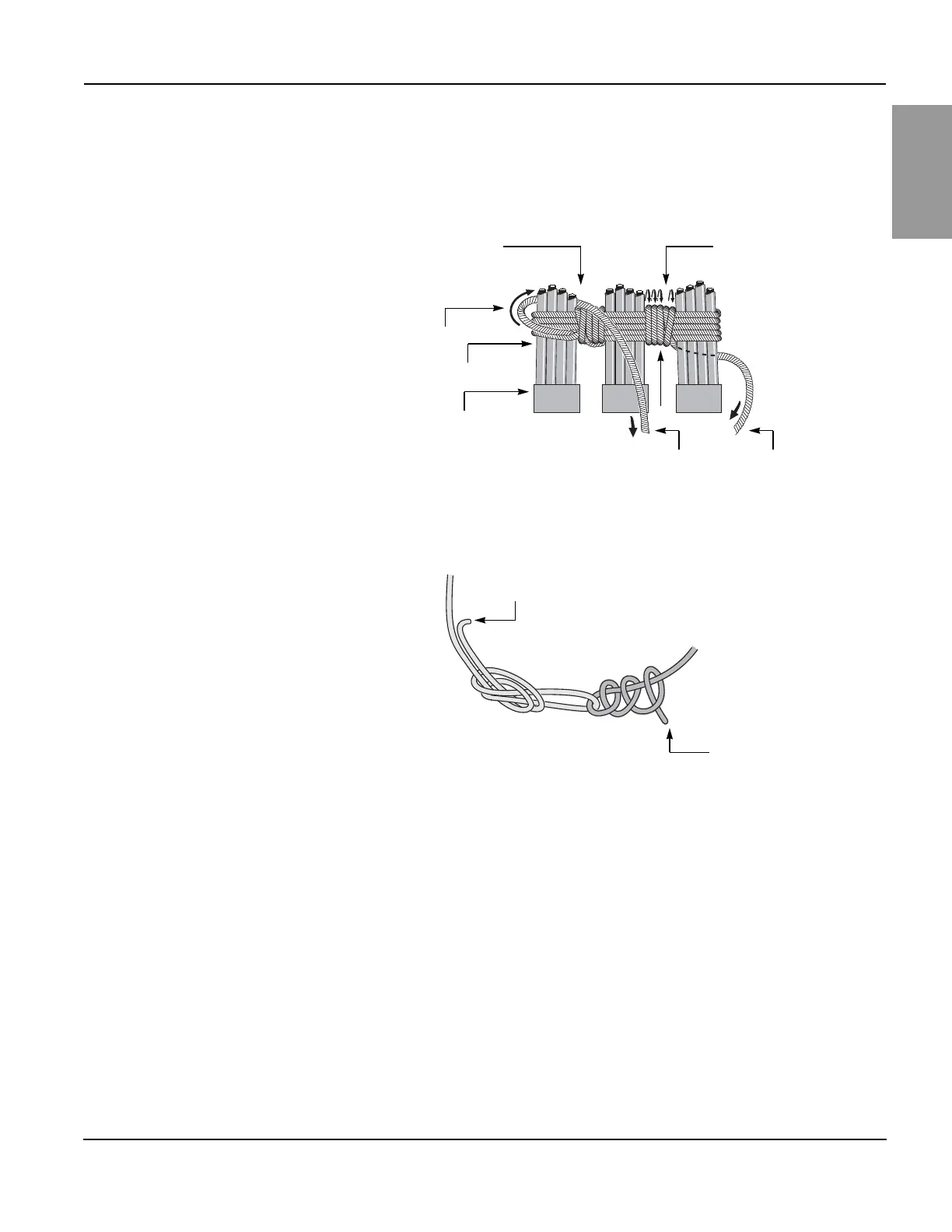

Figure 28 – Finish Wrapping the Space Between Cables
Figure 29 – Tying Rope Ends Together
Left-hand
space
Right-hand
space
Lugs
Cables
Wrap rope
End 2End 1
D
End 2
End 1
