Section 3—Receiving, Handling, and Storing
Receiving
Upon receipt, check the packing list against the equipment received to ensure the
order and shipment are complete. Also upon receipt, immediately inspect
switchboard sections for any damage that occurred in transit. If damage is found or
suspected, file a claim with the carrier immediately and notify the nearest
Schneider Electric representative.
Handling
Ensure that proper equipment, such as an overhead crane, is available at the
installation site to handle the switchboard. This equipment helps avoid injury to
personnel and damage to the switchboard.
The shipping weight of each shipping section is marked on the packing list. Verify
the lifting capacity of the equipment being used to handle the switchboard in
accordance with the shipping weight of each shipping section. Keep the
switchboard upright during handling.
Schneider Electric recommends using an overhead crane, lifting straps, and cables
or chains to handle the switchboard. This method and alternative handling methods
are discussed in this section.
Handling with Lifting Straps Schneider Electric provides lifting straps as standard equipment for NEMA Type 1
switchboard shipping sections rated 3,000 A or less. Instruction labels on each
shipping section include drawings and written instructions outlining the proper use
of the lifting straps (Figure 2). Use rigid spreaders or a spanner bar to provide
vertical lift on the lifting straps. This helps avoid damage to the frame or finish.
WARNING
SPECIAL HANDLING REQUIREMENTS
• Do not lay the equipment on its front or sides.
• Lay equipment only on its back when special handling is required.
• Do not ship the equipment lying down.
Failure to follow these instructions can result in serious injury or equipment
damage.

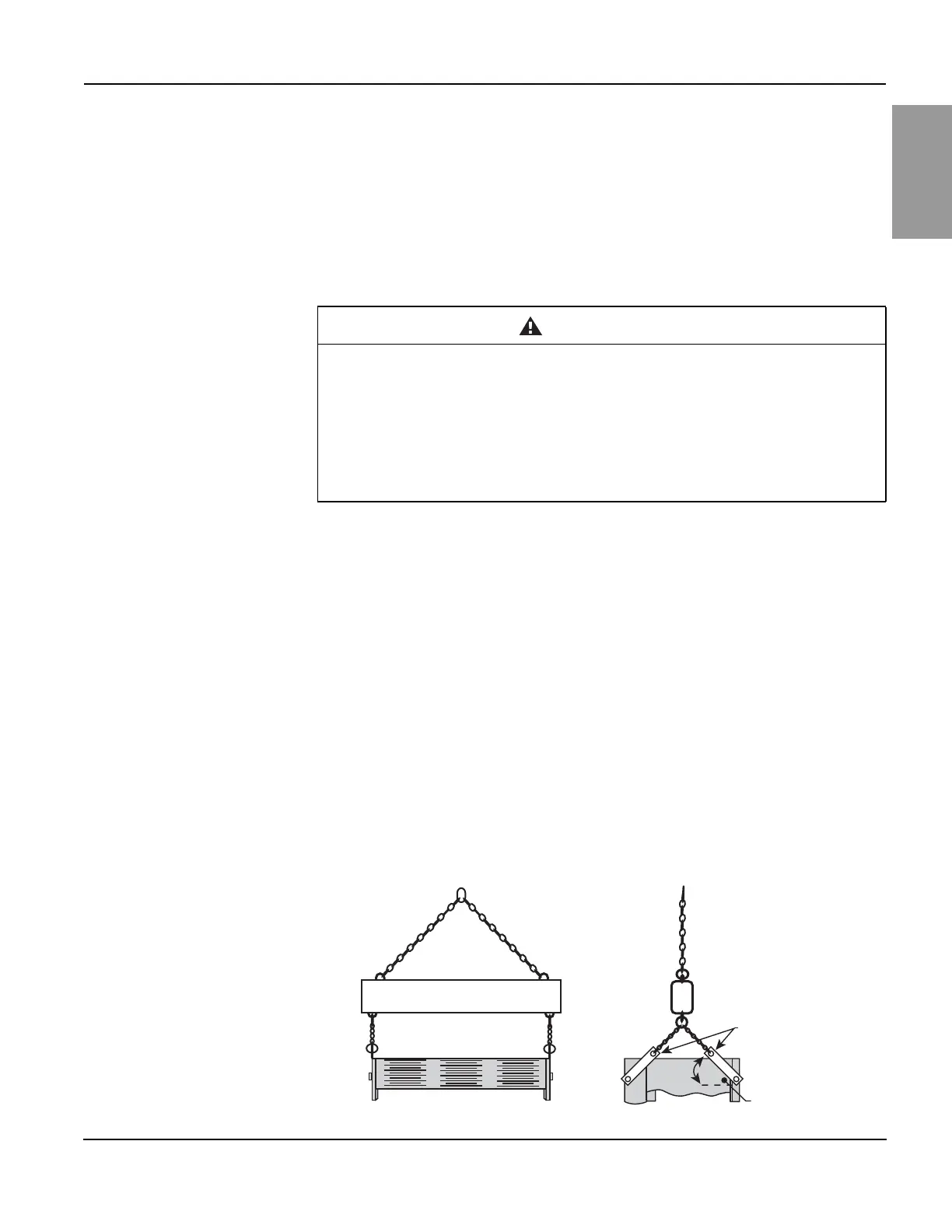

Figure 2 – Lifting with an Overhead Crane, Lifting Straps, and Cables or
Chains
Spreader beam
Front View
Side View
Lifting straps
45° min. angle
To Next Page
