Model F120 UV/IR Flame Detector
QUICK INSTALLATION GUIDE
Tools Required
4 mm hex wrench is required.
Flat head screwdriver 3/16 inch (5 mm) width for terminal block connections.
Adjustable wrench for conduit or cable gland connections.
!
WARNING: De-classify the area to reduce the risk of ignition of hazardous atmosphere.
Combustible and ammable gases and vapors are very dangerous. Extreme caution
should be taken when these hazards are present.
Quick Install Guide

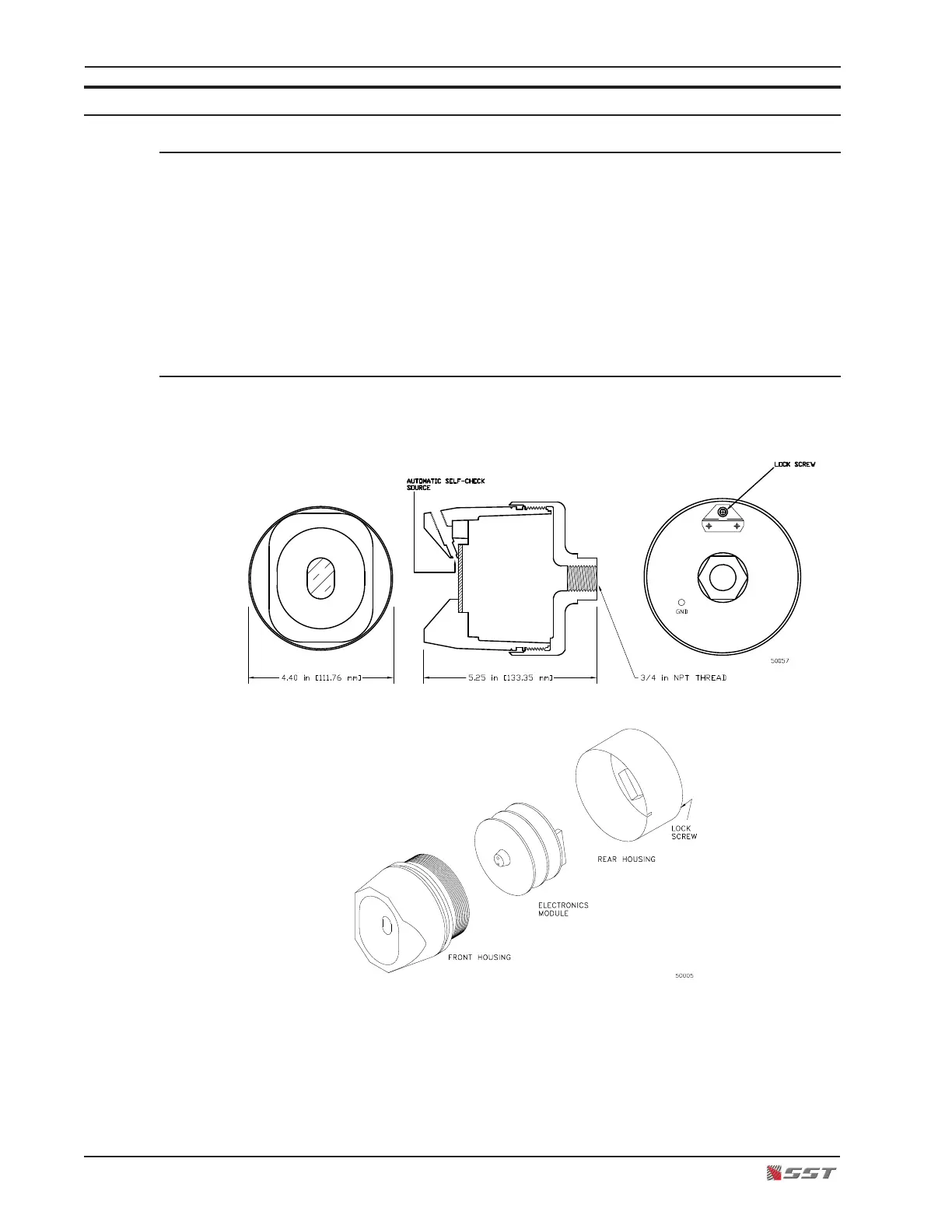

1. Disassemble the ame detector. Use a 4 mm hex wrench to loosen the locking screw
on rear of the detector.
2. Remove the electronics module from the rear housing.
3. Install the mounting brackets.
If using conduit, install the Conduit Mounting Bracket. A conduit seal tting must be
used within 18 inches (46 cm) from the ame detector.
If usng a Wall/Ceiling Mounting Bracket, use a suitable cable gland with 3/4 inch NPT
male thread
To Next Page
