ST STM32F7308-DK - The STM32 F7308-DK Discovery Kit Mechanical Drawing; Figure 6. STM32 F7308-DK Mechanical Drawing

UM2469 Rev 1 13/59
UM2469 Hardware layout and configuration
58
7.2 The STM32F7308-DK Discovery kit mechanical drawing

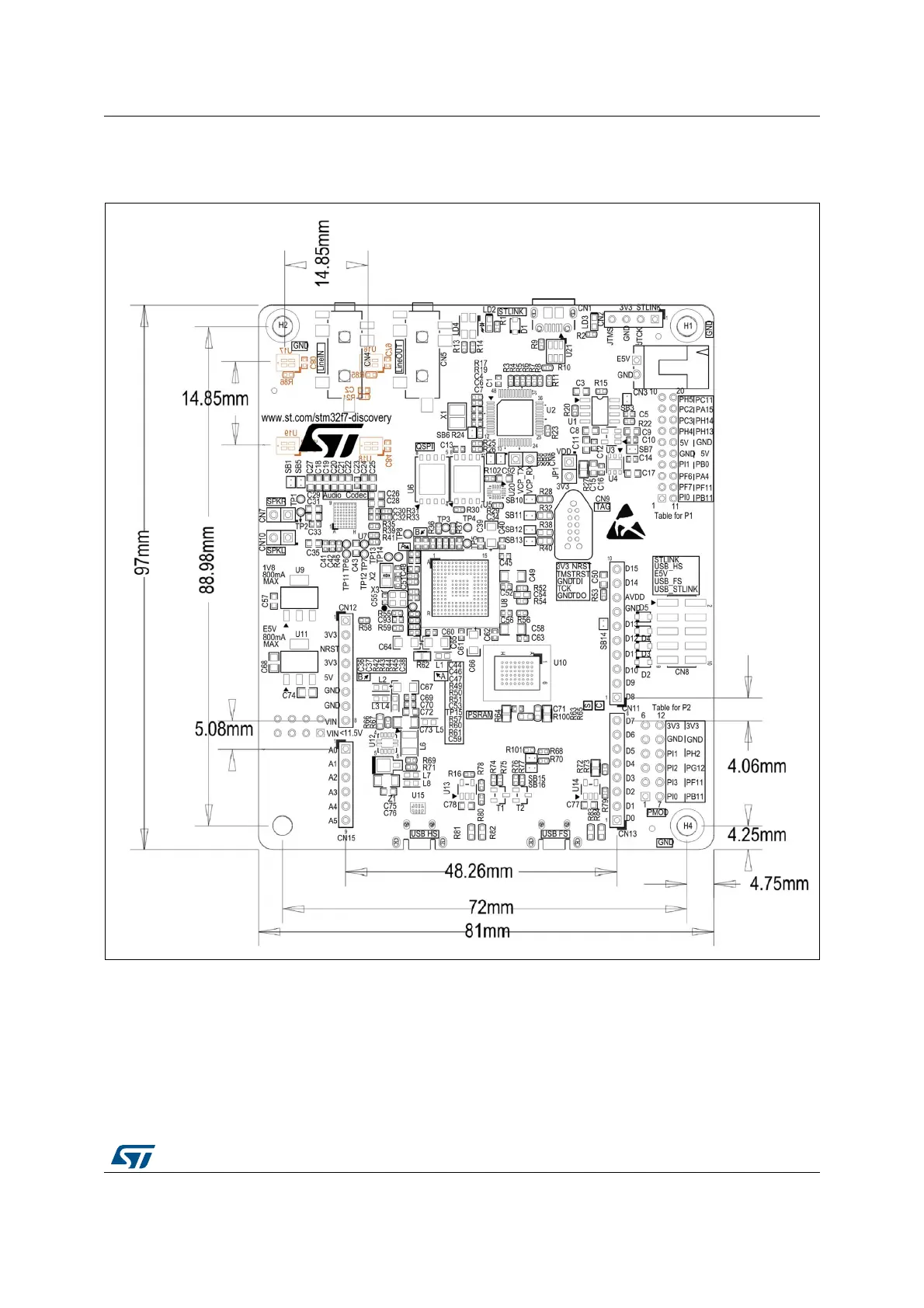

Figure 6. STM32F7308-DK mechanical drawing
1. The digital microphones marked in orange (U16, U17, U18 and U19) are placed on the bottom side of the board.
