Connectors UM2469
30/59 UM2469 Rev 1
8.8 Control Touch Panel (CTP) Frida connector

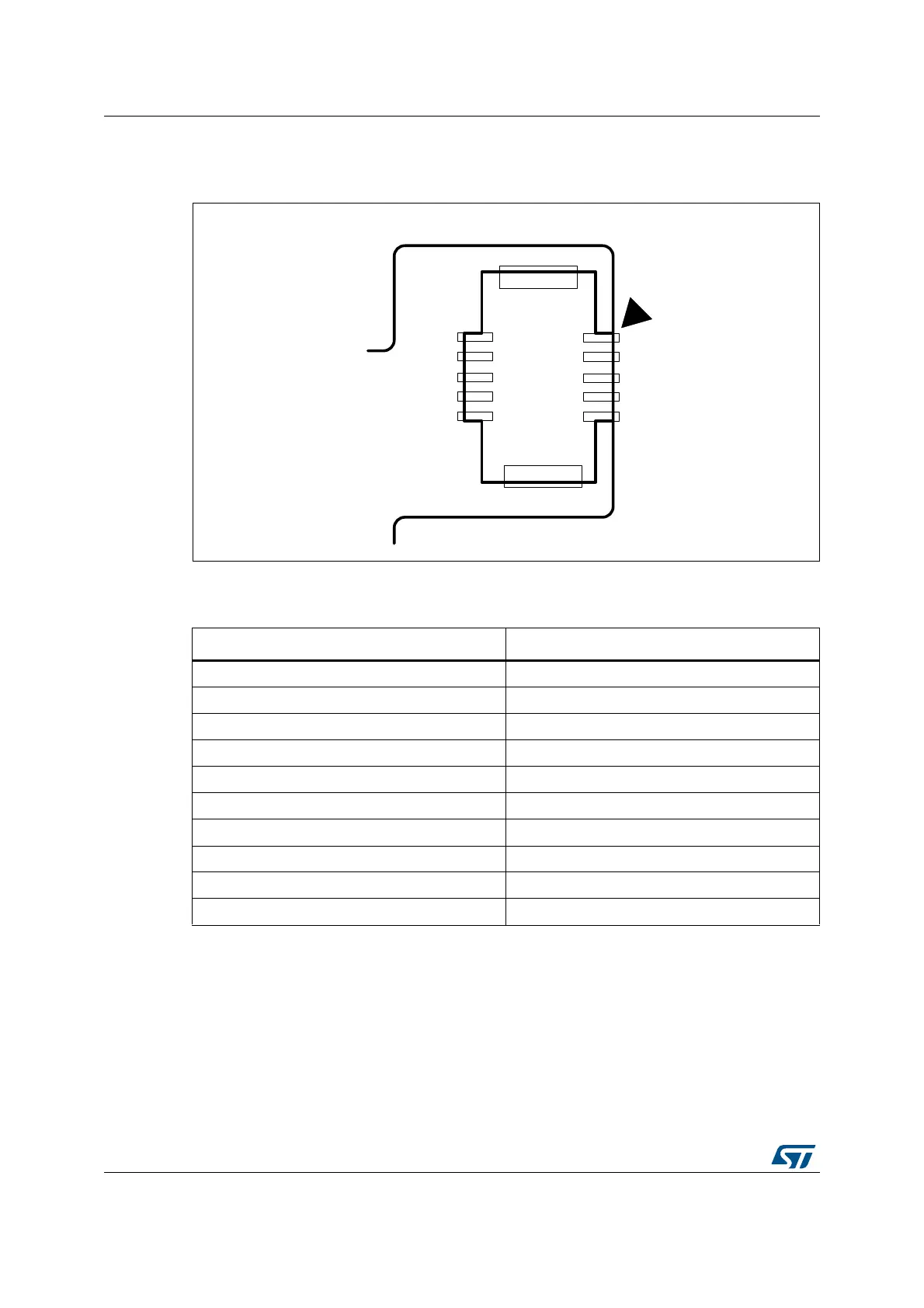

Figure 20. CTP connector ((Hirose DF37NB-10DS-0.4V (5x)) CN16 (front view)
Table 13. Pin description of the CTP connector CN16
Pin number Description
1GND
2INT
3GND
4SDA
5SCL
6GND
7 RESET
8IOVCC
9VDD
10 GND
