Appendix D Fanout board
The Fanout board (see Figure 35) comes with the STM32F7308-DK Discovery board.
It is connected to STMod+ connector (P1) and it provides access to:
• MikroElektronika Click board compatible connectors (CN10 and CN11: two 1x8-pin
female connectors)
• ESP-01 compatible connector (CN4: 2x4-pin female connector)
• Seeed Studio
™
Grove compatible connectors (CN3 and CN2: two 1x4-pin male
connectors)
• Reserved standard 2.54 mm pitch of STMod+ pin header for breadboard.
The main active component for this Fanout board is the 3.3 V regulator U1 (200 mA).

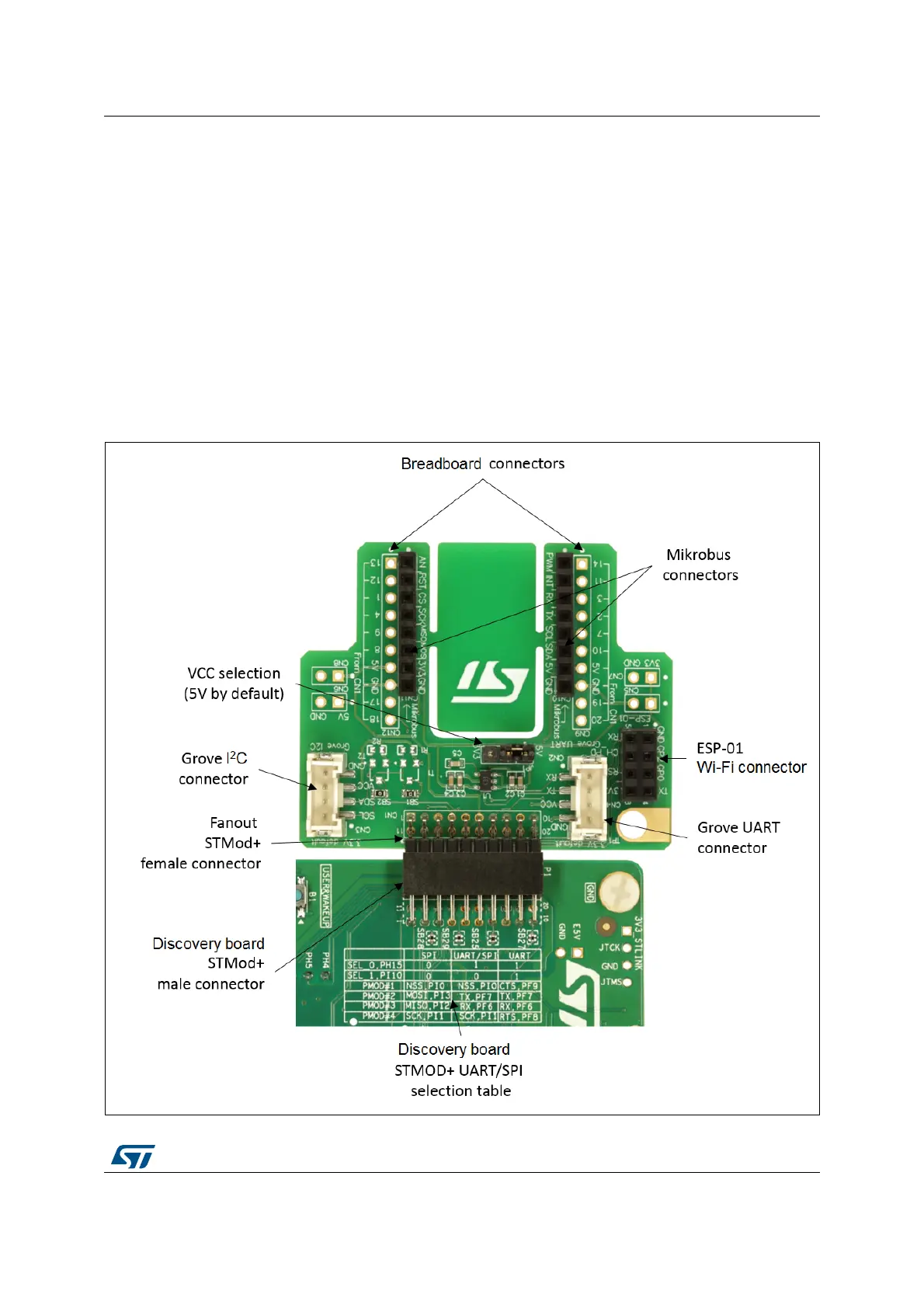

Figure 35. STMod+ Fanout module plugged into P1 connector
