8.5 USB OTG HS Micro-AB connector

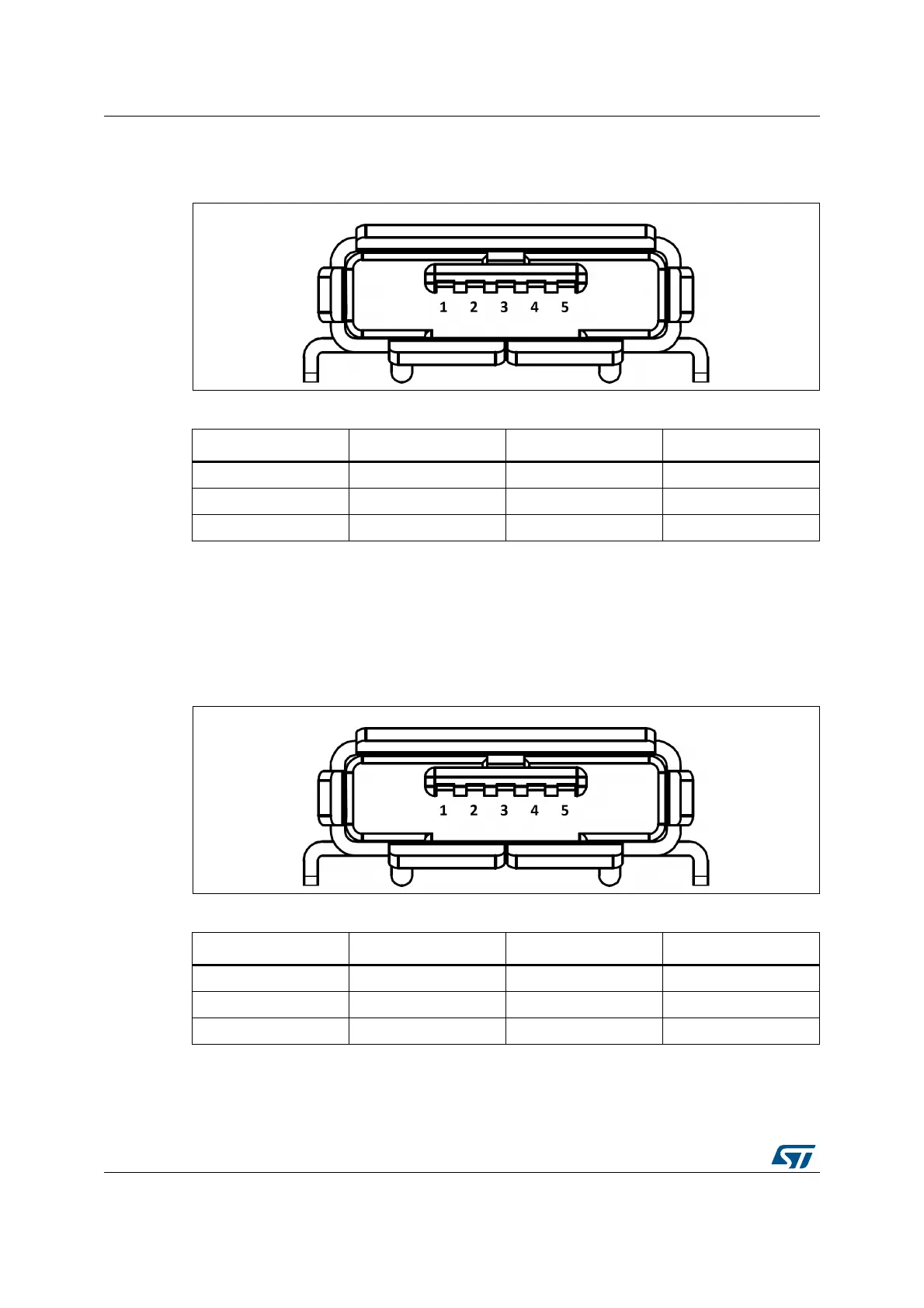

Figure 17. USB OTG HS Micro-AB connector CN19 (front view)
Note: STMPS U13 is providing V
BUS
. It is active high, controlled by PH12. Overcurrent is sent to
PH10 interrupt.
8.6 USB OTG FS Micro-AB connector
Figure 18. USB OTG FS Micro-AB connector CN18 (front view)
Note: STMPS U14 is providing V
BUS
. It is active low, controlled by PG8. Overcurrent is sent to
PB10 interrupt.
Table 10. USB OTG HS Micro-AB connector CN19
Pin number Description Pin number Description
1V
BUS
4ID
2D-5GND
3D+- -
Table 11. USB OTG FS Micro-AB connector CN18 (front view)
Pin number Description Pin number Description
1V
BUS
4ID
2D-5GND
3D+- -
