UM2469 Connectors
58
8.7 LCD Frida connector

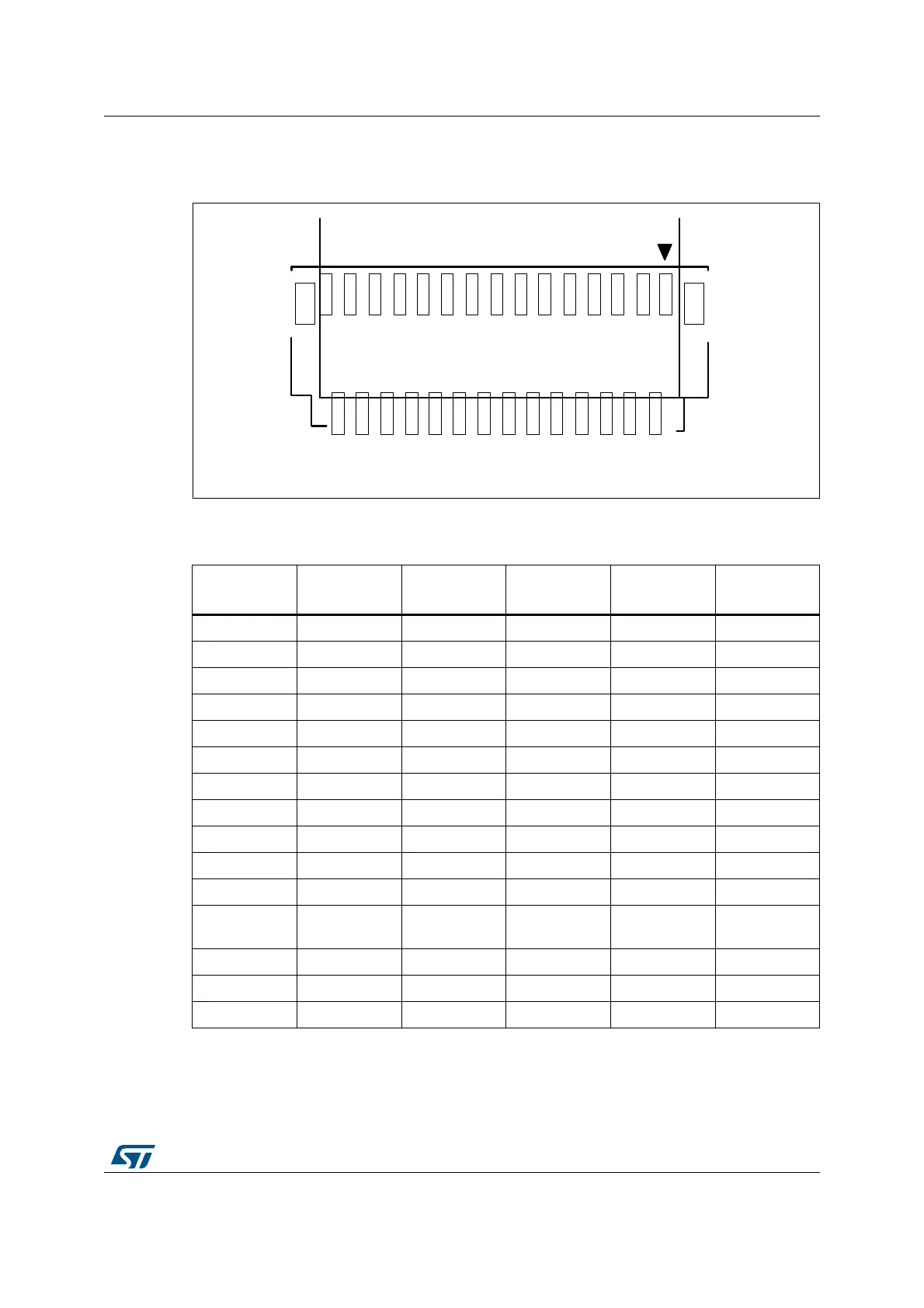

Figure 19. LCD Frida connector (Hirose FH26-29S-0.3SHW) CN17 (front view)
Note: LEDA and LEDK backlight is controlled by STLD40DPUR (U12) with PH11 PWM.
Table 12. Pin description of the LCD Frida connector CN17
Pin number Description
Pin
connection
Pin number Description
Pin
connection
1 GND GND 2 FMARK PC8 (TE INT)
3DB15FMC_D154DB14FMC_D14
5DB13FMC_D136DB12FMC_D12
7 DB11 FMC_D11 8 DB10 FMC_D10
9 DB9 FMC_D9 10 DB8 FMC_D8
11 DB7 FMC_D7 12 DB6 FMC_D6
13 DB5 FMC_D5 14 DB4 FMC_D4
15 DB3 FMC_D3 16 DB2 FMC_D2
17 DB1 FMC_D1 18 DB0 FMC_D0
19 NRD FMC_NOE 20 NWR FMC_NWE
21 RS PF0 (FMC_A0) 22 NCS PG9 (NE)
23 RESET
PH7
(LCD_RST)
24 IM VDD
25 IOVCC VDD 26 VCI 3.3 V
27 GND GND 28 LEDA LEDA
29 LEDK LEDK - - -
