UM2469 Rev 1 31/59
UM2469 Connectors
58
8.9 ST-LINK/V2-1 USB Micro-B connector CN1
The USB connector CN1 is used to connect embedded ST-LINK/V2-1 to PC for
programming and debugging of STM32F730I8K6 microcontroller.

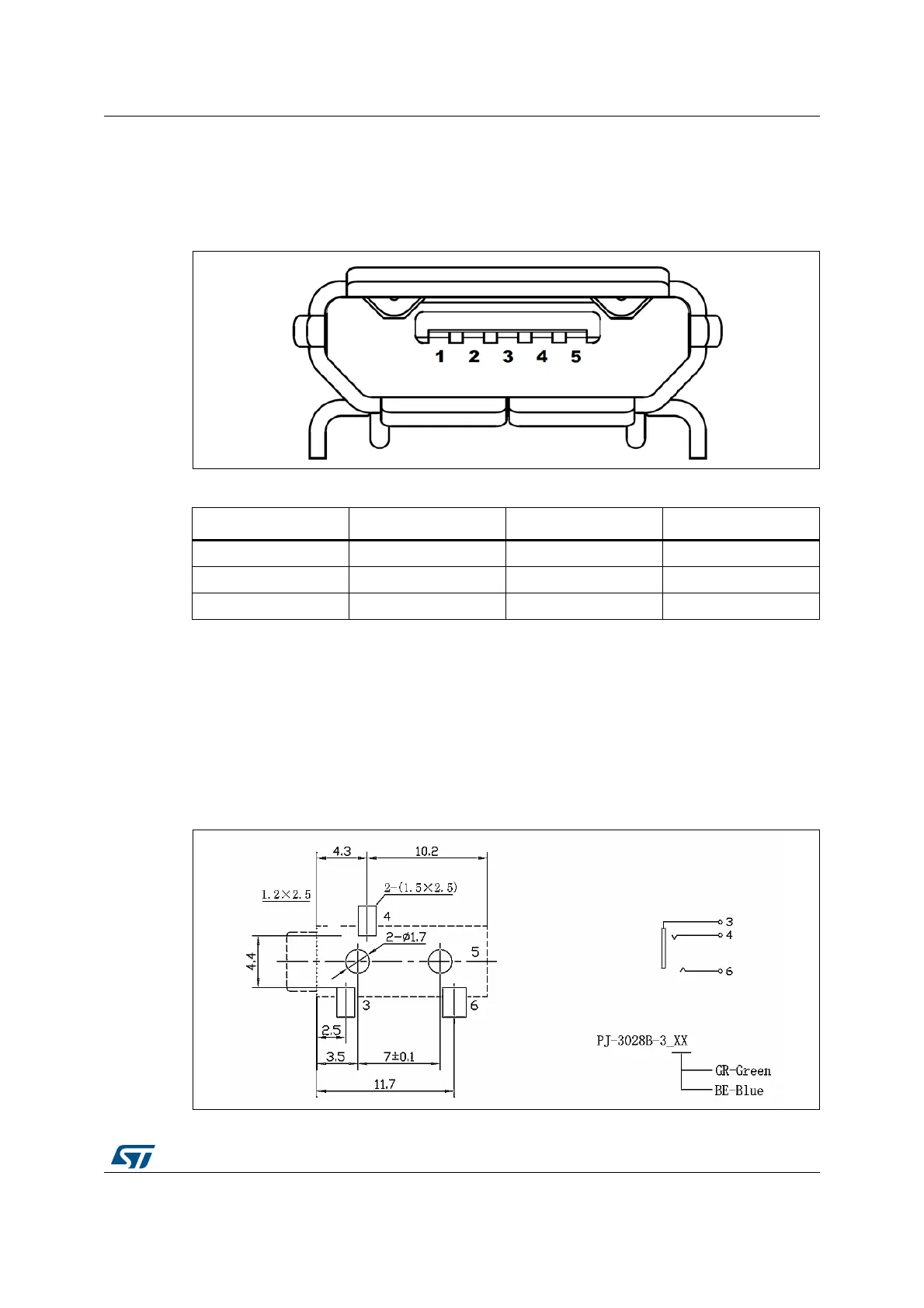

Figure 21. USB Micro-B connector CN1 (front view)
8.10 Audio stereo speakers
The stereo audio outputs CN10 and CN7 are available to support stereo speakers (left and
right respectively).
8.11 Audio line connectors
Figure 22. Mechanical drawing of the audio line connector
Table 14. USB Micro-B connector CN1
Pin number Description Pin number Description
1V
BUS
(power) 4 GND
2 DM 5, 6 Shield
3DP- -
