8 Connectors
8.1 Wi-Fi ESP-01 compatible connector

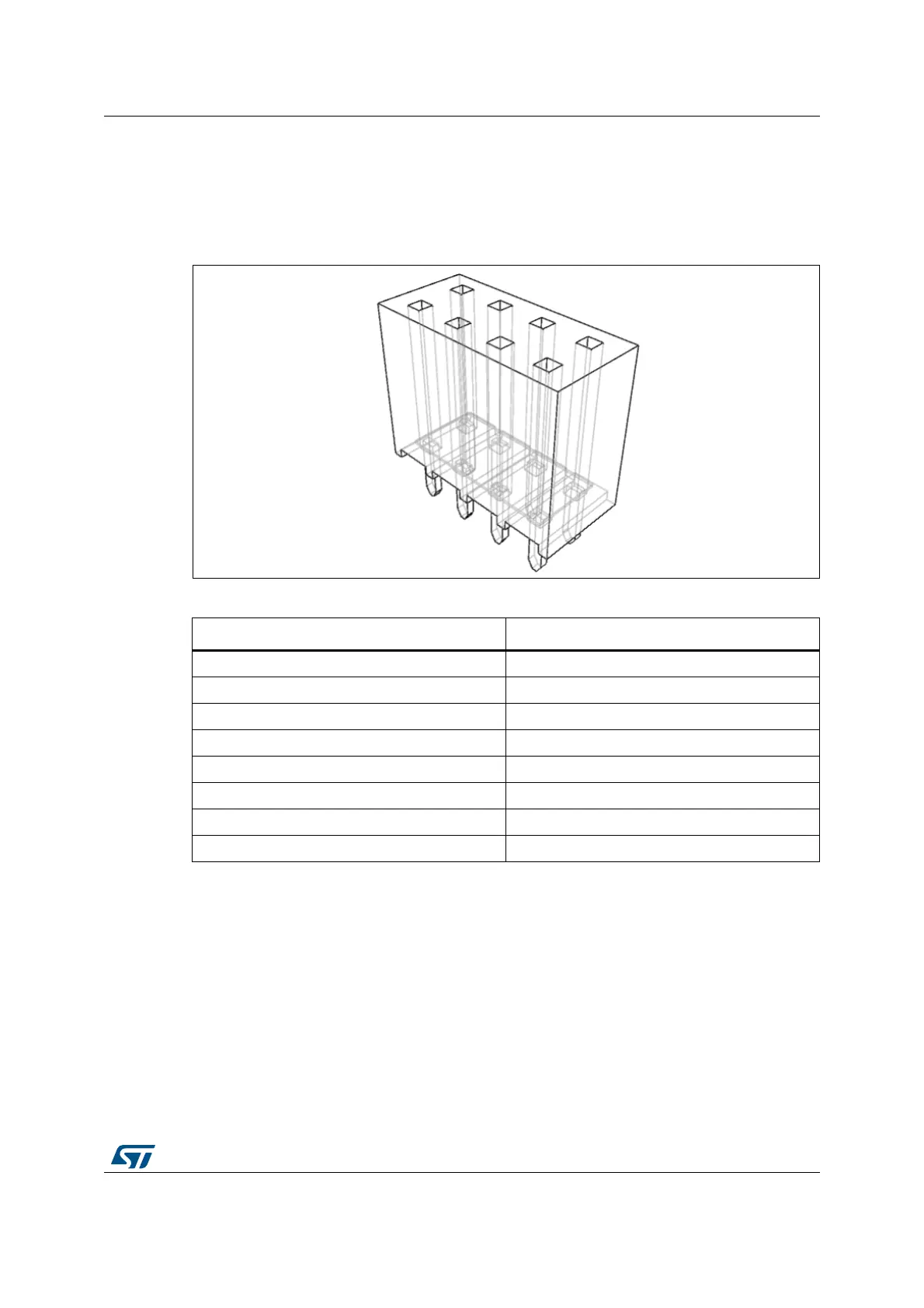

Figure 13. Wi-Fi connector CN14 (front view)
8.2 Arduino Uno V3 compatible connectors
CN11, CN12, CN13 and CN15 are female connectors compatible with Arduino Uno V3
standard. Most shields designed for Arduino Uno V3 are also supported by the
STM32F7308-DK board.
The Arduino connectors on STM32F7308-DK board support the Arduino Uno V3.
Caution: The I/Os of STM32 microcontroller are 3.3 V compatible instead of 5 V for Arduino Uno V3.
Table 4. Wi-Fi extension connector CN14
Pin number Wi-Fi description
1WIFI_RX
23.3 V
3GPIO0
4WIFI-RST
5GPIO2
6CH_PD
7GND
8 WIFI_TX
