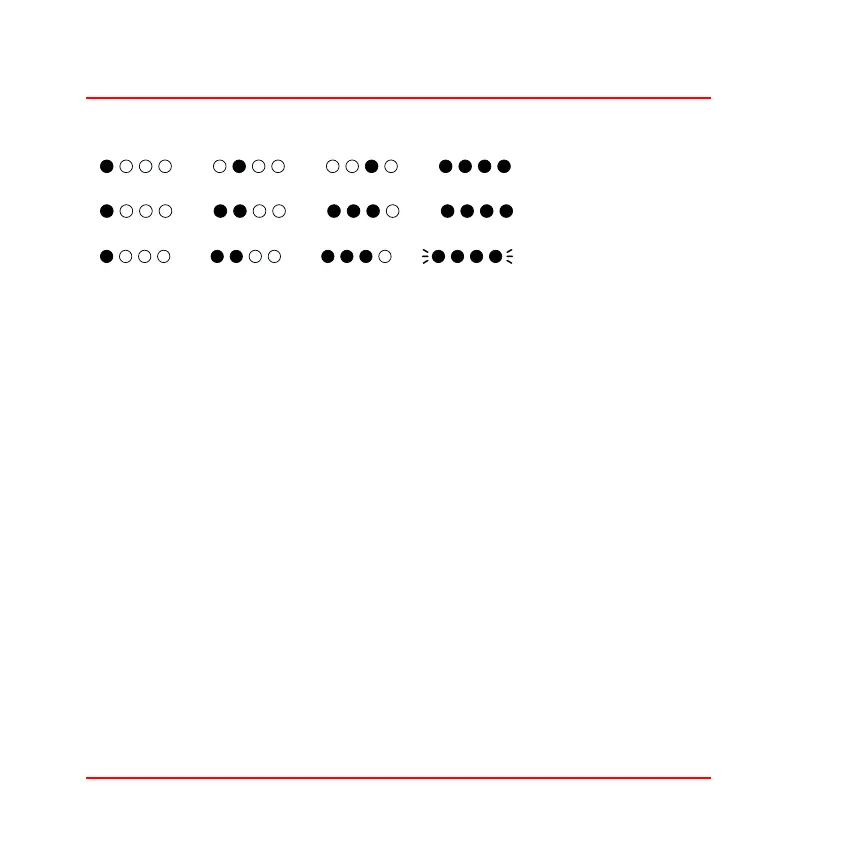

Figure 15: Shift light sequence as engine speed increases
Disabled—The display unit will not show the shift lights as the en-
gine speed changes.
Single—All four shift lights illuminate together when the engine
speed reaches the set point for shift light 4 (the right–hand shift
light).
Sequential—The shift lights illuminate singly in sequence from left to
right as the engine speed reaches each set point, with all the lights
showing when the engine speed reaches the set point for shift light
4.
Seq–bar—The shift lights illuminate in sequence, with each light
adding to those already illuminated as the engine speed reaches
each set point.
Seq–blink—The shift lights illuminate following the same sequence
as ‘Seq–bar’, but they will all flash together when the engine speed
reaches the set point for shift light 4.
Sequential
Seq–bar
Seq–blink
