Stack ST8100 User Manual

Chapter 2. Getting Started STACK ST8100 Display System
4 Users Guide

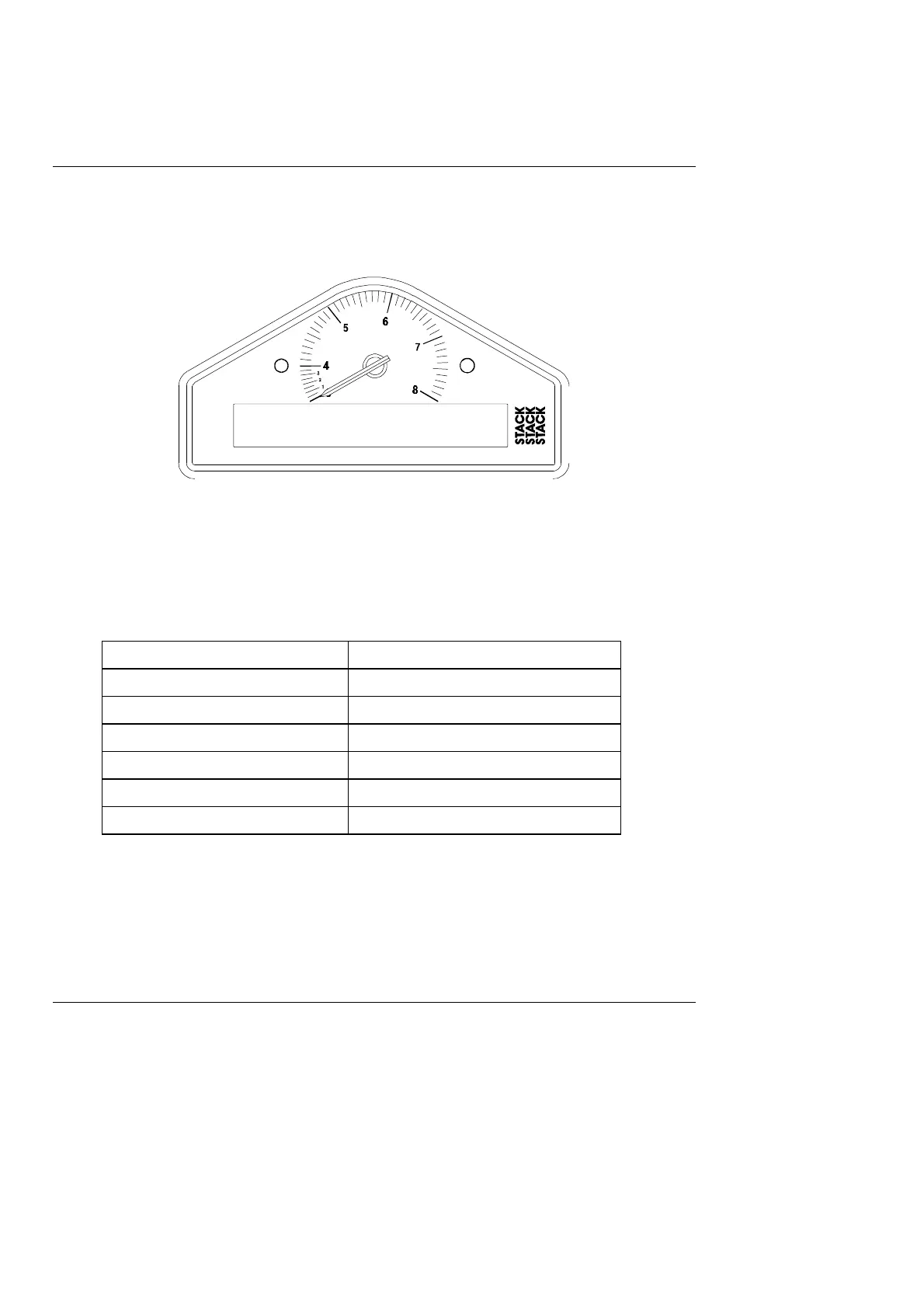

The Display ModuleThe Display Module
The Display Module consists of an analog tachometer and a digital
display panel.
The Display Module is connected to a variety of sensors by a wiring
harness. The wiring harness has a 19-way military connector for
connection to the Display Module.
Wiring HarnessWiring Harness
Each of the wires in the harness is labelled.
Labels on short cables Connection To
S1 to S4 Switches 1 to 4
WS Wheel speed sensor
LAP Lap timing sensor
SL Gear shift warning light
AL Alarm warning light
NET Data logging expansion pack
