Error! Main Document Only.Chapter 5. Installing the Display System STACK ST8100 Display System
34 Users Guide
Trackside Infra-Red Lap Beacon (optional)Trackside Infra-Red Lap Beacon (optional)

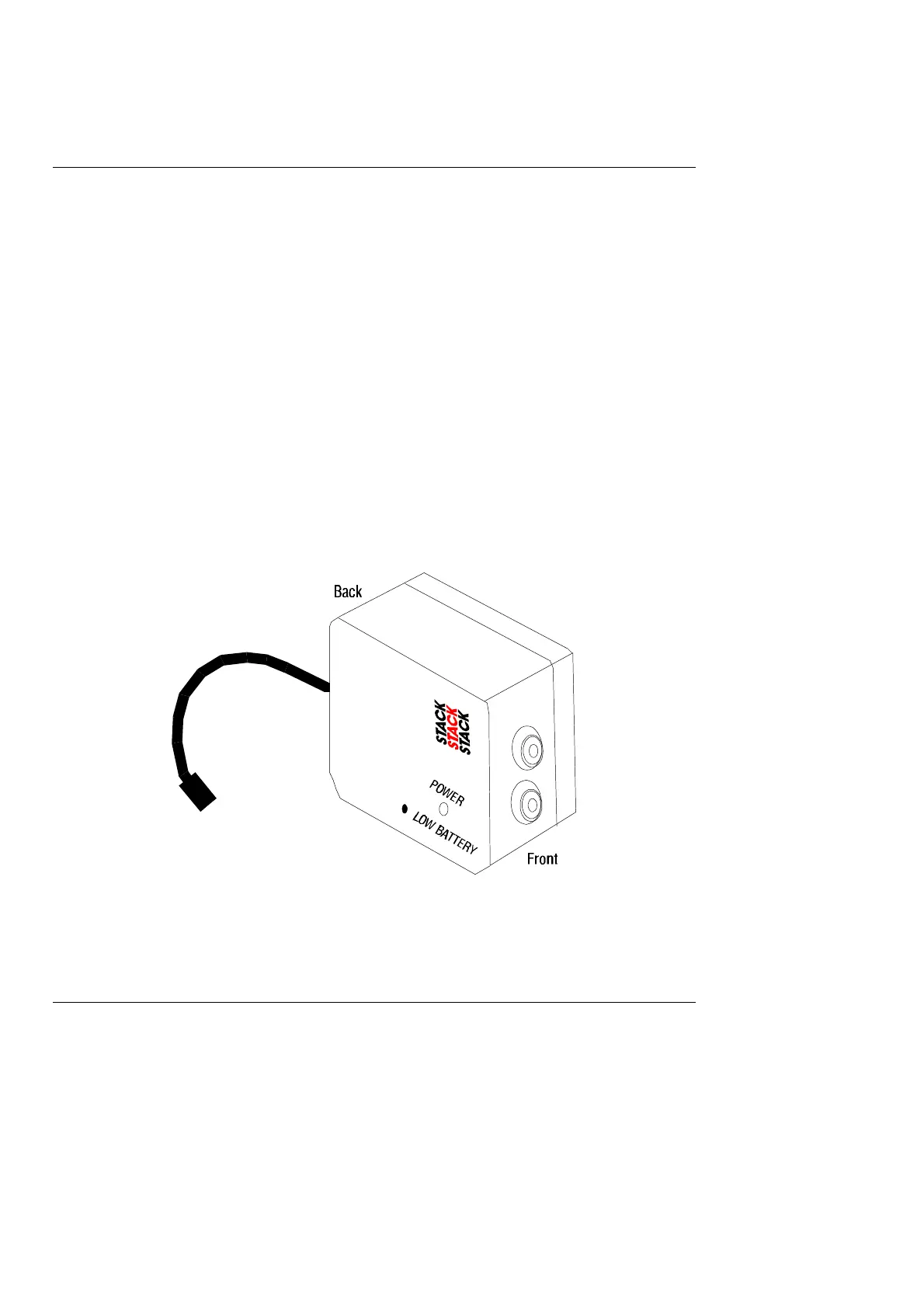

The ST544 trackside infra-red lap beacon should be located as follows:
• As near to the start-finish line as possible
• At the same height as the on-vehicle detector
• Level, so that it emits a horizontal beam
• It must be between 2 and 30 meters (6 to 95ft) from the vehicle when
the vehicle passes it.
Avoid positioning it so that the sun is directly behind it when it is being
used.
Where the unit is to be used for lengthy periods in very hot, sunny
conditions, it should be protected by shading it from direct sunlight.
Do not allow water to be sprayed onto the transmitter lenses. During wet
conditions, fit a protective shroud over the beacon.
