5.5.4. Encoder specifications
Stage configuration -> Encoder in the Application Settings

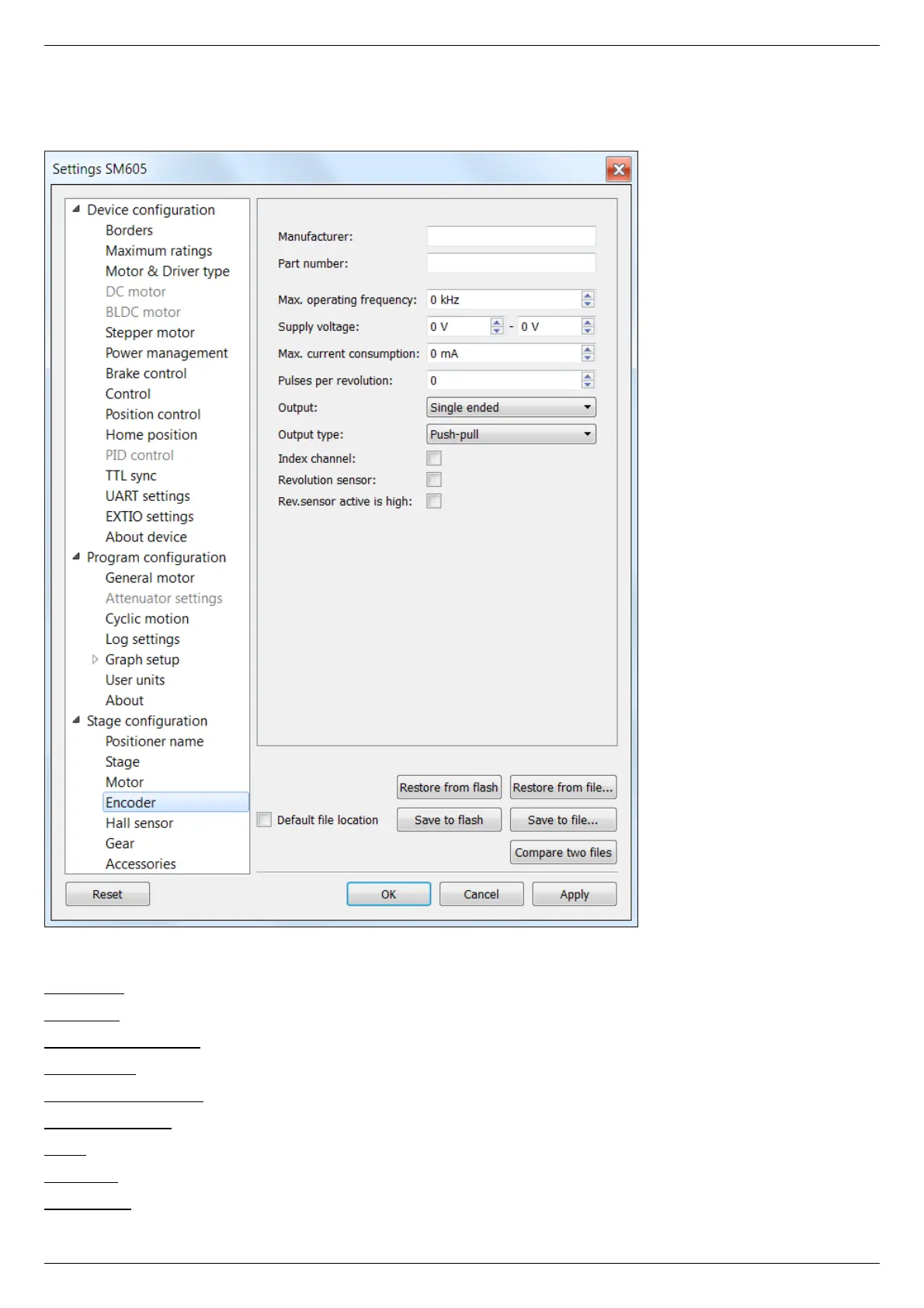

Window Encoder specifications
This section contains information about encoder
Manufacturer - encoder manufacturer name.
Part number - the catalog number.
Max. operating frequency - the maximum operating frequency.
Supply voltage - acceptable supply voltage range.
Max. current consumption - the maximum current consumption.
Pulses per revolution - pulses per single motor shaft revolution.
Output - differential or single-ended output.
Output type - electric output type (push-pull or open drain).
Index channel - indicates if additional index channel is present.
