All Treadmills

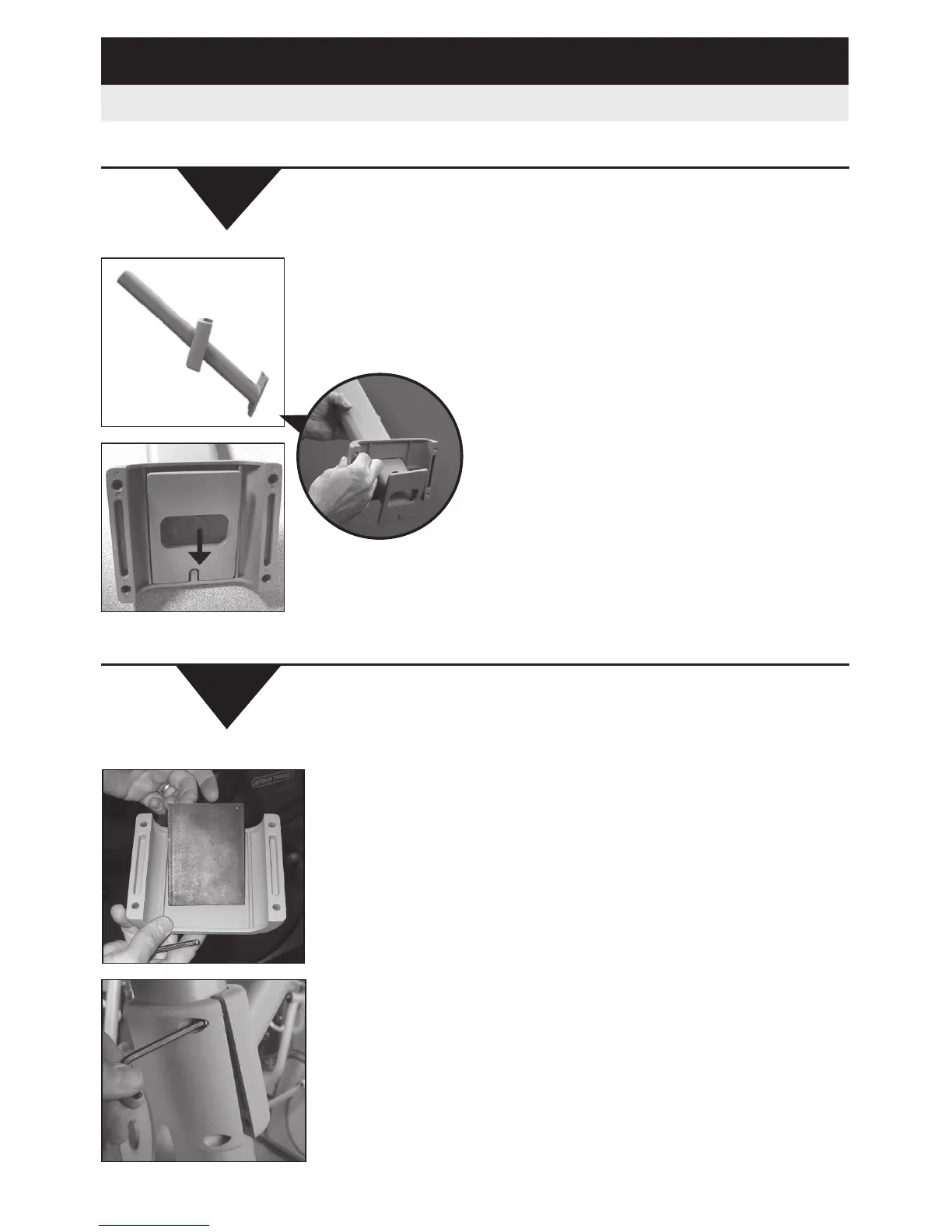

Treadmill Installation Instructions (Cont’d)
Slide the top mounting plate on the neck and align the
top plate notch with the neck base notch.
Make sure top plate sits fl ush on the notch.
- Insert the rubber pad onto the bottom mounting plate
and attach the plate around the neck of the product.
- Using the remaining 4 screws, attach the bottom and
top mounting plates together.
- Check fi t and alignment and make any necessary
adjustments, tighten all the screws securely.
