8.11.7 Monopolar TouchSoft® Mode

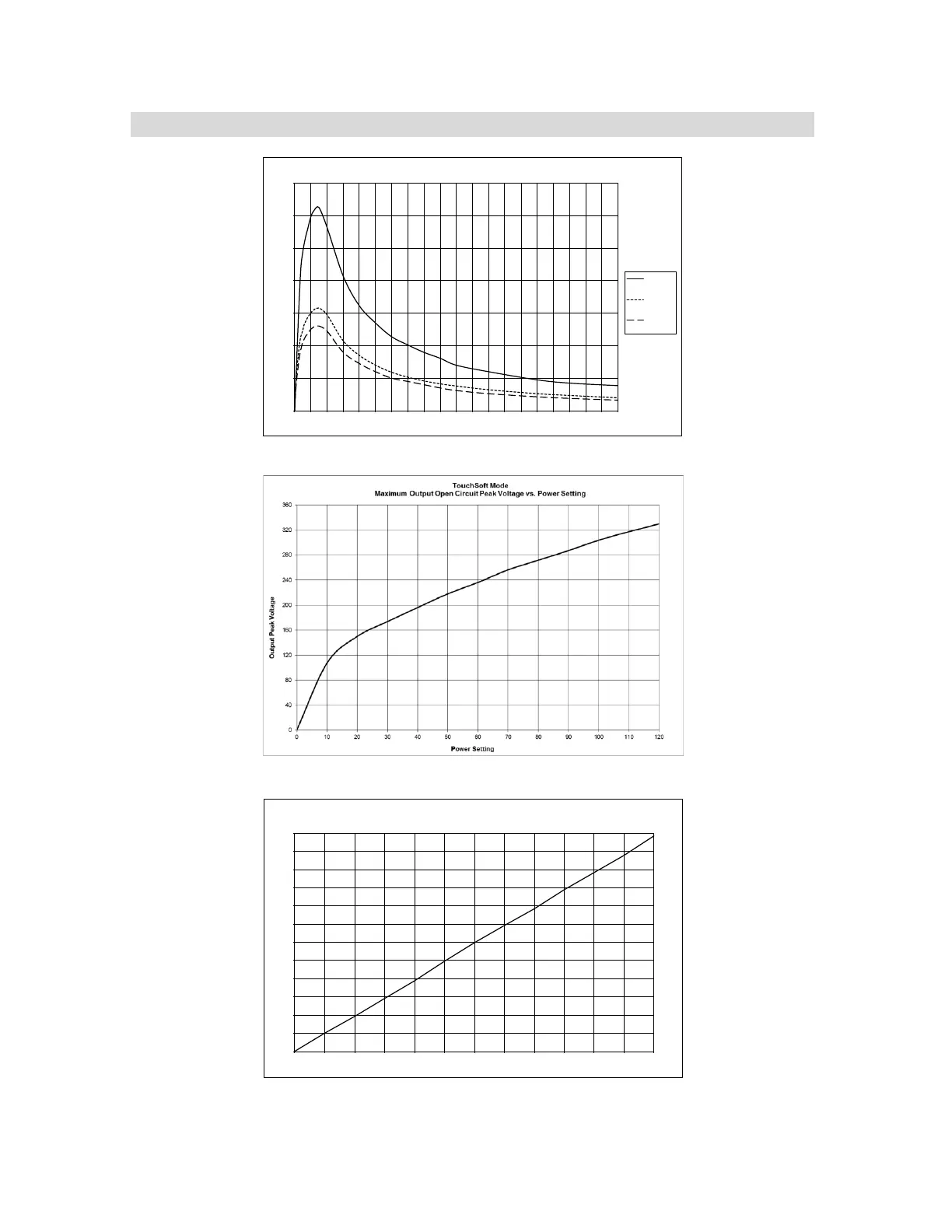

Figure 8-19
0
20
40
60
80
100
120
140
0 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000
Output Power
Load Resistance
TouchSoft Mode
Power vs Load Resistance
Soft COAG
120
Soft COAG
60
Soft COAG
Default 50
0
10
20
30
40
50
60
70
80
90
100
110
120
0 10 20 30 40 50 60 70 80 90 100 110 120
Output Power
Power Setting
TouchSoft Mode
Output Power vs. Power Setting into 100 ohm Load
Figure 8-20
Figure 8-21
