12-10 In an emergency
Fuse
No.
Amperage Protected circuit
A1 15A Cigarette lighter
A2 10A Audio system
A4 10A
Auxiliary power supply
(accessory bus)
B1 15A Brake lights
B2 10A Instrument cluster
B3 15A Turn signals
B4 10A
Auxiliary power supply
(battery bus)
B5 10A Audio system
B6 10A Dome lights
B7 30A Power window (driver’s)
B8 30A
Power window (passen-
ger’s)
B9 20A Engine control unit
B11 20A Heated mirror
B12 10A Automatic transmission
B13 15A Tester
B14 20A headlights (high beam)
B15 20A Left headlight (low beam)
B16 20A
Right headlight
(low beam)
B25 15A Taillights
B27 10A Horn
Z15090
B16
B8
B9
B11
B12
B7
B6
B5
B4
B3
B2
B1
M8
M5
M9
M4
M6 M11
M3
M2
M1
B13
A4
A2
A1
S1
B14
B15
*
*
**
*
*

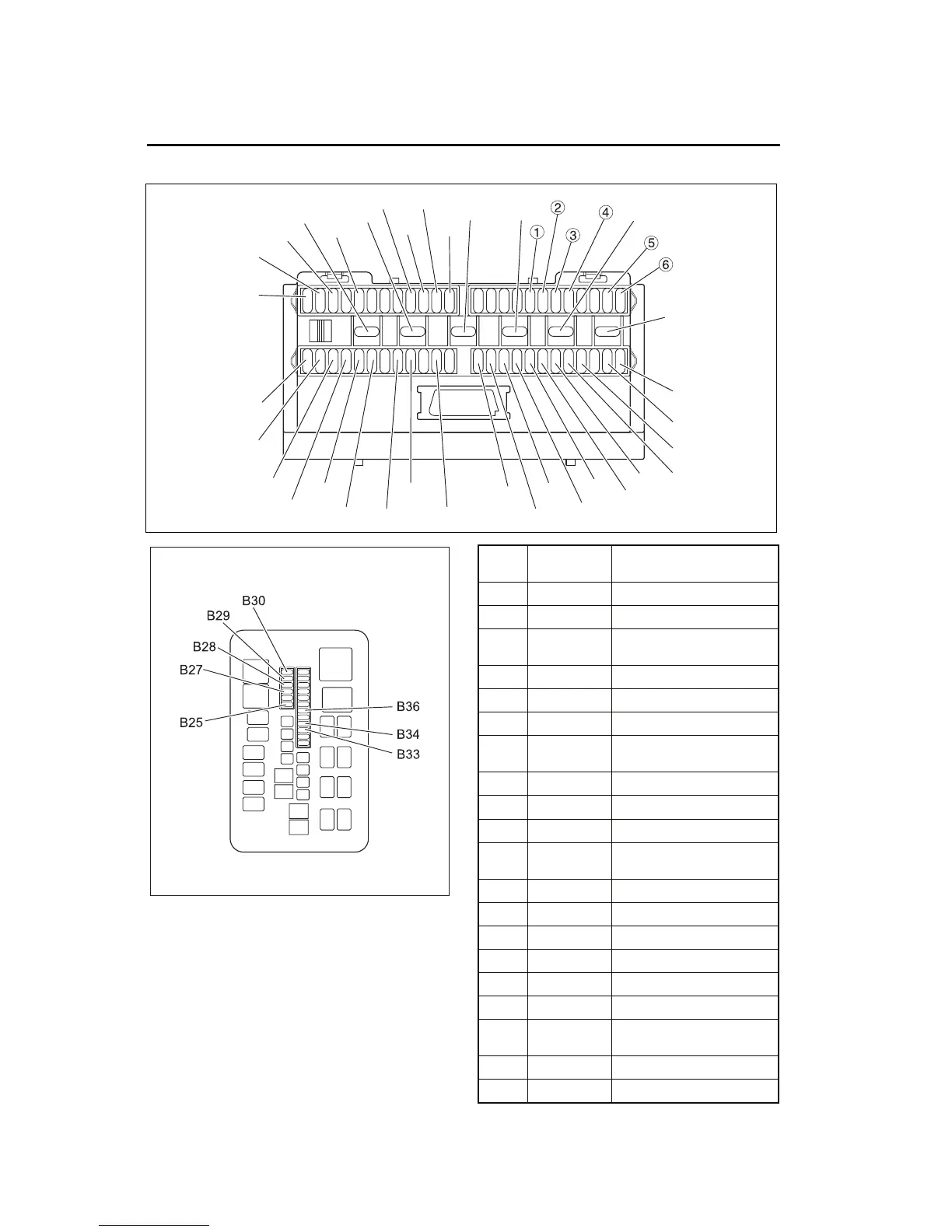

<Fuse box>
<High-amp fuse box>
Z12082a
