STERO SG - FILL VALVE (1 SOL); RINSE PUMP

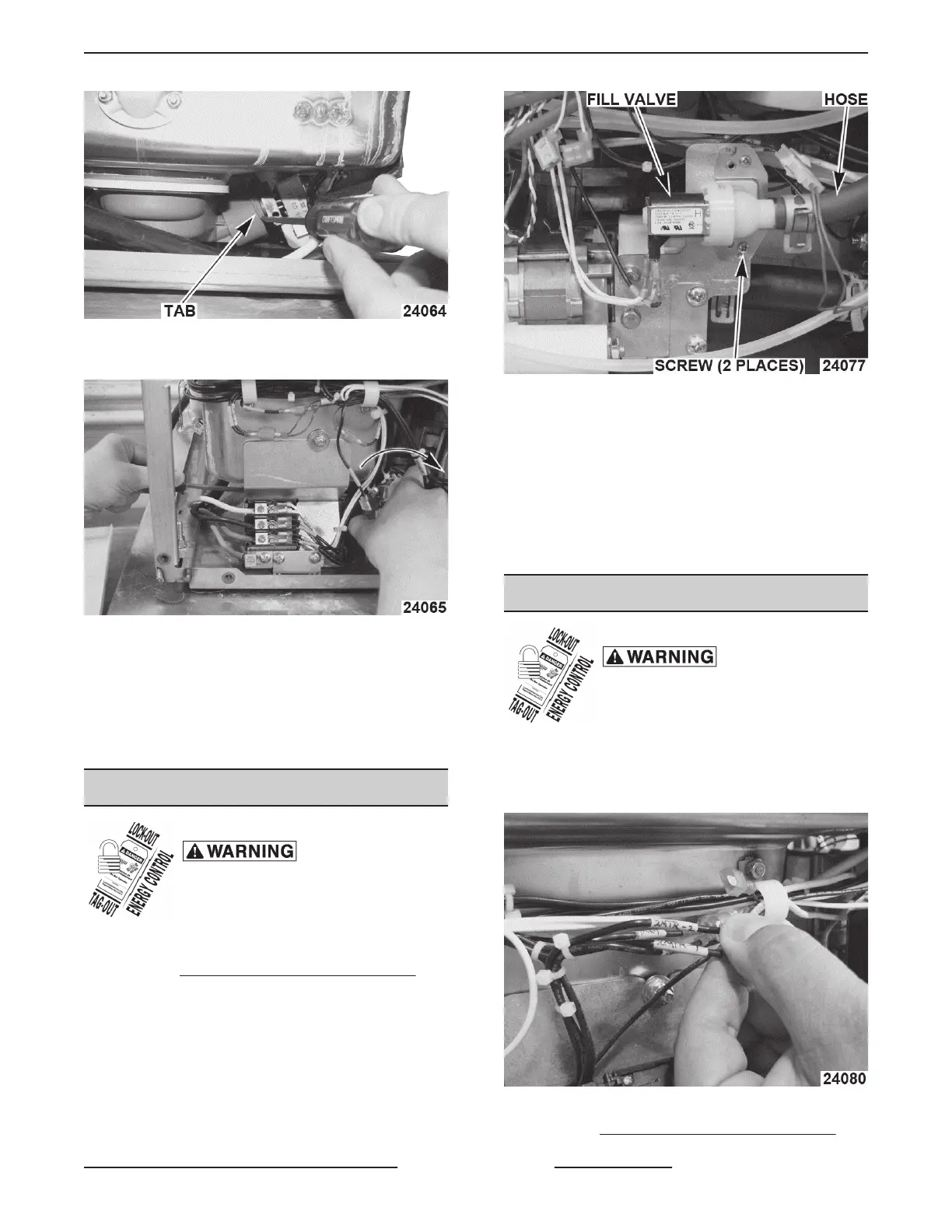

Fig. 17
4. Twist drain pump clockwise (CW) to remove.
Fig. 18
5. Reverse procedure to install.
NOTE: If tab on wash manifold is broken during drain
pump replacement, DO NOT replace wash manifold.
Drain pump can still be mounted securely without tab.
6. Check for proper operation.
FILL VALVE (1SOL)
Disconnect the
electrical power to the machine and
follow lockout / tagout procedures.
1. Shut off water supply.
2. Remove
LEFT AND RIGHT TRIM PANELS.
3. Disconnect and drain water hose.
Fig. 19
4. Disconnect electrical connections from valve.
5. Remove mounting bracket screws.
6. Remove fill valve from bracket.
7. Disconnect and drain braided water line.
8. Reverse procedure to install.
9. Check for proper operation.
RINSE PUMP
Disconnect the
electrical power to the machine and
follow lockout / tagout procedures.
1. Remove front trim panel.
2. Disconnect rinse motor connections, 2MTR-1,
2MTR-2 and Ground.
Fig. 20
3. Remove LEFT AND RIGHT TRIM PANELS.
SG, SU-L, SU-H DISHWASHERS - REMOVAL AND REPLACEMENT OF PARTS
Page 11 of 59 F45577 (1215)
