STERO SG - CONTROL BOARD WIRE CONNECTIONS

JUMPER COMPONENT ACTION
J40 DO NOT USE N/A
J47 KEYPAD - POWER BUTTON POWER BUTTON
J48 KEYPAD - HIDDEN BUTTON HIDDEN BUTTON
J50 KEYPAD - UP BUTTON UP BUTTON
J53 RESET RESET MICRO
J54 DO NOT USE N/A

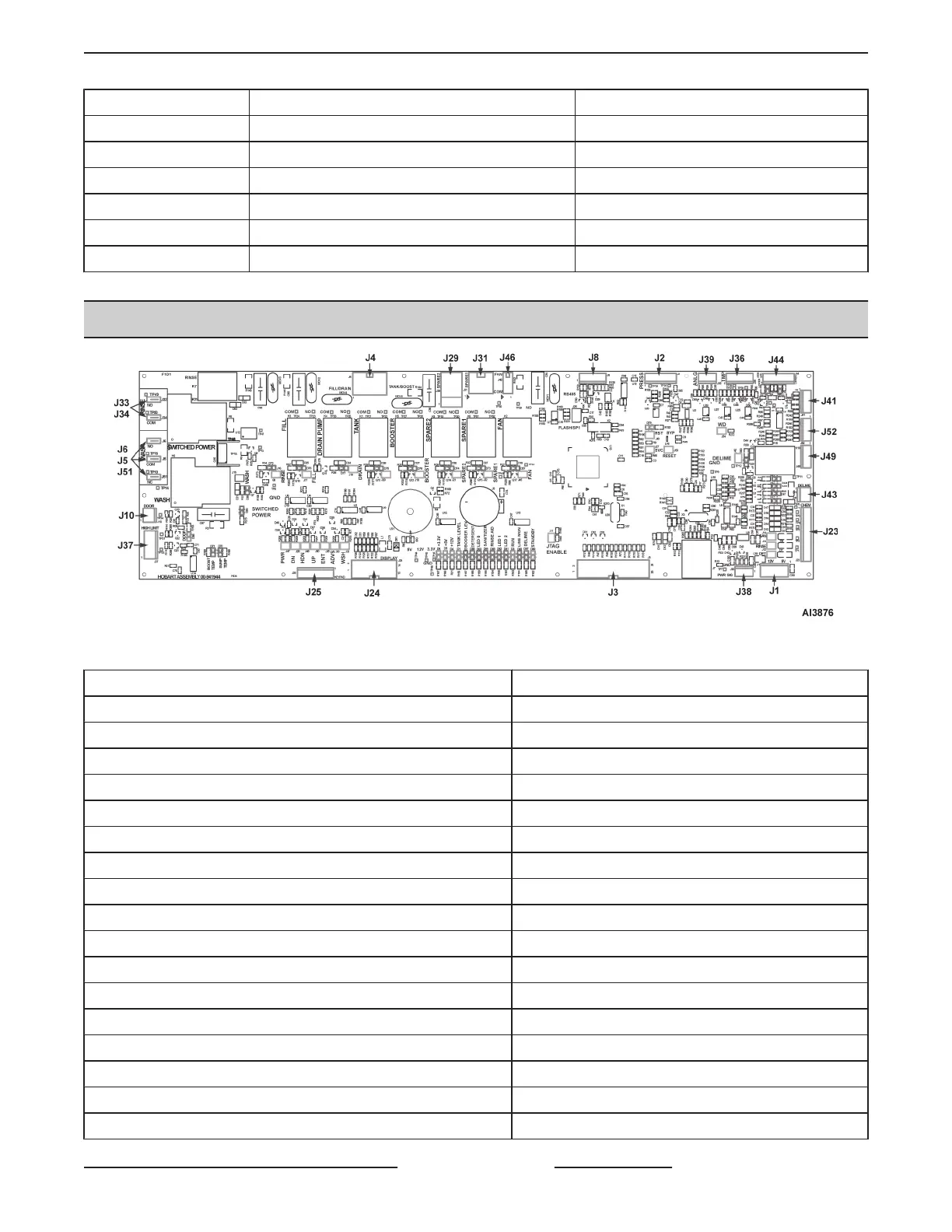

CONTROL BOARD WIRE CONNECTIONS
Fig. 54
WIRE CONNECTION
COMPONENT
J1 5V & 12V Supply
J2 Sump and Booster Water Level Pressure Sensors
J3 Not Used
J4 120V Control Circuit
J5 Wash Pump (Normally Open)
J6 Wash Pump
J8 RS485
J10 Door Switch
J23 Chemical Sensors & Pumps
J24 Display
J25 Keypad
J29 Not Used
J31 Not Used
J33 Rinse Pump
J34 Rinse Pump
J36 Sump, Booster, Rinse Temperature Probes
J37 Sump & Booster High Limits
