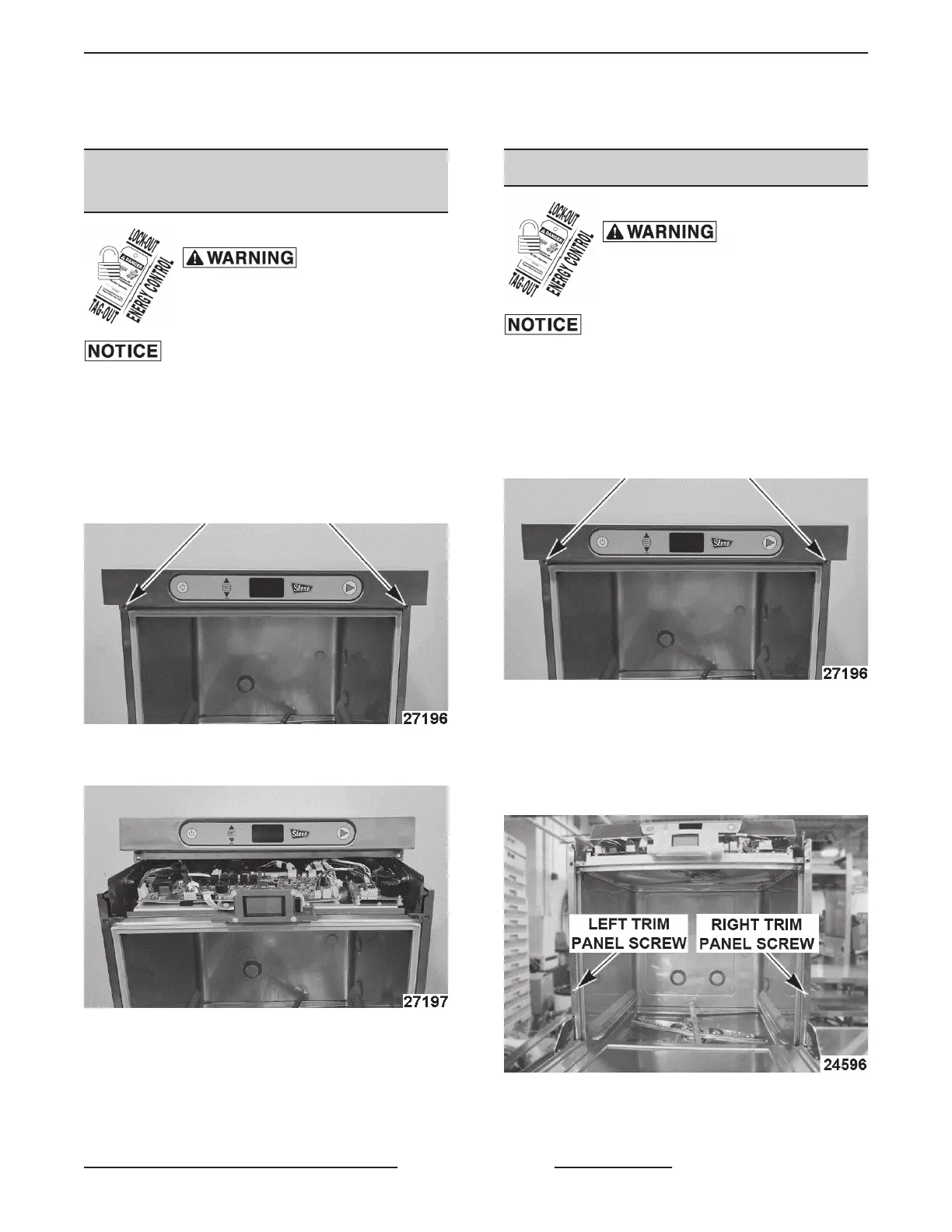

REMOVAL AND REPLACEMENT OF PARTS
CONTROL PANEL SERVICE
POSITION
Disconnect the
electrical power to the machine and
follow lockout / tagout procedures.
Certain components in this system are
subject to damage by electrostatic discharge during
field repairs. A field service grounding kit is required
to prevent damage. The field service kit must be used
anytime the control board is handled.
1. Pull dishwasher out from underneath counter.
2. Open door and remove two screws using #3
Phillips screwdriver.
Fig. 2
3. Pull out control cover, then hinge up and back.
Fig. 3
4. Reverse procedure to install.
5. Check for proper operation.
LEFT AND RIGHT TRIM PANELS
Disconnect the
electrical power to the machine and
follow lockout / tagout procedures.
Certain components in this system are
subject to damage by electrostatic discharge during
field repairs. A field service grounding kit is required
to prevent damage. The field service kit must be used
anytime the control board is handled.
Control Panel Service Position
1. Open door and remove (2) screws.
Fig. 4
2. Slide control cover forward (Approximately 2-3").
Left and Right Trim Panel Removal
1. Remove left and right trim panel screws, using #3
Phillips screwdriver.
Fig. 5
2. Remove left and right trim panels.
3. Close unit door.
