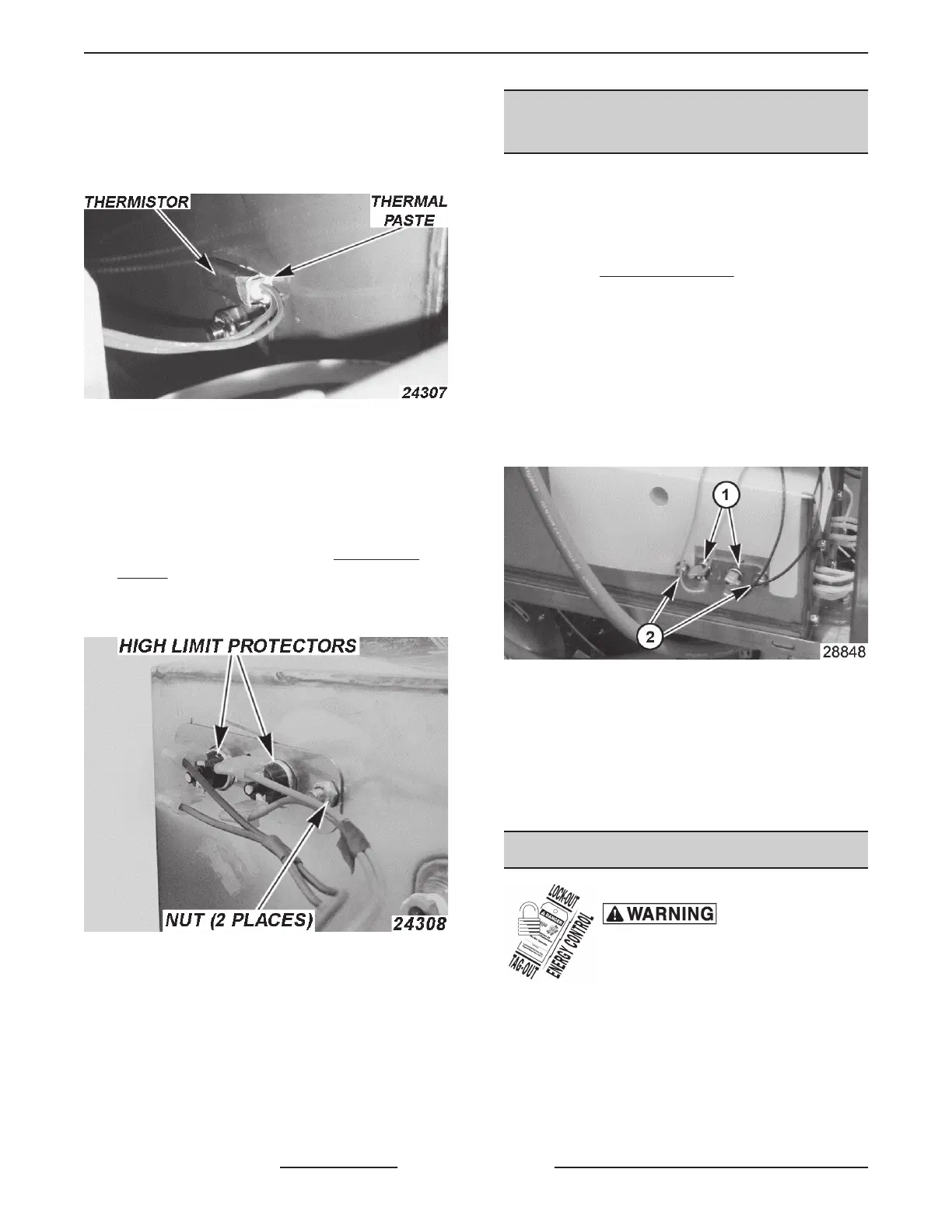

NOTE: When installing thermistor, verify there is
thermal paste on the side of the thermistor that is
mounted to the booster. Mount tightly to booster
surface and in same position as from the factory.
Thermal paste can be purchased at local store.
Fig. 36
3. Reverse procedure to install.
4. Check for proper operation.
High Limit Protectors
1. Remove front, left, and right trim panels.
2. Remove 2 screws and position
FILL VALVE
(1SOL) out of the way.
3. Remove mounting bracket for 3TAS / 4TAS high
limit protectors.
Fig. 37
4. Remove high limit protector.
5. Reverse procedure to install.
6. Check for proper operation.
SUMP THERMISTOR & HIGH LIMIT
PROTECTION
NOTE: Before replacing the High Limit, push reset
button on face of both high limit protectors. Verify that
this does not fix issue before proceeding.
1. Drain the sump.
2. Remove
LEFT SIDE PANEL.
3. For Surface Mounted Thermistor, remove
mounting nut and disconnect lead wires at
connector.
NOTE: When installing thermistor, mount tightly to
booster surface and in same position as from the
factory.
4. For High Limit Protectors, remove electrical
connections at high limits [1] and heater element.
Fig. 38
5. Remove sump heater mounting nuts [2].
6. Remove high limit protector mounting bracket.
7. Remove high limit protector.
8. Reverse procedure to install.
9. Check for proper operation.
AIR GAP
Disconnect the
electrical power to the machine and
follow lockout / tagout procedures.
1. Remove right side panel.
2. Remove air gap mounting screw.
SG, SU-L, SU-H DISHWASHERS - REMOVAL AND REPLACEMENT OF PARTS
F45577 (1215) Page 16 of 59
