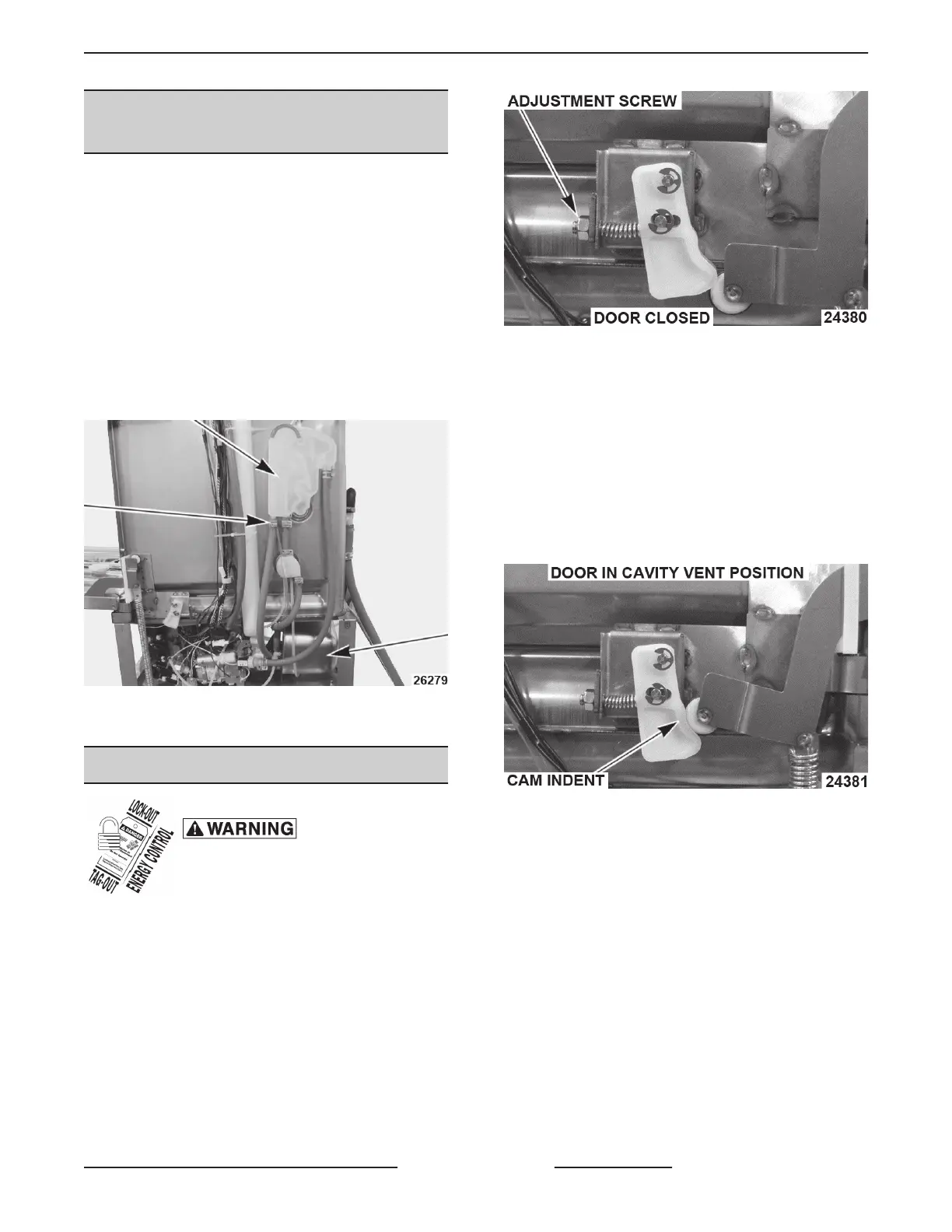

PURGE BOOSTER/HOLDING TANK
FOR SERVICE
NOTE: Booster or holding tank will still have 1" to
1-1/2" of water inside after purging.
If rinse pump operational:
1. Place dishwasher in .
2. Short rinse pump pins (J16) on control board to
operate rinse pump.
If rinse pump not operational:
1. Remove right side panel.
2. Remove hose from air gap that runs to bottom of
booster/rinse tank.
Fig. 46
3. Drain water in pan.
DOOR ADJUSTMENT
Disconnect the
electrical power to the machine and
follow lockout / tagout procedures.
1. Remove left and right panels as necessary.
2. Close door.
3. Roller should be positioned below cam to hold
the door in place.
Fig. 47
A. If door is not held closed, loosen lock nut
and turn screw clockwise.
B. If door is hard to open, loosen lock nut and
turn screw counterclockwise.
C. Tighten lock nut.
4. Open door a few inches until the roller is
positioned in the indent of the cam. The door
should stay in this position until moved by the
operator.
Fig. 48
5. Install panels and check for proper operation.
SG, SU-L, SU-H DISHWASHERS - SERVICE PROCEDURES AND ADJUSTMENTS
Page 31 of 59 F45577 (1215)
