13. Remove wash pipe assembly.
NOTE: If any tubes or wiring are routed between
wash pipe and rinse hose, disconnect rinse hose at
rinse tee to free tubes/wiring.
14. Transfer rinse hosing to replacement wash pipe.
15. Replace wash pipe O-rings.
16. Reverse procedure to install.
17. Check for proper operation.
WASH PUMP/MOTOR (1MTR)
Disconnect the
electrical power to the machine and
follow lockout / tagout procedures.
1. Remove front and right trim panels.
2.
PURGE BOOSTER/HOLDING TANK FOR
SERVICE
3. Remove
RINSE PUMP with fill valve (1SOL)
attached for a path to remove wash pump/motor
assembly.
NOTE: Stainless steel fill valve intake hose can
remain connected, but slack will need to be fed
through back of machine to clear assembly out of the
way.

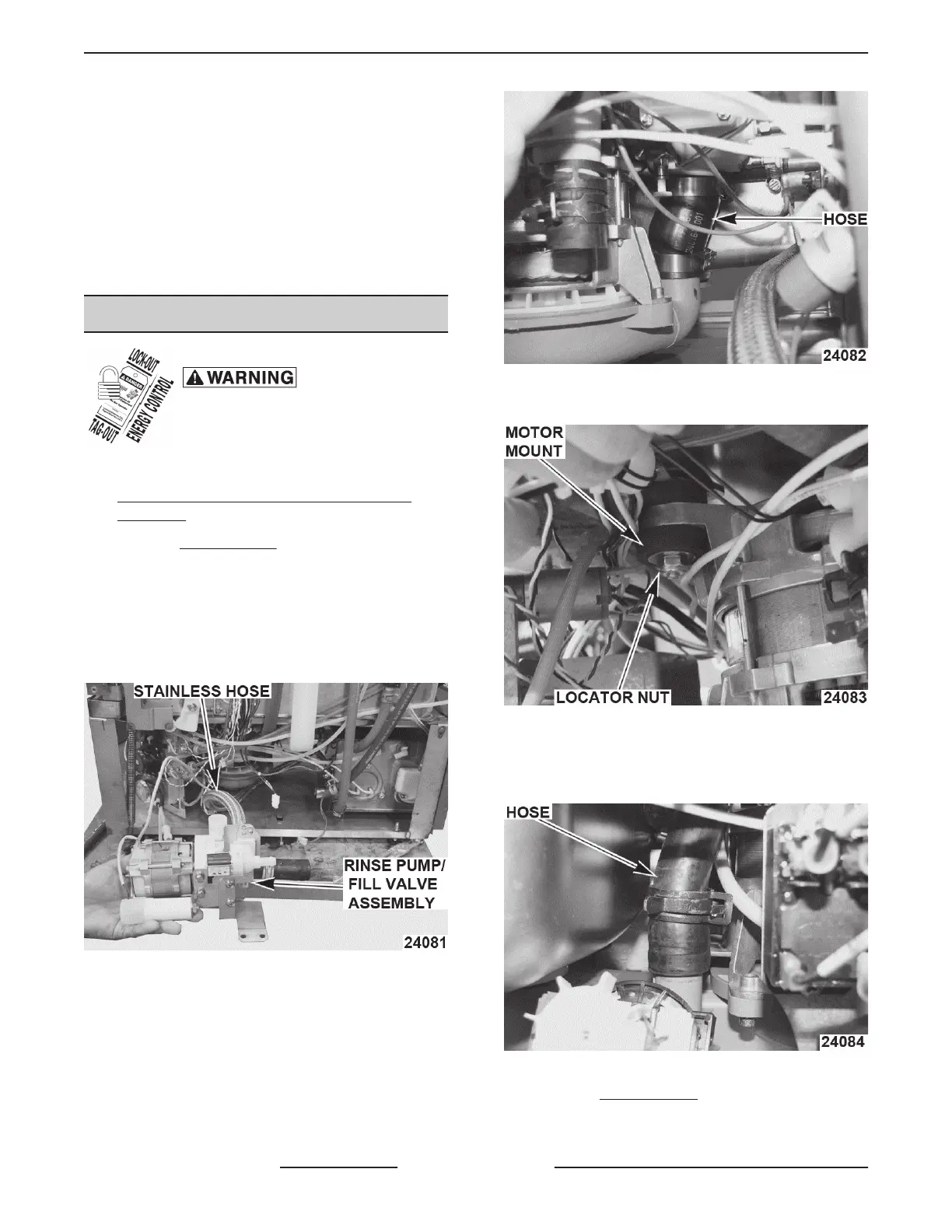

Fig. 29
4. Remove any chemical tubing blocking removal
through the right side.
5. Disconnect pump manifold hose.
Fig. 30
6. Remove locator nut and rubber motor mount.
Fig. 31
7. From front of machine, unhook drain hose to
pump manifold and disconnect 1MTR
connections.
Fig. 32
8. Remove DRAIN PUMP.
9. Open door and remove strainers.
SG, SU-L, SU-H DISHWASHERS - REMOVAL AND REPLACEMENT OF PARTS
