STERO SG - POWER SUPPLY BOARD LEDs & TEST POINTS

J38 12V Control
J39 Not Used
J41 Not Used
J49 Not Used
J51 Wash Pump (Normally Closed)
J52 Not Used

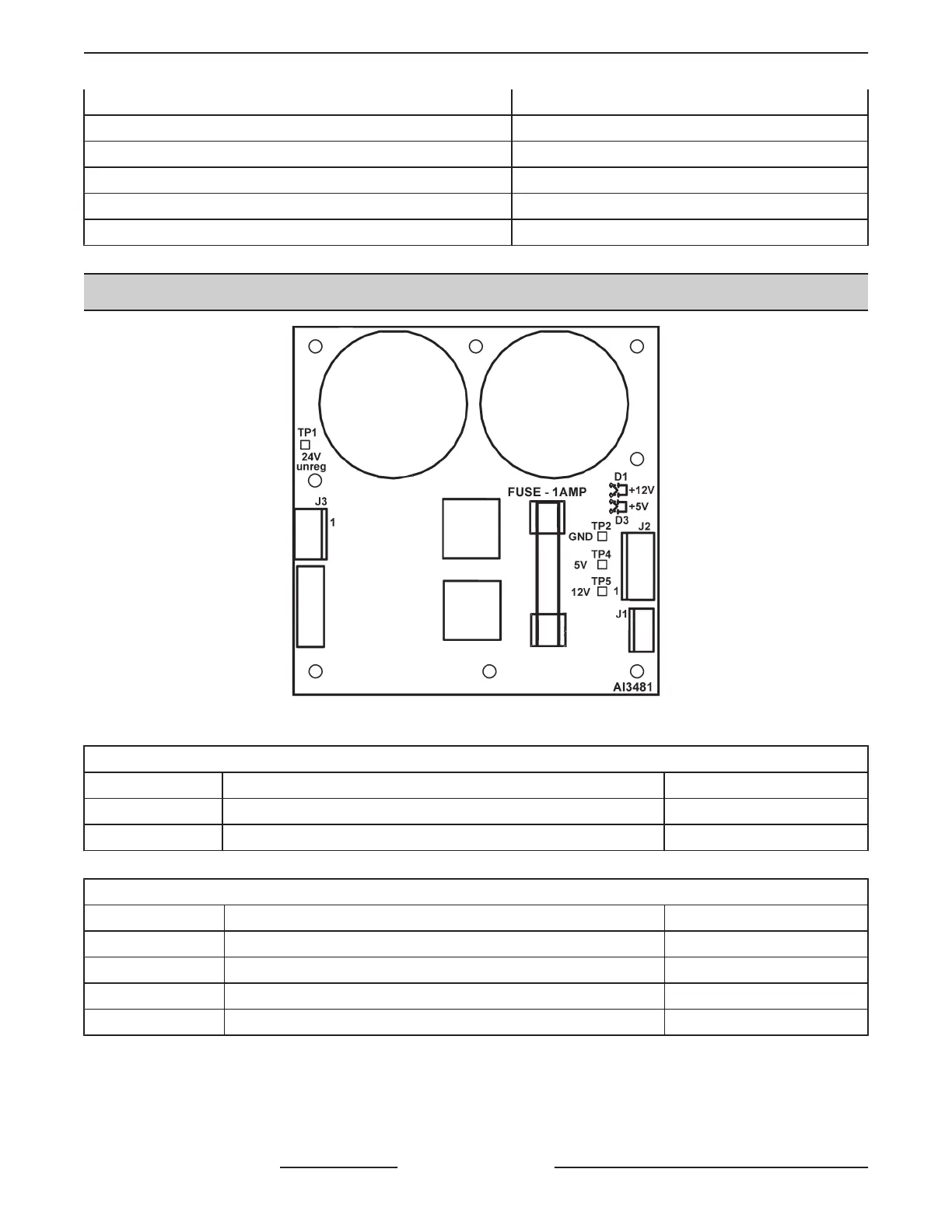

POWER SUPPLY BOARD LEDs & TEST POINTS
Fig. 55
POWER SUPPLY BOARD LEDs
Designation Function Color
D1 +12VDC ON Green
D3 +5VDC ON Green
POWER SUPPLY BOARD TEST POINTS
Designation Function Voltage or Ground
TP1 24V Unregulated 24V
TP2 Common GND
TP4 +5VDC 4.9-5VDC
TP5 +12VDC 11-12VDC
