INSTALLATION
Installation alternatives
ENGLISH
13.1 Electrical connection from above on unfinished
walls
30
D0000076507
1

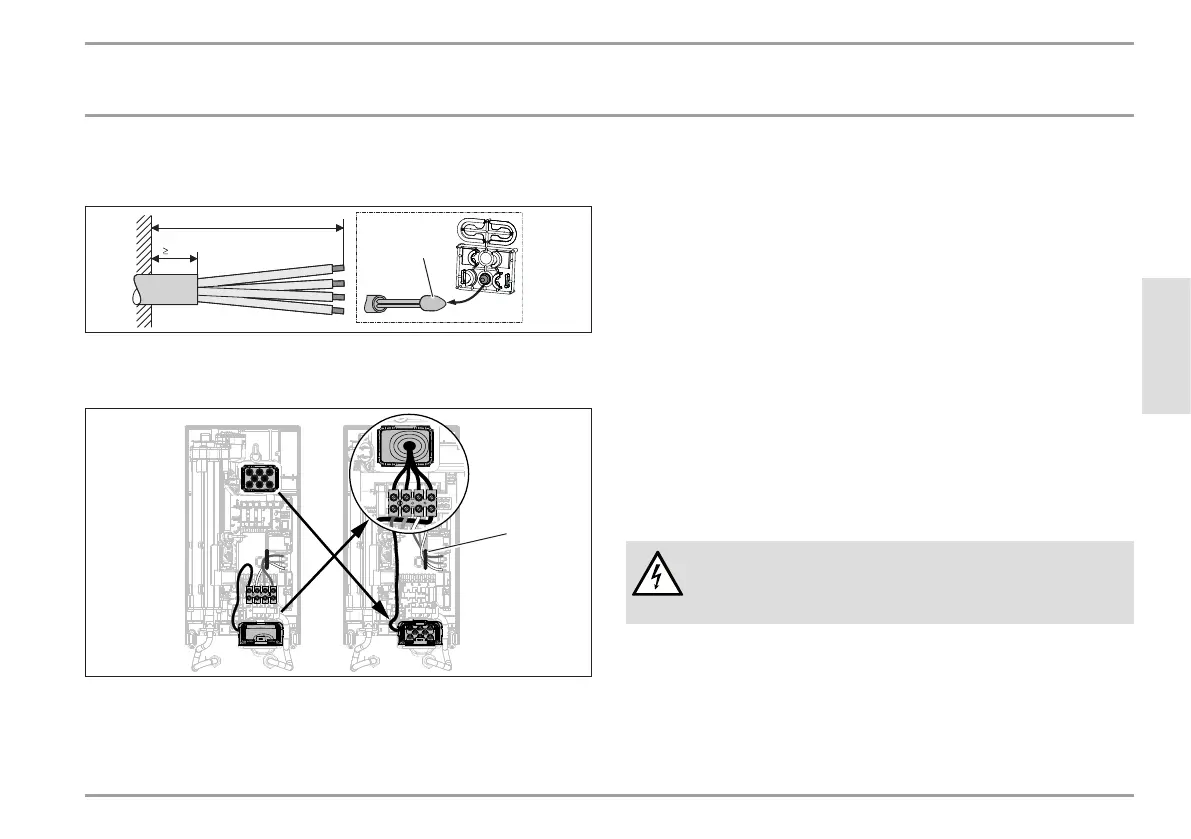

1 Cable entry installation aid
Prepare the power cable.
D0000053282
1
1 Cable routing
Reposition the mains terminal from the bottom to the top. To
do this, undo the fixing screw. Turn the mains terminal with
connecting cables 180° clockwise. Route the cable around
the cable guide when doing so. Secure the mains terminal in
place.
Replace the cable grommets.
Install the cable grommet from the top at the bottom.
Pull the cable grommet over the cable sheath of the power
cable.
Install the appliance on the threaded studs of the wall
mounting bracket.
Push the back panel firmly against the wall. Lock the fixing
toggle by turning it 90° clockwise.
Pull the cable grommets into the back panel until both lock-
ing tabs engage.
Connect the power cable to the mains terminal.
WARNING Electrocution
The connecting wires must not protrude beyond the level
of the mains terminal.
