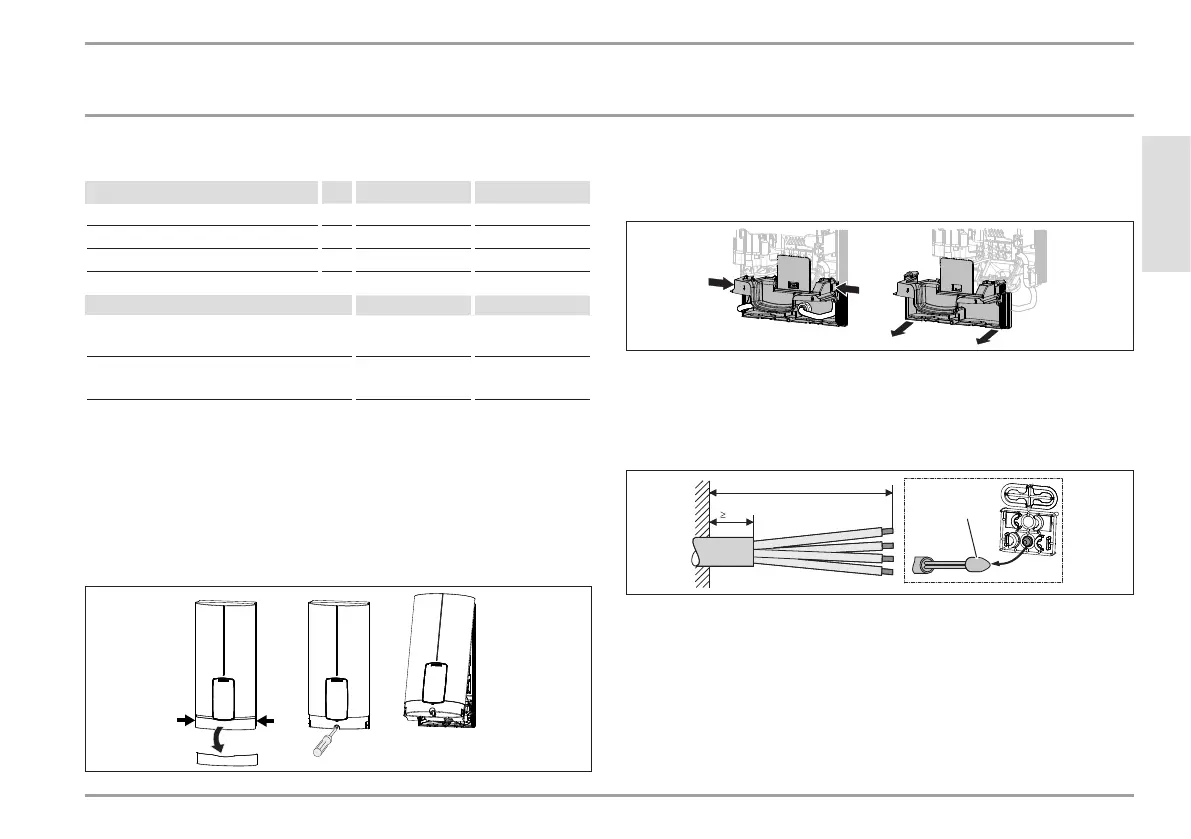

Page #25 background image
DEUTSCH
www.stiebel-eltron.com DHE | 25
INSTALLATION
Montage
11. Montage
Werkseinstellungen DHE 18/21/24 DHE 27
Interner Verbrühschutz °C 60 60
Anschlussleistung kW 21 27
Anschlussleistung wählbar x -
Standardmontage DHE 18/21/24 DHE 27
Elektroanschluss unten, Unterputz-
Installation
x x
Wasseranschluss Unterputz-Instal-
lation
x x
Weitere Montagemöglichkeiten siehe Kapitel „Montage-Alterna-
tiven.
11.1 Standardmontage
Gerät öffnen
D0000053271
Öffnen Sie das Gerät, indem Sie die Blende seitlich anfassen
und von der Gerätekappe nach vorn abziehen. Lösen Sie die
Schraube. Schwenken Sie die Gerätekappe auf.
D0000053272
Trennen Sie die Rückwand, indem Sie die beiden Rasthaken
drücken und das Rückwand-Unterteil nach vorn abziehen.
Netzanschlusskabel vorbereiten Unterputz unten
160
30
D0000053273
1
1 Montagehilfe zur Kabeleinführung
Bereiten Sie das Netzanschlusskabel vor.
