STIEBEL ELTRON DHE 18/21/24 User Manual

www.stiebel-eltron.com DHE | 99
INSTALLATION

ENGLISH

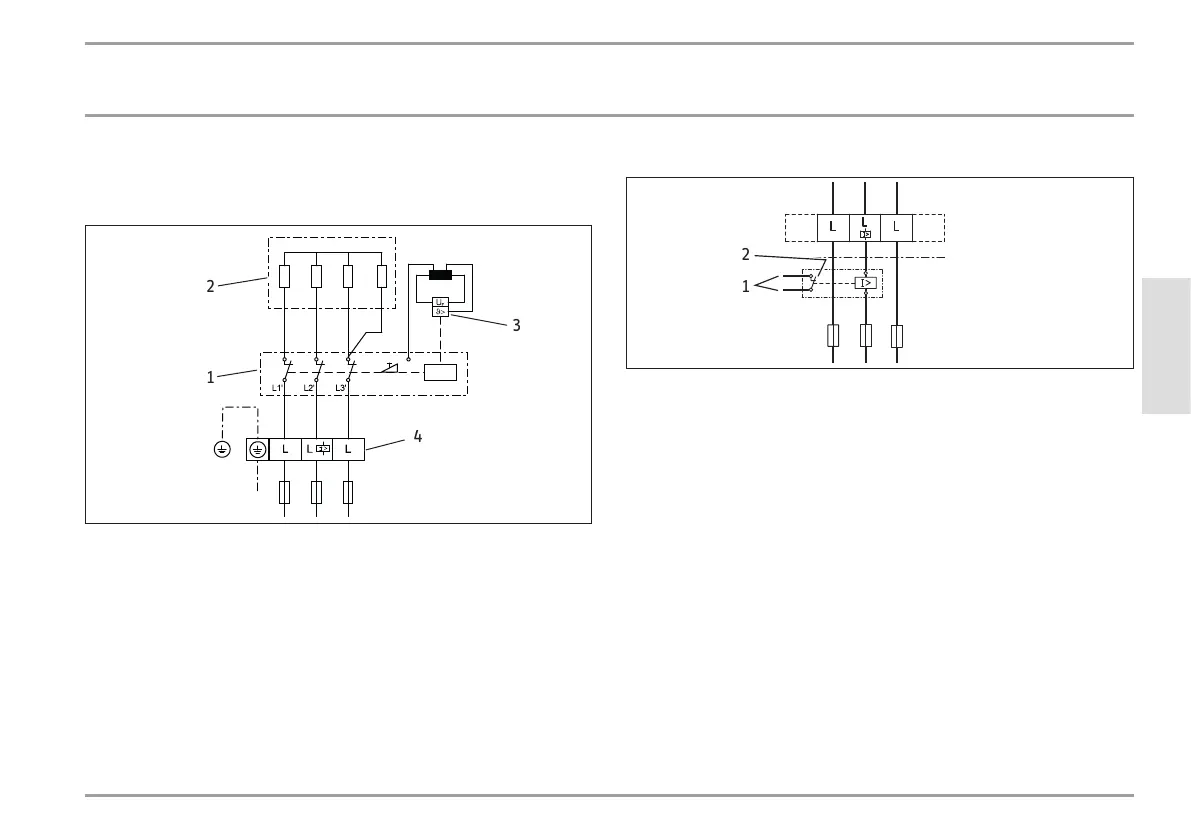

17.2 Wiring diagram
3/PE ~ 380-415V
D0000053424
1
3
4
2
1 Power PCB with integral safety switch
2 Bare wire heating system
3 High limit safety cut-out
4 Mains terminal
Priority control with LR 1-A
85�02�02�0003�
2
1
1 Control cable to the contactor of the second appliance
(e.g. electric storage heater)
2 Control contact drops out when switching the instantaneous
water heater on.

STIEBEL ELTRON DHE 18/21/24 Specifications

General

Type	Tankless (instantaneous)
Fuel type	Electric
Boiler system	Solo boiler system
Product color	White
Heater location	-
Placement supported	Vertical
International Protection (IP) code	IP25
Efficiency	39 %
Noise level	15 dB
Maximum power	24000 W
Thermostat range	20 - 60 °C
Domestic Hot Water (DHW) flow	- l/min
AC input voltage	400 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A+ to F
Annual energy consumption	476 kWh
Built-in display	Yes

Weight and Dimensions

Depth	116 mm
Width	225 mm
Height	466 mm
Weight	3100 g
