25MS 341, MS 361, MS 361 C

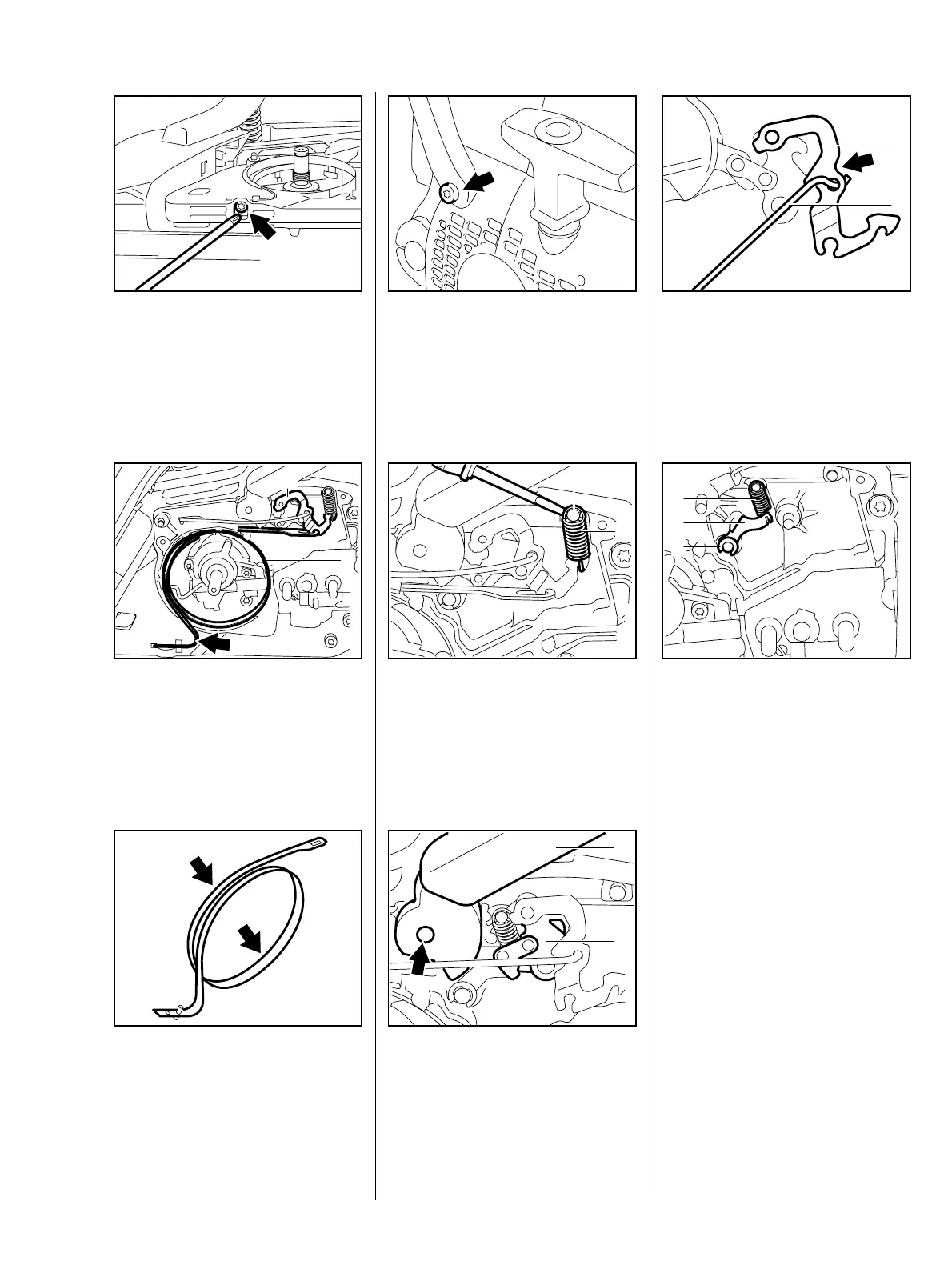

: Take out the screw (arrow).
VA
212RA025
: Pry the brake band (1) out of the
crankcase (arrow).
: Disconnect the brake band from
the brake lever (2).
VA
212RA020
1
2
Install a new brake band if there are
noticeable signs of wear (large
areas on inside diameter and/or
parts of outside diameter) and its
remaining thickness is less than
0.6 mm.
VA
176RA031
: Take out the screw (arrow).
VA
212RA021
: Carefully pry the spring (1) off the
pivot pin (2).
VA
212RA022
1
2
: Pry the hand guard (1) with brake
lever (2) off the pivot pin (arrow).
VA
212RA023
1
2
: Disconnect the brake cable (1)
from the brake lever (2).
– Pull the brake lever out of the
hand guard.
VA
148RA075
2
1
: Disconnect the spring (1).
: Remove the E-clip (3).
: Remove the lever (2) with
spring (1).
Clean all disassembled parts in
212RA024
VA
1
2
3
standard solvent-based degreasant
containing no chlorinated or
halogenated hydrocarbons. Inspect
parts and replace if damaged.
If the groove in the brake spring
anchor pin is worn, follow the steps
below to install a new pin:
