Online version - not for reprint
96 MS 341, MS 361, MS 361 C
– Remove the ignition module –
b 7.1.2
– Remove the flywheel – b 7.1.5

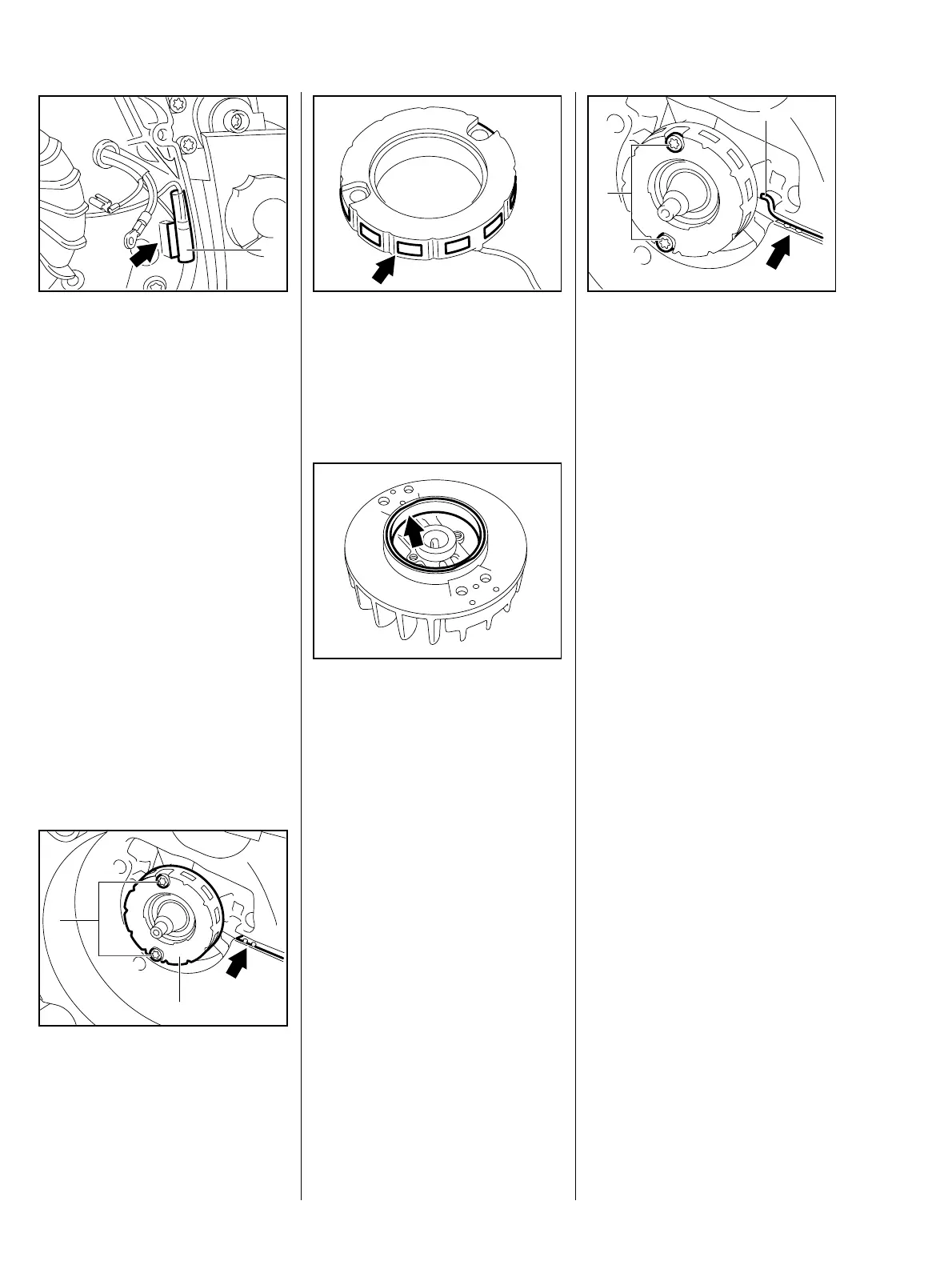

: Remove the wire from the guide
(arrow).
VA
212RA184
1
: Push back the insulating tube (1)
and separate the pin and socket
connector.
: Take the wire out of the guide
(arrow).
: Take out the screws (1).
: Remove the generator (2).
VA
212RA061
2
1
: Check generator and poles
(arrow) for cracks or other
damage. If damage is found,
replace the generator.
VA
212RA270
: Check magnet ring (arrow) in
flywheel for cracks or other
damage. If damage is found,
replace the flywheel.
Install in the reverse sequence.
VA
212RA271
: Place generator in position with
connecting wire (1) facing the
crankcase.
: Position the generator wire at the
bottom of the recess (arrow).
– Install screws (2) with Loctite 242
212RA272
VA
1
2
– b 16.
: Tighten down the screws (2)
firmly – b 3.5
Assemble all other parts in the
reverse sequence.
14.7 Generator
