75MS 341, MS 361, MS 361 C

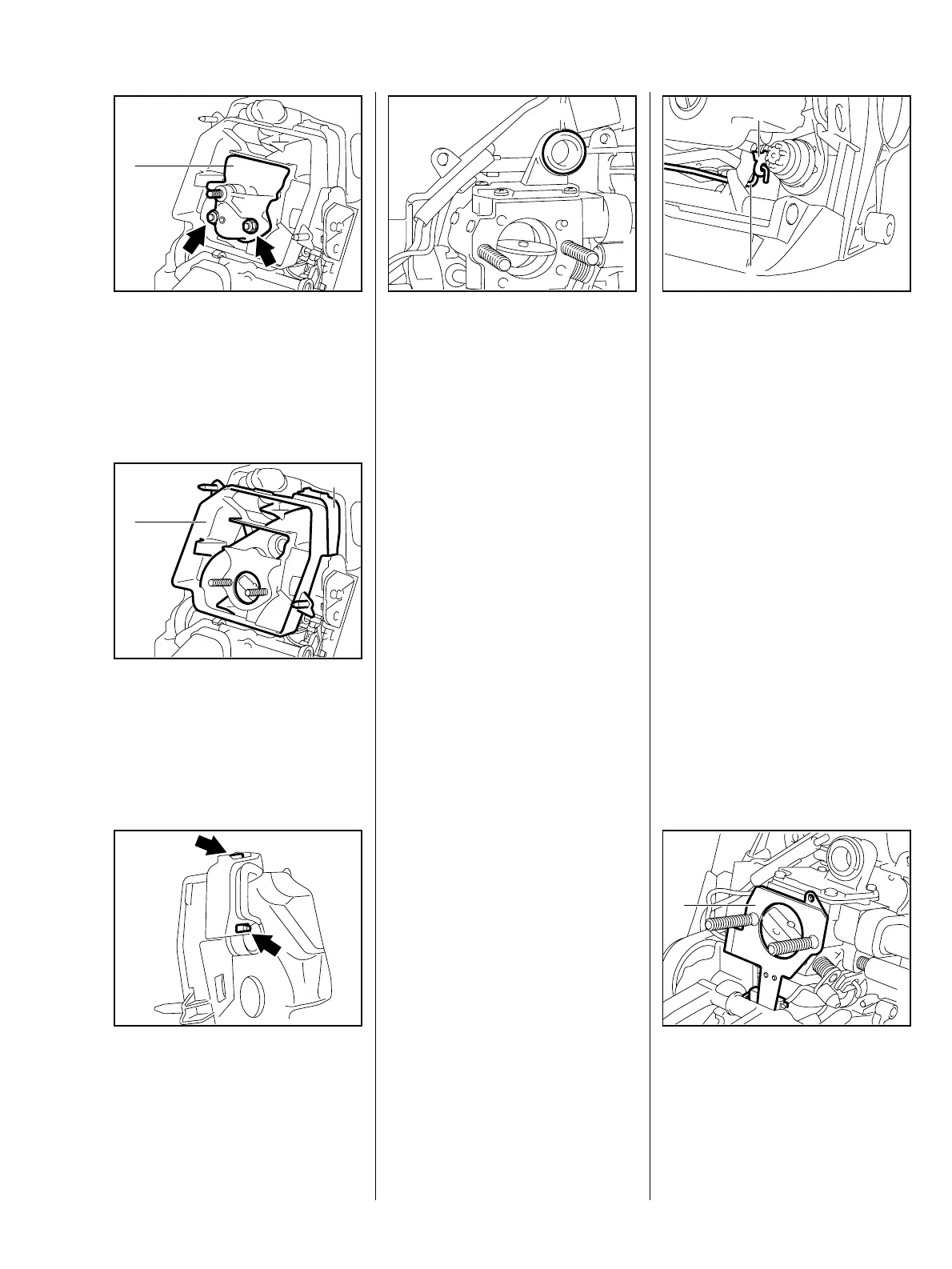

: Unscrew the nuts (arrows).
: Pull off the baffle (1).
VA
212RA147
1
: Remove the filter base (1).
: Remove the baffle plate (2).
Reassemble in the reverse
sequence.
VA
212RA148
2
1
: Check that baffle plate is
correctly fitted (arrows).
VA
212RA149
– Before installing the air filter,
check that O-ring (1) is properly
seated and not damaged.
Reassemble all other parts in the
reverse sequence.
212RA304
VA
1
– On machines without
Quick-Stop Super, remove the
throttle rod from the trigger –
b 10.2.1
– On machines with
QuickStop Super, remove the
throttle rod from the trigger –
212RA295
VA
2
1
b 10.2.2
: Disconnect the throttle rod (1)
from the throttle shaft (2).
On machines with carburetor
heating
: Remove the heating plate (1).
VA
212RA151
1
12.2 Carburetor
12.2.1 Removing and Installing
