71MS 341, MS 361, MS 361 C

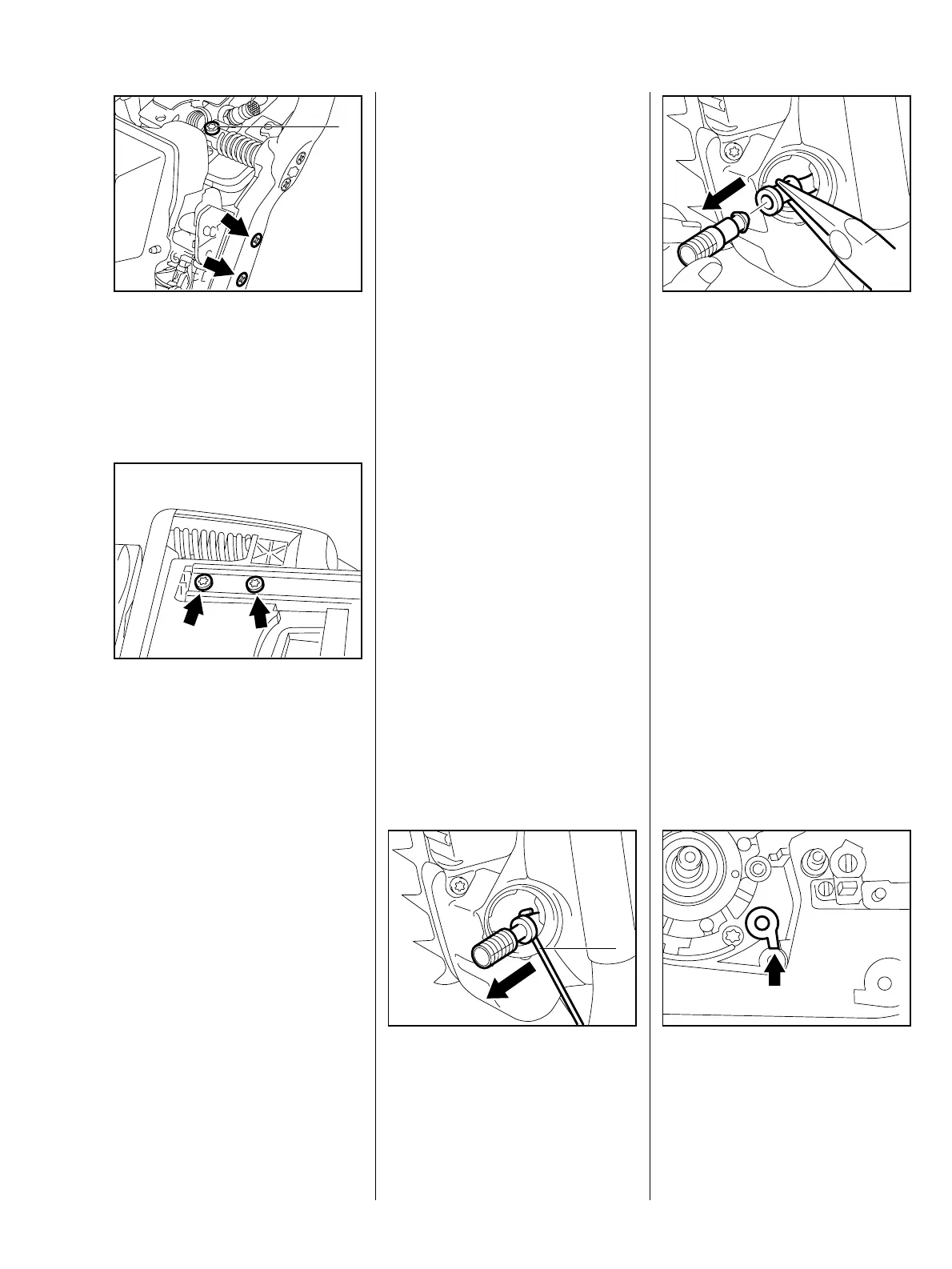

– Remove the shroud – b 6.2
: Take out the screw (1).
: Take out the screws (arrows).
VA
212RA247
1
: Take out the screws (arrows).
– Remove the front handle.
Reassemble in the reverse
sequence.
VA
212RA248
Machines with handle heating
– Check the heating element –
b 14.4
– Remove the front handle with
heating element – b 14.5
Impurities gradually clog the fine
pores of the filter with minute
particles of dirt. This prevents the oil
pump from supplying sufficient oil to
the bar and chain. In the event of
problems with the oil supply system,
first check the oil tank and the
pickup body. Clean the oil tank if
necessary.
– Troubleshooting chart – b 4.3
Suction hose
– Unscrew the oil tank cap and
drain the oil tank.
Collect chain oil in a clean container
or dispose of it properly at an
approved disposal site.
: Use hook (1) 5910 893 8800 to
pull the pickup body out of the oil
tank.
Do not stretch the oil hose too much
during this operation.
VA
212RA137
1
: Pull the pickup body out of the
suction hose.
– Fit a new pickup body.
– Flush out the oil tank.
Reassemble in the reverse
VA
212RA138
sequence.
Suction hose
– On machines without
QuickStop Super, remove the
brake band – b 5.5.1
– On machines with
QuickStop Super, remove the
brake band – b 5.5.2
– Remove the oil pump – b 11.3.1
: Grip the tab (arrow) of the suction
hose with pliers and pull the
grommet out of the bore.
VA
212RA140
10.3 Front Handle 11. Chain Lubrication
11.1 Pickup Body /
Suction Hose
