24 MS 341, MS 361, MS 361 C

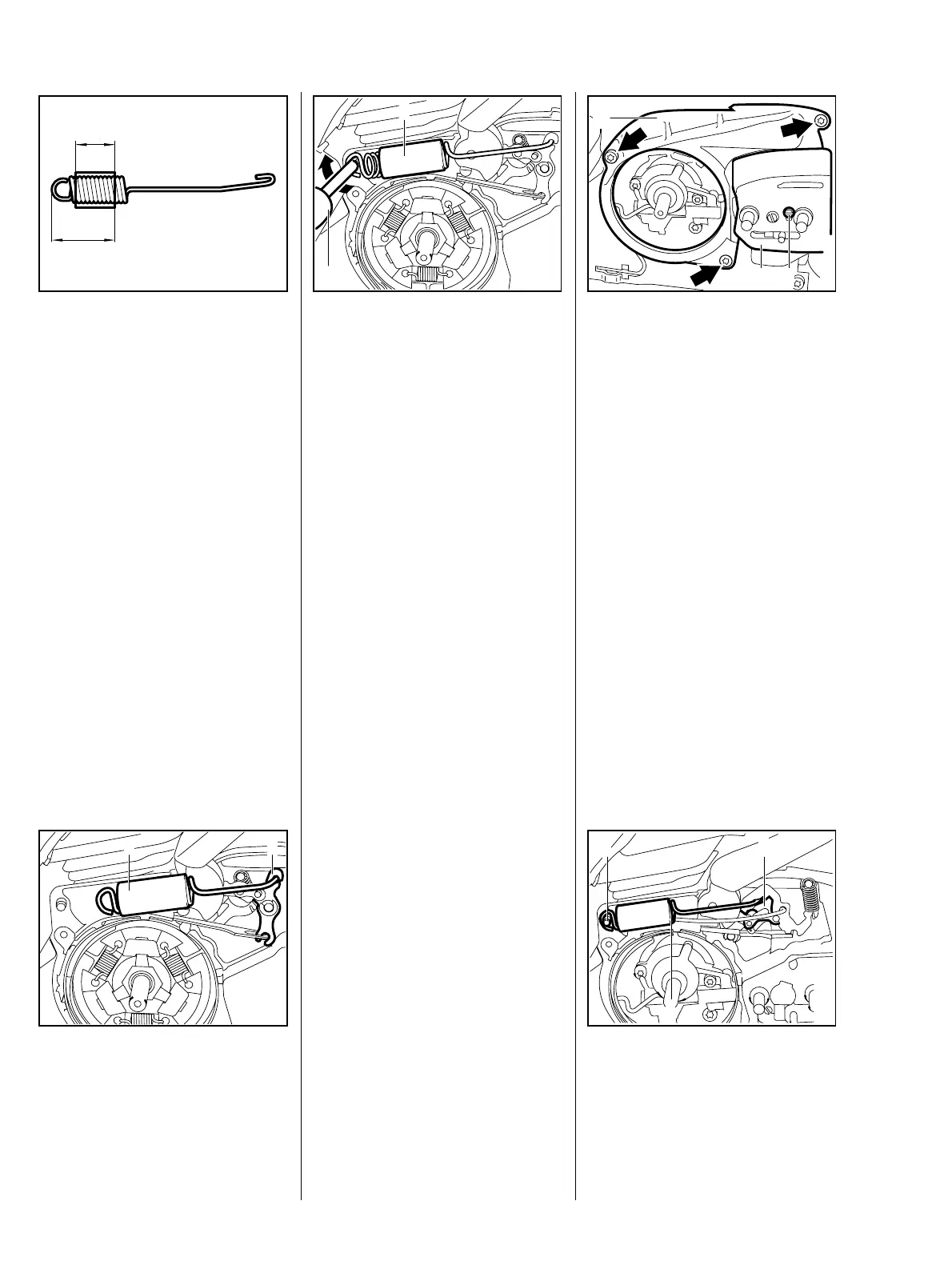

: Turns of brake spring must be
tightly against one another in the
relaxed condition. If this is not the
case, replace the brake spring.
Check correct position of
protective tube:
aa
b
VA
176RA046
a = 31 mm
b = 44 mm
: Hook the brake spring (1) to the
brake lever (2).
212RA290
VA
1 2
: Use the assembly tool
1117 890 0900 (2) to attach the
brake spring (1) to the anchor pin
(arrow).
Reassemble all other parts in the
reverse sequence.
212RA279
2
VA
1
– Check operation of chain brake –
b 5.5
Removing
– Troubleshooting chart – b 4.1
– Remove the clutch drum –
b 5.1
: Take out the screw (1).
212RA018
VA
2
1
3
: Remove the side plate (2).
: Take out the screws (arrows).
: Remove the cover (3).
– Engage the chain brake by
pushing the hand guard away
from the front handle.
: Carefully ease the brake spring
(1) off the anchor pin (2).
: Remove the brake spring (1) from
the brake lever (3).
212RA019
VA
32
1
5.5.2 Removing and Installing
(with QuickStop Super)
