76 MS 341, MS 361, MS 361 C

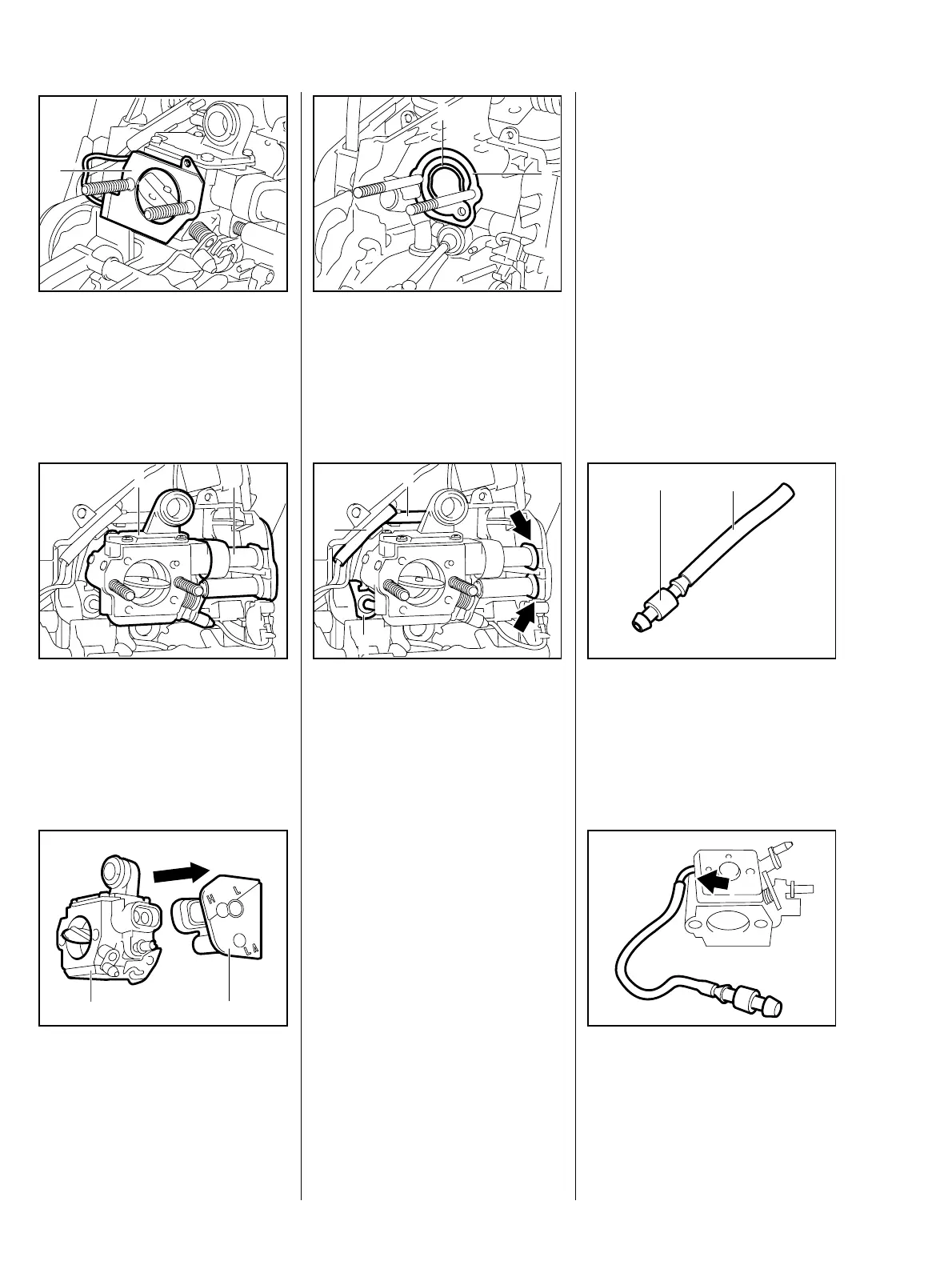

: Remove the heating element (1).
VA
212RA153
1
All machines
: Pull off the carburetor (1) with
grommet (2).
VA
212RA154
1 2
: Pull the grommet (1) off the
carburetor (2).
Reassemble in the reverse
sequence.
VA
212RA155
2 1
: Before fitting the carburetor,
check that the sleeve (1) and
washer (2) are properly seated.
VA
212RA056
1
2
– Push the grommet on to the
carburetor.
: When pushing the carburetor into
position, check that fuel hose (3)
is correctly seated.
: When pushing the carburetor into
VA
212RA156
1
2
3
position, make sure the edges
(arrows) of the grommet are
inside the tank housing.
: On machines with carburetor
heating, check that wires (1 + 2)
are properly positioned.
In the case of problems with the
carburetor or fuel supply system,
also check and clean or replace the
tank vent – b 12.6
The carburetor can be tested for
leaks with the carburetor and
crankcase tester 1106 850 2905.
– Remove the carburetor –
b 12.2.1
: Push the fuel line (1)
1110 141 8600 onto the
nipple (2) 0000 855 9200.
VA
143RA172
2 1
: Push the fuel line with nipple onto
the carburetor’s elbow connector.
VA
212RA157
12.2.2 Leakage Test
