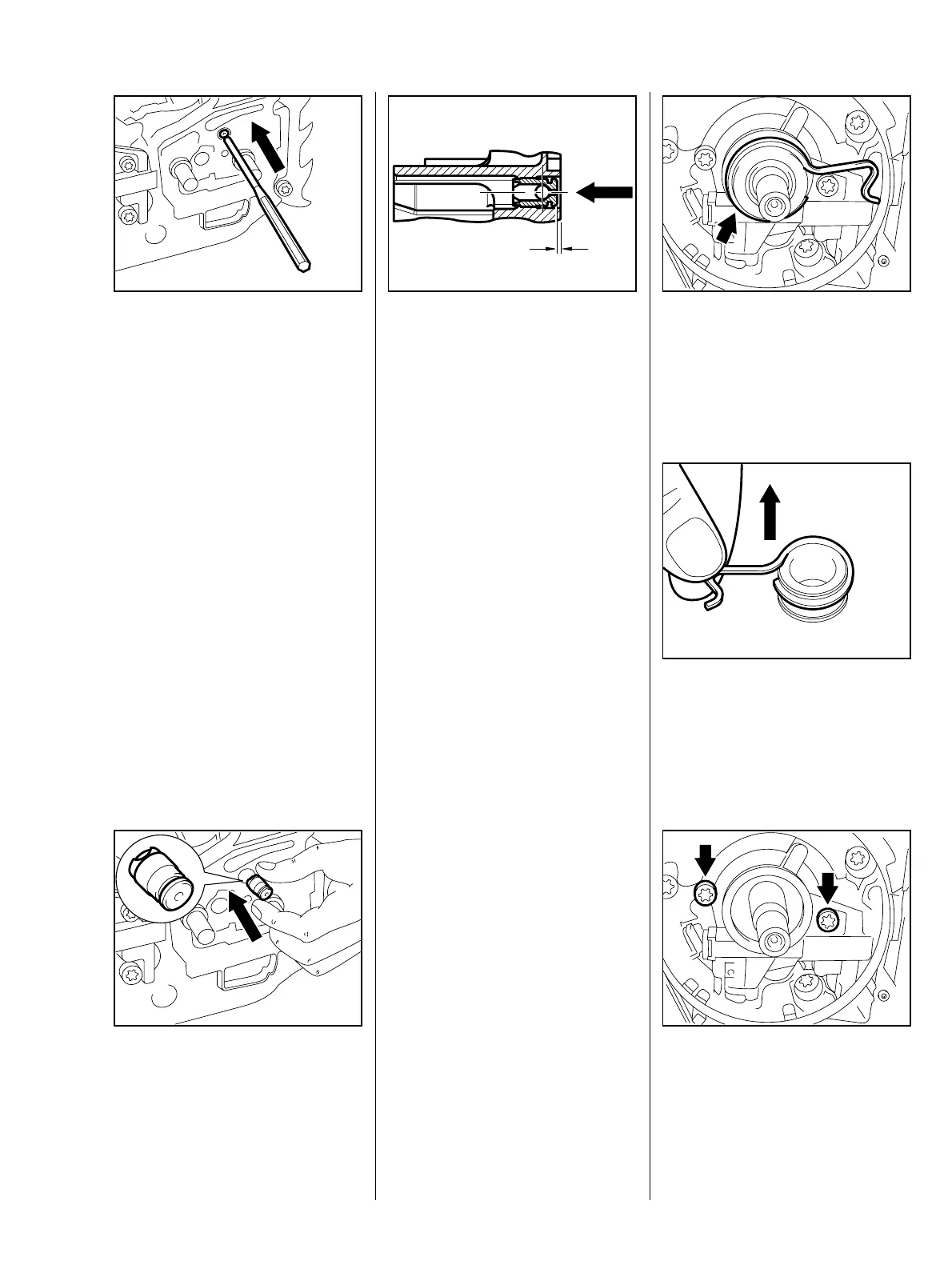

– Remove the oil tank cap.
– Drain the oil tank.
Collect chain oil in a clean container
or dispose of it properly at an
approved disposal site.
VA
212RA143
– Remove the inner side plate –
b 5.5.1 or 5.5.2.
: Use a 6 mm drift to carefully drive
the valve out of its seat and into
the oil tank.
– Remove the old valve from the oil
tank.
Reassemble in the reverse
sequence.
: Carefully insert the new valve in
the housing bore.
Check the correct installed position.
VA
212RA273
: Use a 6 mm drift to carefully
press home the new valve from
outside until it is about 0.8 –
1.2 mm below the housing face
(’a’ in illustration).
Reassemble all other parts in the
reverse sequence.
VA
212RA144
a
– Remove the clutch – b 5.4
: Pull the worm with drive spring
(arrow) out of the oil pump and off
the crankshaft stub.
VA
212RA145
: Take the drive spring off the
worm.
VA
176RA245
: Take out the screws (arrows).
– Pull the oil pump out of its seat.
VA
212RA146
