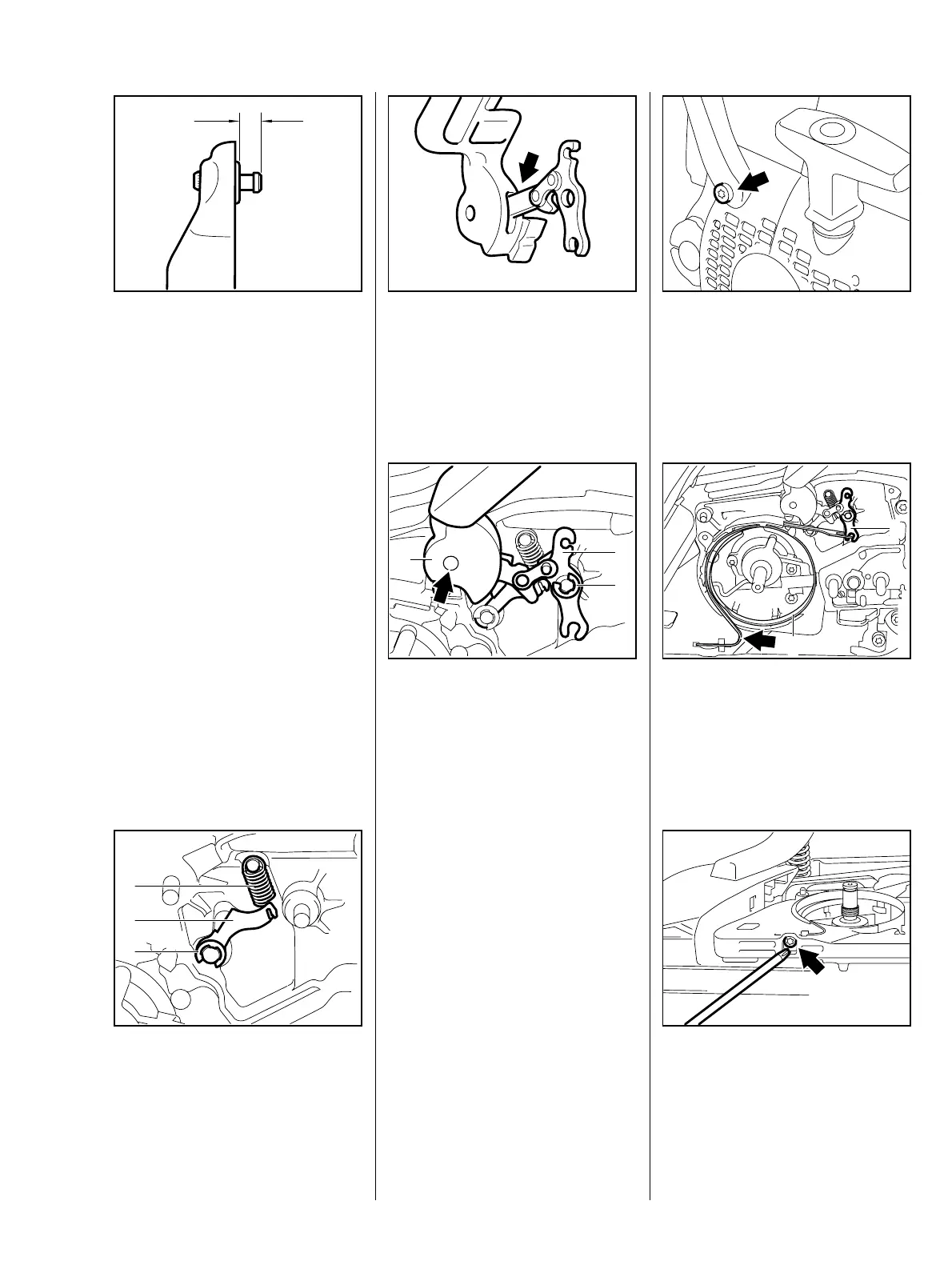

23MS 341, MS 361, MS 361 C
: Carefully tap home the pin
squarely to obtain dimension "a"
(about 4.3–4.7 mm).
– Install the cylinder – b 6.5.2
Coat all sliding and bearing points
with STIHL multipurpose grease –
VA
176RA036
a
b 16.
: Fit the lever (2).
: Fit the E-clip (3).
: Attach the spring (1).
212RA038
VA
1
2
3
: Insert the lever in the side of the
hand guard bearing boss.
Check that lever is installed
correctly.
VA
138RA012
: Position bearing boss (arrow) of
hand guard (2) against the pivot
pin and fit the other side of the
hand guard over the fan housing.
: Press the hand guard (2)
carefully downward, and push
the brake lever (3) onto its pivot
VA
212RA037
3
1
2
pin at the same time.
: Fit the E-clip (1).
Coat all sliding and bearing points
with STIHL multipurpose grease –
b 16.
Do not lubricate the brake band.
: Fit the screw (arrow) and tighten
it down firmly – b 3.5.
VA
212RA021
: Attach the brake band (1) to the
brake lever (2) and then push it
into the slot in the crankcase
(arrow).
VA
212RA036
2
1
: Fit the screw (arrow) and tighten
it down firmly – b 3.5
VA
212RA025
