81MS 341, MS 361, MS 361 C
– Inspect parts for damage and
wear and replace if necessary.
When installing, always use a new
pump piston.
Reassemble in the reverse
sequence.
Wear safety glasses while
installing the accelerator pump/
throttle shaft.
Note correct installed sequence of
the individual parts of the
accelerator pump: First fit the
spring (4), then the pump piston (2),
with the ball seat (arrow) facing you,
and the ball (1).
Use a suitable tool to press the
ball (1) down and fit the throttle
shaft.

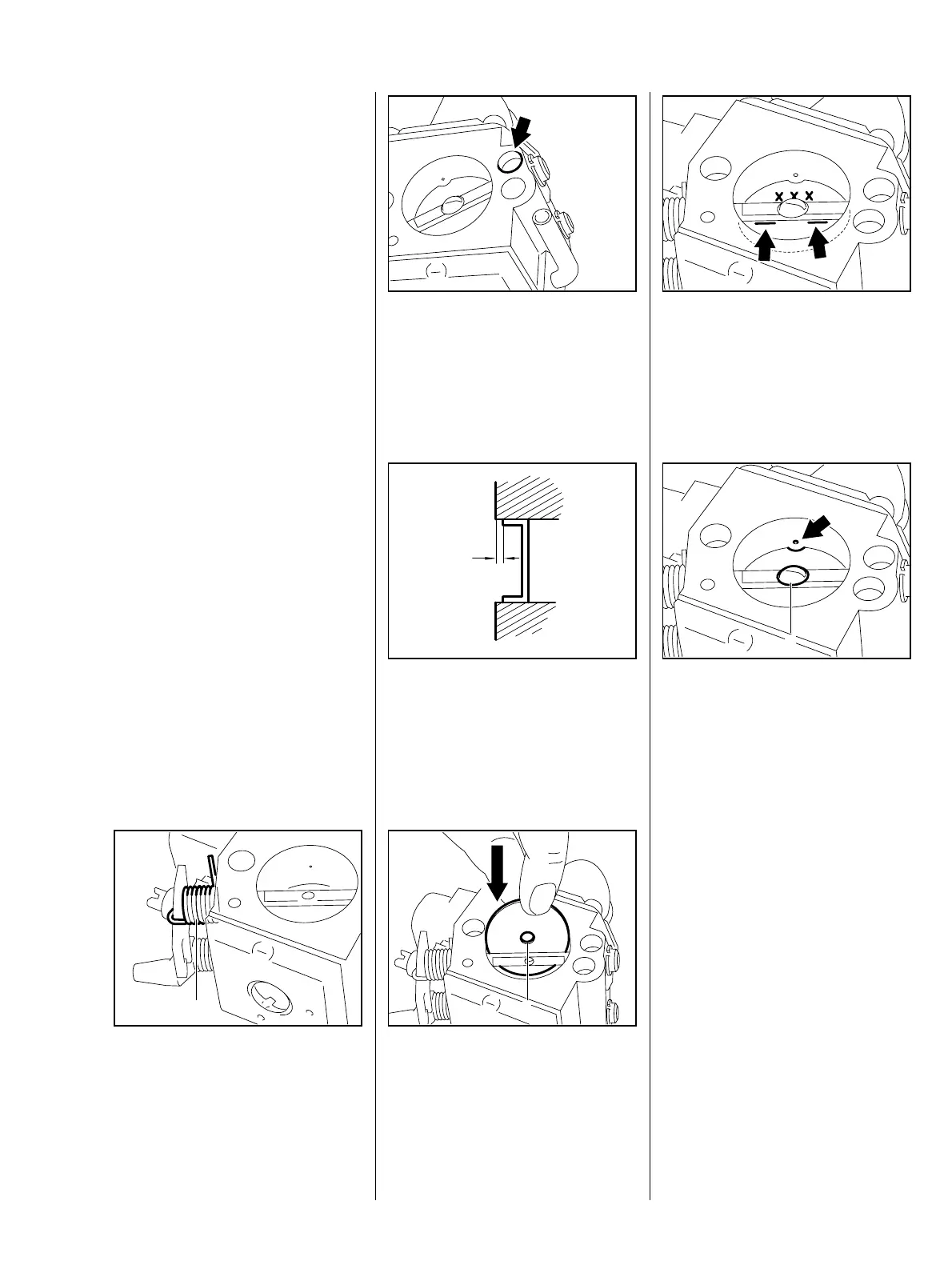

: Note correct installed position of
spring (1).
VA
146RA157
1
: Use a suitable tool to carefully
install a new sealing plug (arrow)
in the accelerator pump’s bore.
VA
212RA169
: Press home sealing plug so that it
is recessed 1 mm (dimension ’a’)
in the accelerator pump’s bore.
VA
146RA158
a
: Fit the throttle shutter (1) in the
shaft.
VA
146RA159
1
Check that the stamped digits face
you.
The two marks (see arrows) must
be parallel to the throttle shaft.
VA
146RA161
Check that the center of the notch in
the throttle shutter is in line with the
hole (arrow) in the carburetor body.
: Tighten the screw (1) moderately.
– Center the throttle shutter so that
it moves freely.
VA
146RA160
1
– Tighten down the screw (1)
firmly.
– Check freedom of movement
again.
