Tray Maintenance Replacing Tray Sheets
Page 63
© Copyright 2022 Stratasys. All rights reserved.
12. Insert the second gasket over the tray sheet. Confirm that all the pins are inserted through
the gasket holes and that the gasket is laying flat over the tray sheet surface.

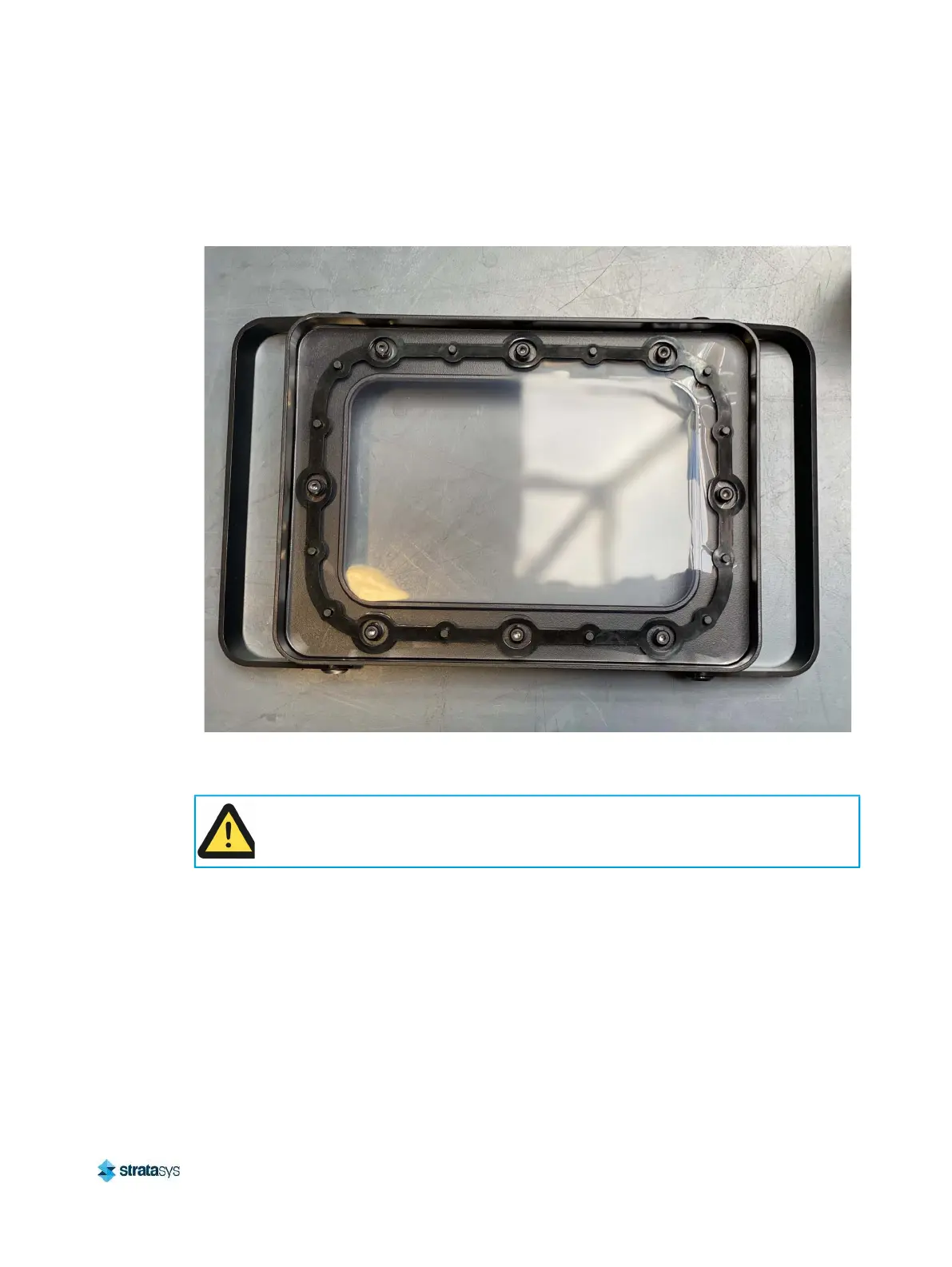

Figure 13: Second gasket
13. Place the tray bottom onto the sheet and press down gently.
Caution
Thumbscrew must be removed before tightening the tray bolts to prevent interference
between the thumbscrew and the tray bottom.
