Strobel KA-ED - Lubrication (Fig. 2); Transit Support; Direction of Rotation of the Machine

11 BA_KA-ED_A22_190313_en.doc
3.1 Lubrication (Fig. 2)
ATTENTION!
The machine must be oiled before first start. The maintenance
instructions according to the operating instructions must be
followed!

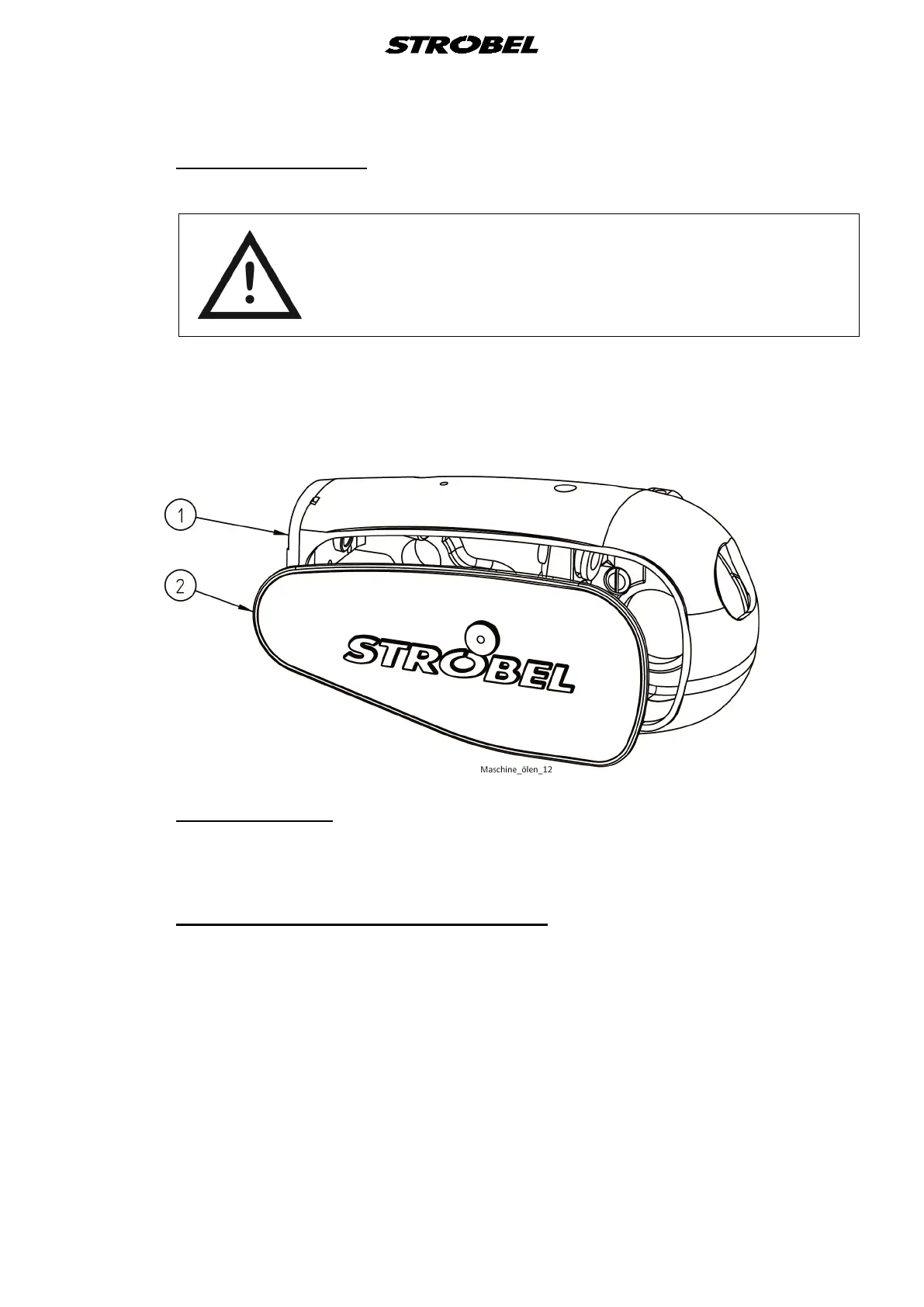

On the machine head all the points marked red.The lids (1) and (2) need to be screwed
off for this.
Fig. 2
3.2 Transit support
Remove carriage lock. Unscrew an angle bracket each at the bottom side of the
carriage.
3.3 Direction of rotation of the machine
Right machine half:
The correct rotation of the handwheel is counter-clockwise (left run) when
looking at it.
Left machine half:
The correct rotation of the handwheel is clockwise (right run) when looking at
it.Motor drive by tooth-belts
