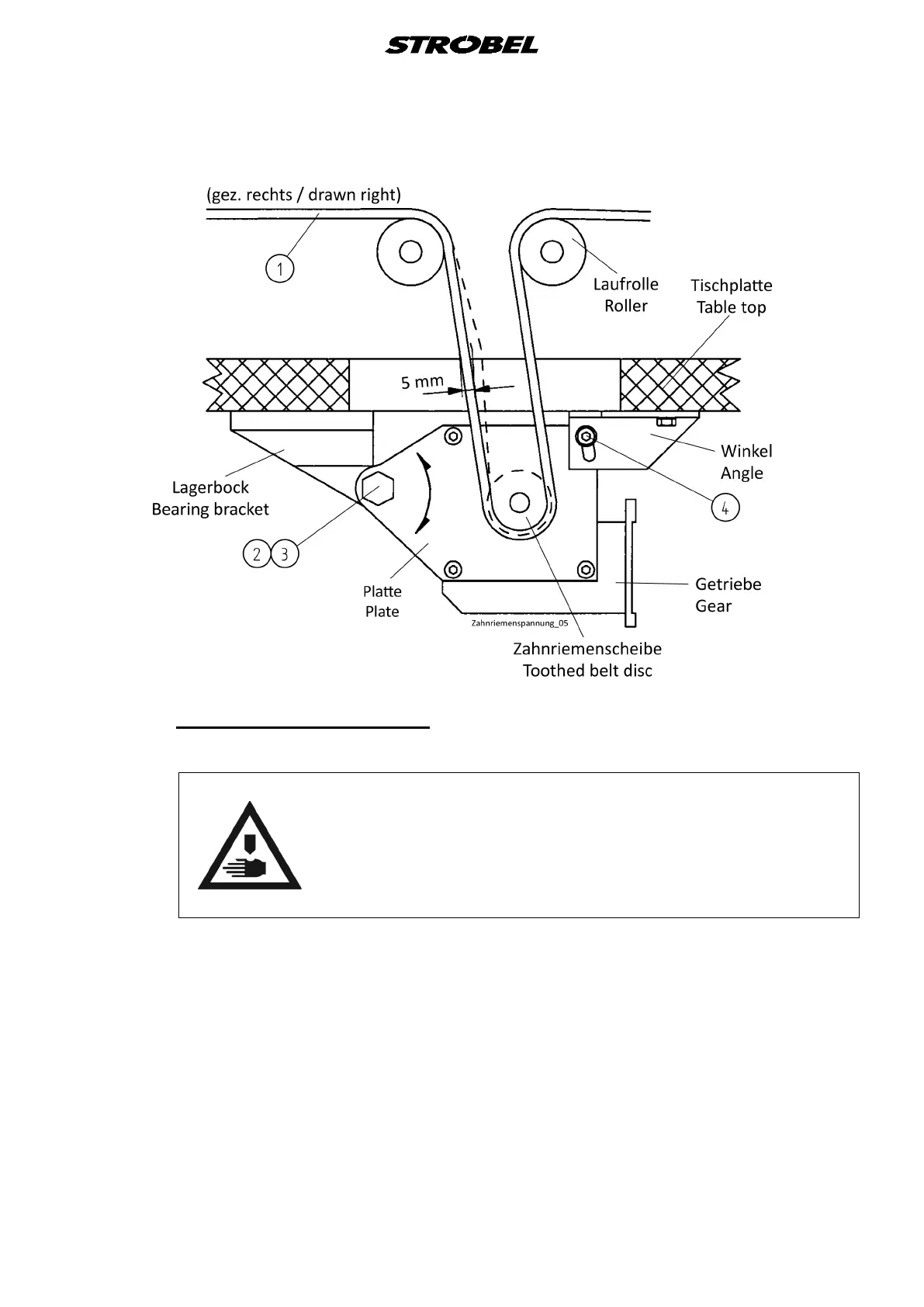

Fig. 4
3.4.3 Positions of the machine
CAUTION! Danger of injury!
Danger of injury by clothing or hair being drawn in as well as danger
of fingers being caught, and needle piercing!
When checking positions while the machine is turned on, keep
fingers and hands away from moving parts.
The machine needs a needle position and a reference position.
Reference position (Fig. 5):
The reference position needs to be set so that the needle's point is aligned with
the inner edge of the needle glide washers in the stitch-in direction.
