Strobel KA-ED - Thread Monitor

18 BA_KA-ED_A22_190313_en.doc
Fig. 7
4.3 Thread monitor
During the sewing in automatic sewing mode the sewing thread is monitored for
breakage. In case of a thread break the machine stops in the cutting position and the
yellow light L2 (Fig. 10) starts blinking.

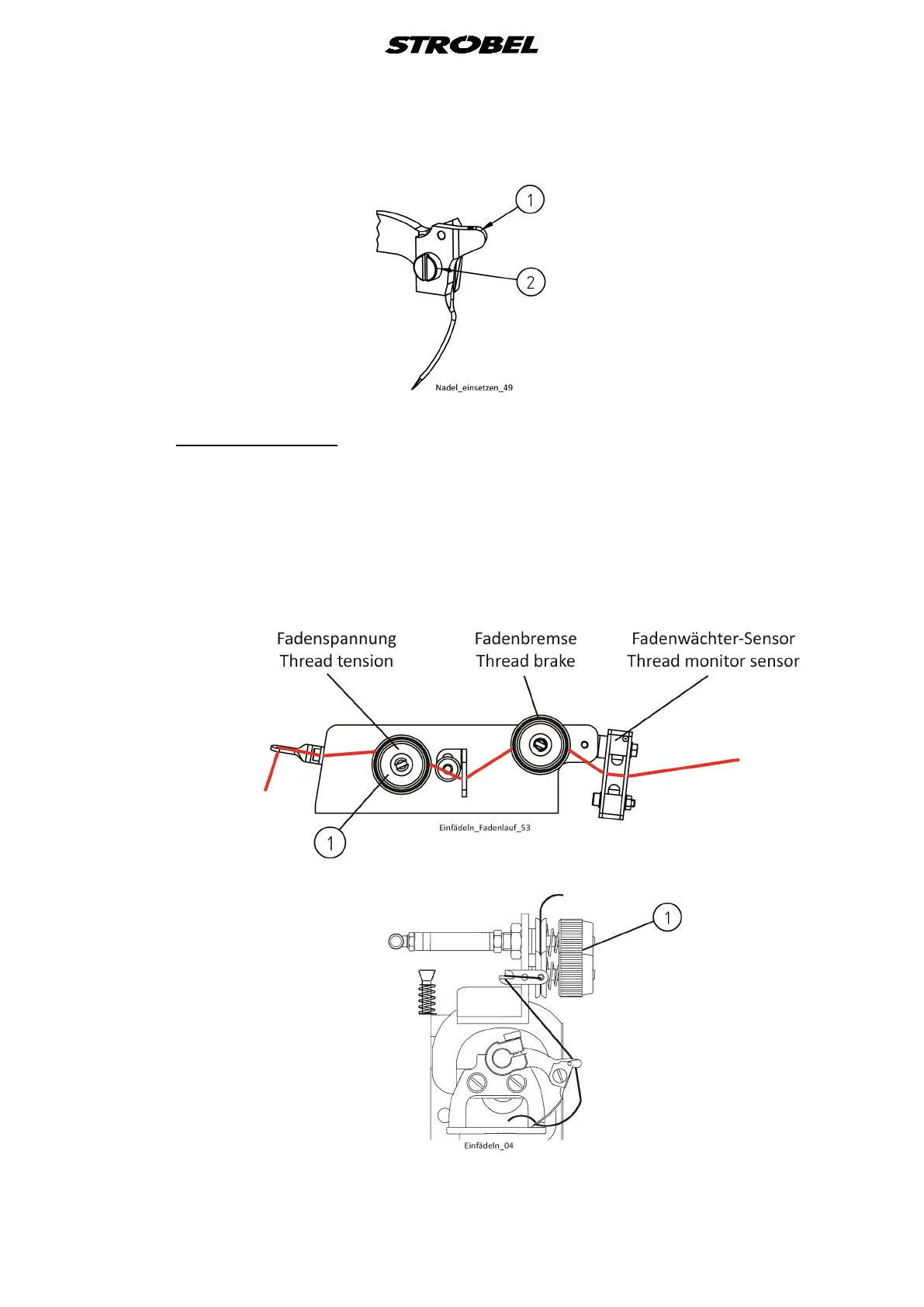

Thread controller consists of a sensor (Fig. 8a) that monitors the sewing thread.
Fig. 8
a)
b)
