4.9 Digital stitch depth display (Fig. 10)
The digital stitch depth display permits a very precise height setting of the plunger.
Changing a numerical value of the LC display corresponds to a height adjustment in
the plunger of 5/1000 mm. A complete revolution on the regulating knob results in a
change of the numerical value of exactly “100”. This way the complete revolutions can
be read on the left position of the LC display and on the middle and right position the
percentile of a complete rotation can be read.
The basic rule is:
small numerical value = thin material
greater numerical value = thicker material

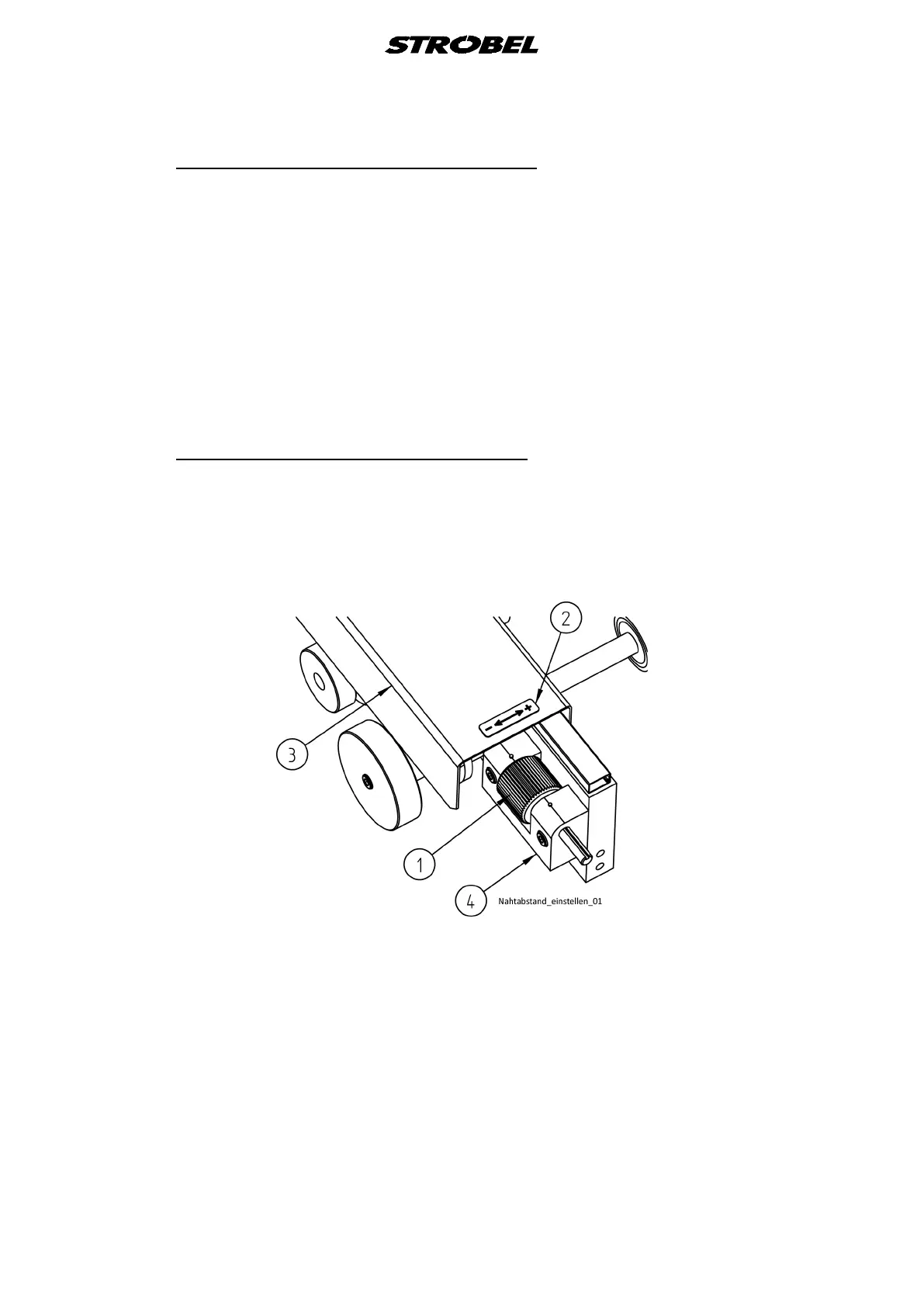

4.10 Setting the seam distance (Fig. 13)
The distance between the stitches can be freely set up to about 16 mm. The
adjustment is made on the front side of the carriage by the knurled nut (1) see point
“5.10.2 Setting the stitch distance (Fig. 13)“.
Fig. 13
