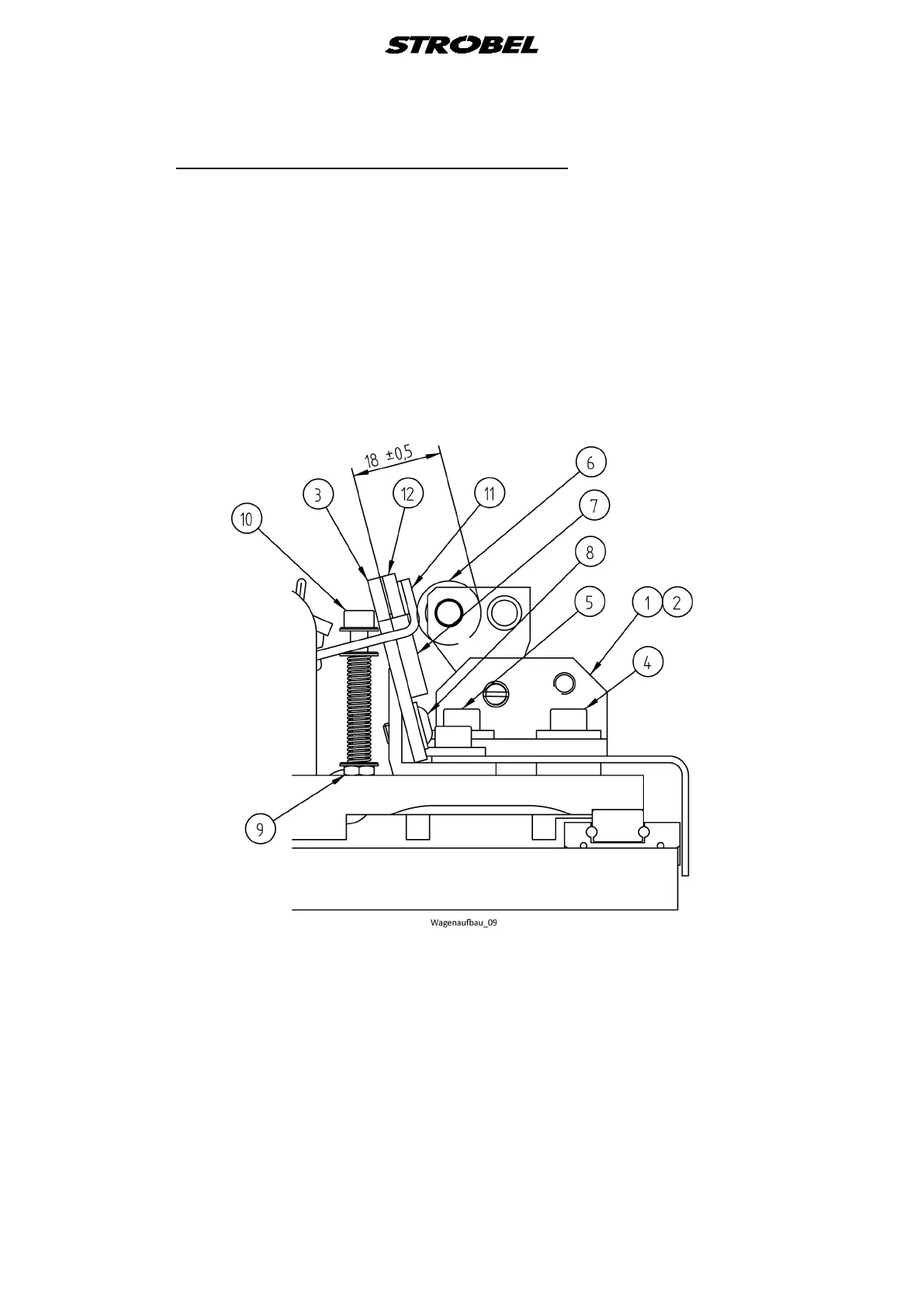

5.9.3 Surface pressure start-up reel (Fig. 28)
Different surface pressures for the start-up reel (6) (differential transport) against
foam rubber (7) on touch rail (3) are required for various materials.
Adjusting the surface pressure (Fig. 26):
- Unscrew hexagonal nut (14).
- Reset rounded countersunk head screw (22)
(turn clockwise to increase surface pressure).
- Refasten hexagonal nut.
Fig. 28
