5.6 Setting of end switch S2 (Fig. 22)
The end switch S2 is attached on the base plate under the fabric cavity.
The S2 end switch controls is the end position of the carriage.
The setting is done for the height by the two fastening screws (1). The roller of the
switch should still have about 0.5 mm between the roller lever and the switch housing.
The end switch is set properly to the side then when the tilt roller of the end switch is
located by about 10 mm on the stopper (2) at the end stop of the carriage.

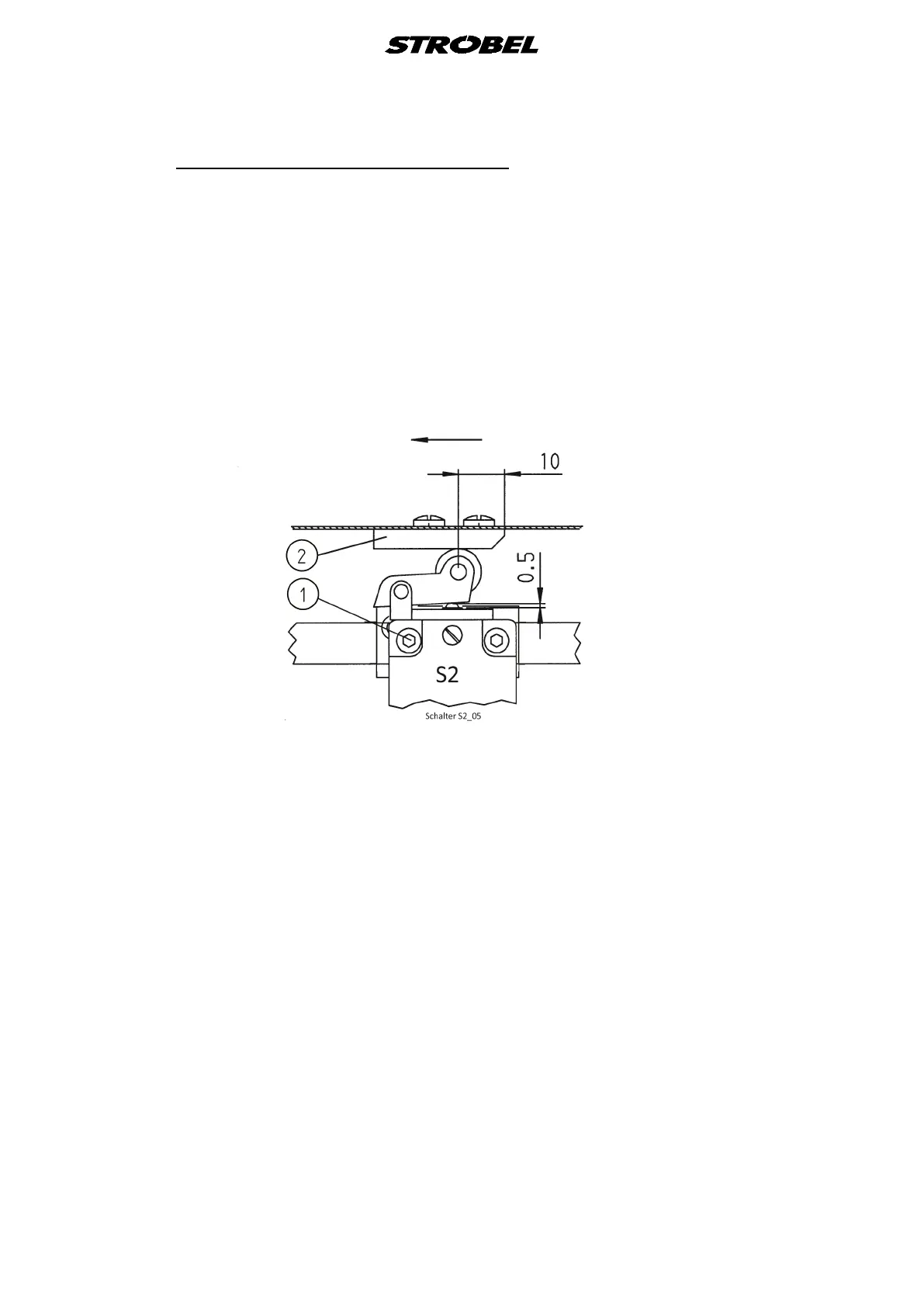

Fig. 22
NOTE!
On the left KA-ED - machine half the end switch is mounted in mirrored
position.
