5.10 Setting the stitch distance and length
5.10.1 Setting the side transport (Fig. 29)
Prerequisite for the adjustment of the side transport is the proper setting of the
Plunger lifting at the 1V1 solenoid (see point “5.3 Setting the plunger lifting (Fig. 18)”).
- Switch off main switch S0.
- Turn open block (1) on the piston rod of the cylinder (2) to dimension
10 mm and tighten with (3). Use knurled nut (4) to set maximum side transport.
- Use both exhaust throttle return valves (5) to reduce the speed of the cylinder
(2) so that beating sounds are avoided, but that the stroke movements are
carried out completely even at shortest stitch lengths. If the forward feed is too
fast, then there is a slippage during the side transport of the lapel; the maximum
stitch distance of 16 mm is not reached. At too slow stroke movement the stitch
distances shorten towards the lapel tip.

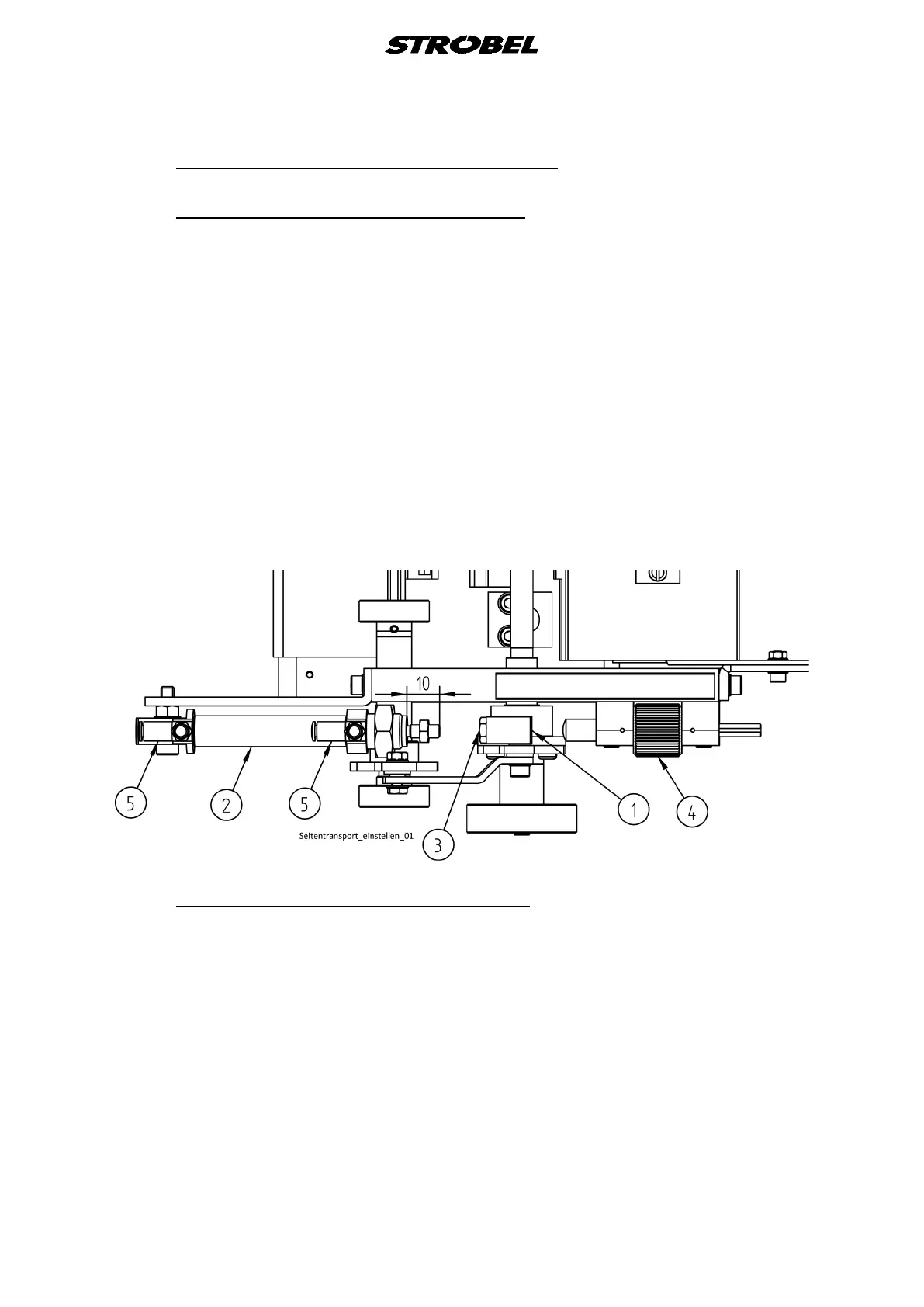

Fig. 29
5.10.2 Setting the stitch distance (Fig. 13)
Turn the knurled nut (1) in + or – direction (label (2) on lid (3) adjacent over knurled
nut); this increases or reduces the stitch distance.
