Strobel KA-ED - Machine maintenance guide

30 BA_KA-ED_A22_190313_en.doc
4.14 +Machine maintenance (Fig. 16a)
CAUTION! Danger of injury!
Switch off the machine's electric power. Otherwise there is a risk of
injury by crushing and needle piercing.
ATTENTION!
The machine must be oiled before first start. The maintenance
instructions according to the operating instructions must be
followed!
- Regular cleaning and lubricating of the machine is prerequisite for fault-free
operation, smooth running, and long service life. For non-stop operation the
machine head parts need to be oiled daily. The head cover has to be removed
for this. The lubrication points are marked in red.
- The mirror (1) and the reflective foil (2) need to be cleaned along the entire
length several times a day and be checked for damages.
- The reflection surfaces of the light barriers must be cleaned several times a day.
- The light barriers (3) on the light ray emitting side also need to be cleaned
several times a day.
- Once every half year the tooth-belt for the carriage drive needs to be checked
and retightened if necessary.
(See point “3.4.2 Checking the tooth-belt for the carriage drive”)

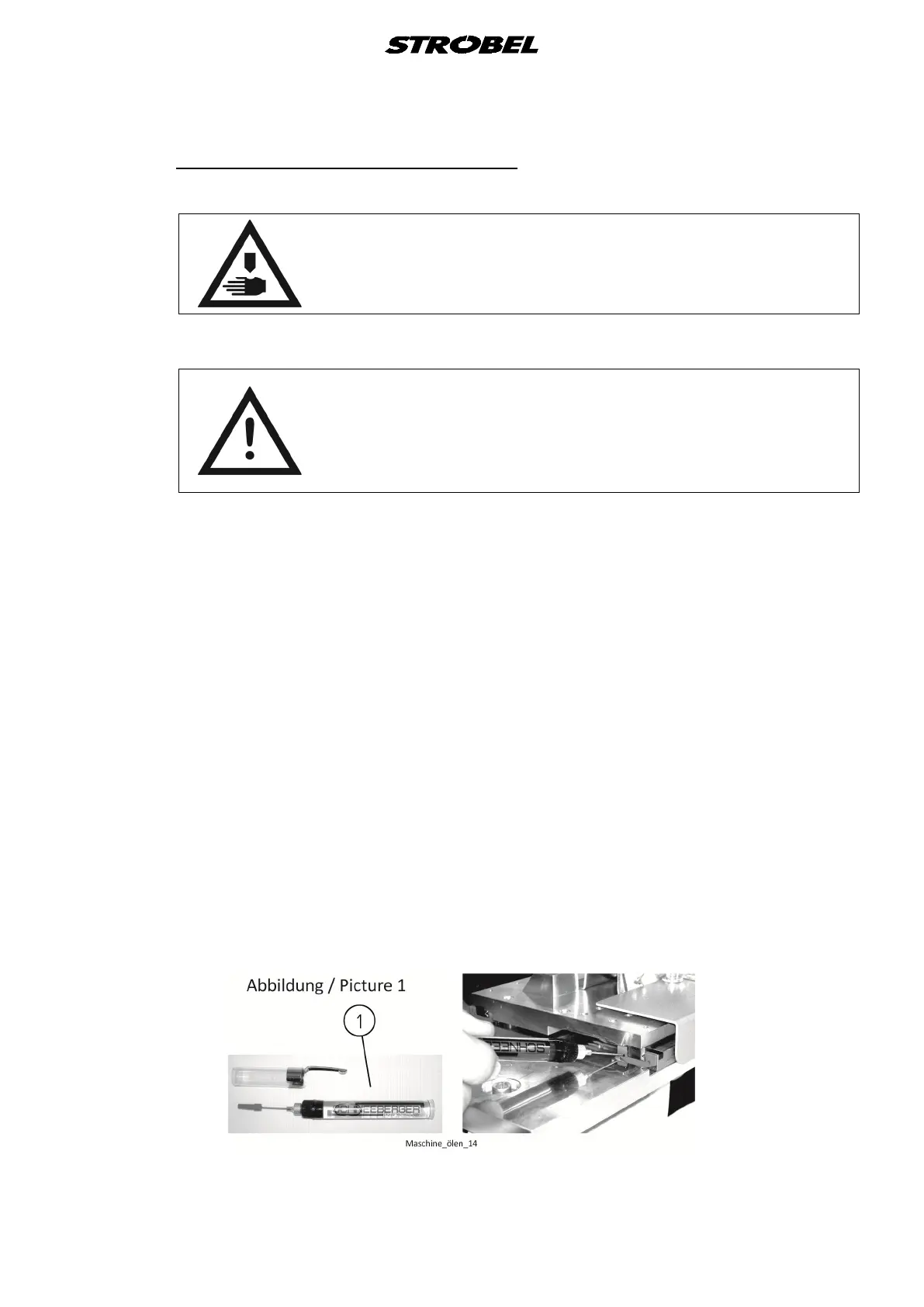

- Please lubricate the carriage guides (4X) ((4) Fig. 13) with enclosed special oil
picture 1 (in set (1) Fig. 15) every two months.
- Plunger do not need any maintenance.
Fig. 15
